Description
Long Travel Motorized Linear Stage 8MT295 series stages are designed to provide high-speed movement. Standard motors allow moving loads up to 60 kg. Load capacity can be increased using more powerful motors. This stage provides moderate resolution and accuracy. 8MT295 series stages are supplied equipped with 3P295 platform, 3BP295 bases plates (2 pc) and appropriate amount of 3SN195 inserts. Resolution and speed of 8MT295 series stages can be varied choosing appropriate ball screw pitch. Several standard options are available and should be specified upon ordering.
For applications requiring vertical Z axis movement, we suggest using stages with brake mounted on motor, to prevent carrier sliding down when motor current is turned off. Ordering code of Z stages is 8MT295Z, see ordering information below.

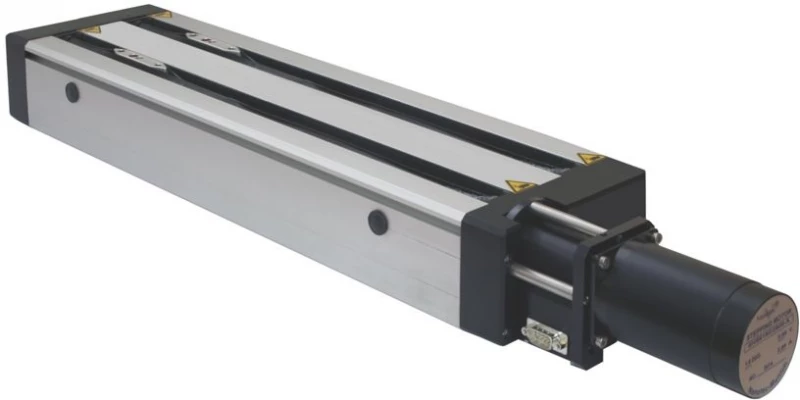

STANDA 8MT295X-340-2.5 - Long-Travel Motorized Linear Stages
Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 340 mm |
| Load Capacity (Horizontal): | 60 kg |
| Load Capacity (Vertical): | 10 kg |
| Max Speed: | 40 mm/s |
| Supply Voltage: | 36 V |
| Resolution: | 12.5 um |
Download Data Sheet
Features
* Long travel
* High resolution
* Motors of other types are available
Applications
For applications requiring vertical Z axis movement, we suggest using stages with brake mounted on motor, to prevent carrier sliding down when motor current is turned off. Ordering code of Z stages is 8MT295Z, see ordering information below.
Frequently Asked Questions
What is the load capacity of the 8MT295 series stages?
The standard motors allow moving loads up to 60 kg, but load capacity can be increased using more powerful motors.
What is the resolution and accuracy of the 8MT295 series stages?
This stage provides moderate resolution and accuracy, and the resolution and speed can be varied by choosing an appropriate ball screw pitch.
What is the recommended controller for the brake-equipped stage capabilities?
The 8SMC4-USB...-1BR controller is required to take advantage of the brake-equipped stage capabilities.
What is the ordering code for stages that require vertical Z axis movement?
The ordering code for stages that require vertical Z axis movement is 8MT295Z.
What accessories are included in the standard package?
The 3BP295 Base Plate, 3P295 Platform, and 3SN195 Slide Nut are all included in the standard package and should only be ordered as extra units.
