Description

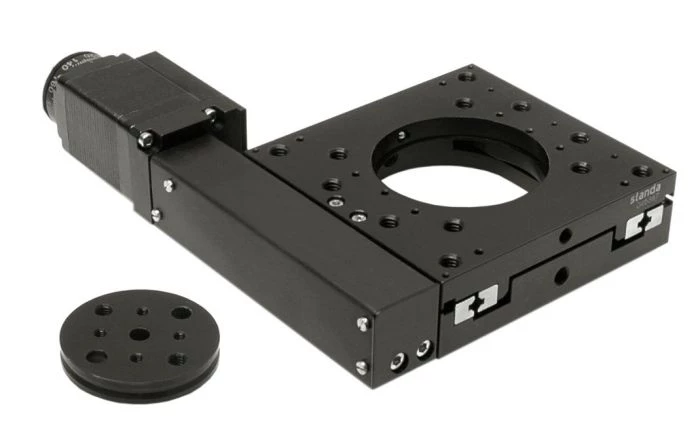

Motorized Translation Stages 8MT167-25BS1, unlike the 8MT167-25LS, is designed for high-speed movement. Used ball bearing lead screw makes movement fast and smooth. The positioner also can be used with microscope on XY axles. As shown in the pictures, the upper plate has a removable insert in the center, the size of which 2 inches, the base plate is made with slot size of 51 x 76 mm, on the same vertical. Linear Motor Positioning Stage provides high-resolution motion as well as high stability performance.
STANDA 8MT167-25LS - Linear Motor Positioning Stage
Specifications
| Axes Of Motion: | One |
|---|---|
| Travel Range: | 25 mm |
| Load Capacity (Horizontal): | 30 kg |
| Load Capacity (Vertical): | 7 kg |
| Max Speed: | 6 mm/s |
| Resolution: | 1.25 um |
Download Data Sheet
Features
* DC-motor-driven configuration is available with resolutions of 1 µm and 0.1 µm.
* High stiffness and thermal stability with a low profile design
* Manual version of Linear Positioning Stages
* Version for vacuum
Applications
Motion control
Frequently Asked Questions
What is the travel range of the STANDA 8MT167-25LS Linear Motor Positioning Stage?
The travel range of the STANDA 8MT167-25LS Linear Motor Positioning Stage is 25mm.
What is the resolution of the DC-motor-driven configuration of the Linear Motor Positioning Stage?
The DC-motor-driven configuration of the Linear Motor Positioning Stage is available with resolutions of 1 µm and 0.1 µm.
What is the maximum speed of the 8MT167-25LS?
The maximum speed of the 8MT167-25LS is 6mm/s.
What is the maximum load capacity of the 8MT167-25LS?
The maximum load capacity of the 8MT167-25LS is 30kg horizontally and 7kg vertically.
What type of actuator is used in the 8MT167CMA-25?
The 8MT167CMA-25 does not have a type of actuator specified, but it comes with an actuator 8CMA06-25/15.
