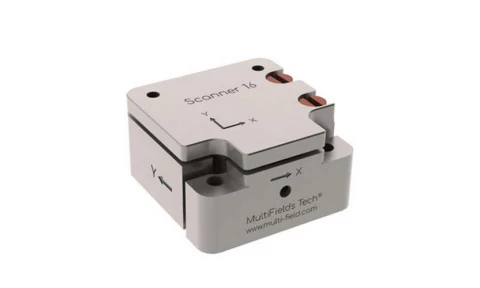

Scanner16-xy Low Temperature Piezo Smallest scanner stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications.

The piezo-linear stage features a closed-loop control system and supports  a built-in position sensing. It provides smooth and accurate movement. The Scanner16-xy is available in different versions, including low temperature,  vacuum options, catering to various application requirements.

Scanner16-xy: The Smallest Low-Temperature Piezoelectric Scanner Stage

Visit the Zolix Instruments CO.,LTD Store

Specifications

Axes Of Motion: One
Travel Range: 0.03 mm
Load Capacity (Horizontal): 0.4 kg
Load Capacity (Vertical): Not Specified
Max Speed: Not Specified
Weight: 0.08 kg
Guiding Mechanism: Other
Voltage Requirement: Other
Scanning Axies: X, Y
Resolution: 0.5 nm
Linearity Error: Typical ~ 0.1 %

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact design, dimensions: 16*16*7 mm
  • Ultra-high vacuum & very low temperature compatible: 2 E-11 mbar & 30 mK
  • Non-magnetic material Composed of pure Ti & BeCu, compatible with the 18 Tesla magnetic field
  • High loads: 100 g
  • Long travel range @300 K: 30*30 um
  • Position sensing up to 0.5 nm resolution

Applications

  • Precision positioning
  • Microscopy
  • Optics and photonics research
  • Semiconductor manufacturing
  • Life science applications
  • Metrology and inspection systems
  • Work in a cryostat

Frequently Asked Questions

What are the key features of the Scanner16-xy?
It features a compact design, ultra-high vacuum & very low-temperature compatibility, non-magnetic material composition, high loads, and long travel range.
What materials are used in the Scanner16-xy
The Scanner16-xy is composed of pure Ti & BeCu, making it compatible with 18 Tesla magnetic fields.
What are the dimensions of the Scanner16-xy?
The dimensions of the Scanner16-xy are 16167 mm.
What is the recommended resistance for the wires used with Scanner16-xy?
Though there's no strict requirement on wire conductance, it's recommended to have resistance below 50 ohm.
At what temperature is the Scanner16-xy operational?
The Scanner16-xy operates in a temperature range of 1.4 to 400 K.

Got more questions? Use the inquiry form to ask the supplier directly.
