Motorized Linear Stage LSA25A-T4-MC04
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's LSA Series Stages are meticulously engineered to deliver exceptional performance in the most space-constrained environments. These compact yet robust stages offer impressive speeds of up to 10 mm/s and a thrust capability of up to 3.5 kg. Designed with precision in mind, they feature a microstep size of less than 25 nm and boast repeatability of less than 1 μm, ensuring reliable and ultra-fine positioning for your applications.
The LSA series is equipped with a male D-sub 15 connector, facilitating a seamless plug-and-play experience with Zaber's X-MCB1 Series stepper motor controllers. These stages are designed to integrate smoothly into your setup, with optional accessories such as the AB106 angle bracket for vertical mounting. Our comprehensive kits include free software and all necessary accessories, enabling you to get the stage operational right out of the box.
With a focus on simplifying motion control, these stages are ideal for applications requiring high precision and compact form factors. The LSA stages are compatible with a variety of controllers, including any 2-phase stepper motor controller, making them a versatile choice for diverse motion control needs. Whether you're working in research, industrial automation, or any field that demands precise linear motion, the LSA series offers a reliable and efficient solution.

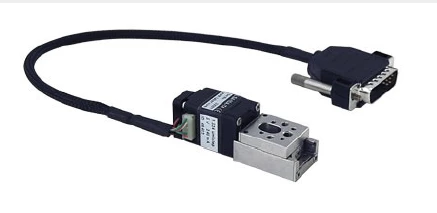

Motorized Linear Stage LSA25A-T4-MC04
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 25 mm |
| Load Capacity (Horizontal): | 3.5 kg |
| Load Capacity (Vertical): | 3.5 kg |
| Max Speed: | 10 mm/s |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
Features
- Compact Design: 10 or 25 mm travel, fits into the most restrictive spaces.
- Precision and Control: Less than 25 nm microstep size for ultra-fine positioning.
- High Performance: Up to 10 mm/s speed and up to 3.5 kg thrust.
- Versatile Mounting: Mounts directly in XY; requires AB106 angle bracket for Z axis/vertical mounting.
- Controller Compatibility: Designed for use with X-MCB1 Series stepper motor controller or any 2-phase stepper motor controller.
- Plug-and-Play: Wired with a male D-sub 15 connector for easy integration.
- Comprehensive Kits: Includes free software and all necessary accessories for immediate setup.
- Accurate and Reliable: Unidirectional accuracy of 24 µm and repeatability of less than 1 µm.
- Durable Construction: Ball bearing guide type with precision lead screw mechanical drive system.
- Environmental Compliance: RoHS and CE compliant.
- Lightweight: Weighs only 0.132 kg (0.291 lb).
Applications
- Microscopy: Enables precise focusing and sample positioning in limited space
- Laboratory Automation: Ideal for compact automated setups requiring fine motion control
- Optical Alignment: Provides repeatable, ultra-fine adjustments for optical components
- Precision Manufacturing: Supports tasks demanding small, accurate incremental movements
Frequently Asked Questions
The LSA series stages have a travel range of either 10 mm or 25 mm.
The LSA series stages have a microstep size of less than 25 nm.
The LSA series stages have a maximum speed of 10 mm/s.
The LSA series stages have a maximum thrust of 3.5 kg.
The LSA series stages use a stepper motor (2 phase) with a NEMA 08 frame size.
