Closed-Loop Motorized XY Scanning Stage ASR050B050B-E03T3
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Description
Zaber's ASR Series Microscope Stages offer a sophisticated solution for those seeking to enhance their microscopy applications with precision and ease. Designed to replace manual stages on both upright and inverted microscopes, these stages are also perfectly suited for standalone operation as scanning stages. The integration with the X-MCB2 series two-axis controllers ensures seamless control and adaptability, making it a versatile choice for various scientific and industrial settings.
One of the standout features of the ASR series is its compatibility with multiple mounting options. Whether you are working with breadboards or common microscopes, the availability of mounting adaptors ensures a straightforward setup. For those with unique requirements, custom adaptors and plates can be requested, allowing for tailored solutions that fit specific needs.
The ASR series is engineered with precision in mind. With travel ranges from 50 mm up to 305 mm per axis, these stages provide the flexibility needed for detailed and expansive examinations. The non-contact hall sensor limit switches are easily adjustable, enhancing both the accuracy and repeatability of your operations. With up to 12 µm accuracy, 2 µm repeatability, and speeds reaching 85 mm/s, the ASR series is a robust choice for any microscopy automation and image analysis task.

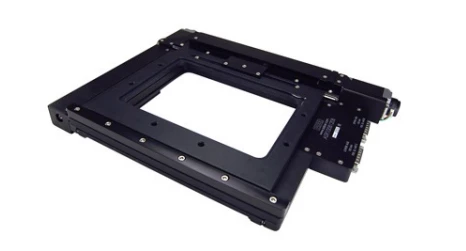

Closed-Loop Motorized XY Scanning Stage ASR050B050B-E03T3
Specifications |
|
|---|---|
| Axes Of Motion: | Two |
| Travel Range: | 50 mm |
| Load Capacity (Horizontal): | 9.5 kg |
| Load Capacity (Vertical): | 9.5 kg |
| Max Speed: | 85 mm/s |
| Guiding Mechanism: | Crossed Roller Slides |
| Travel Per Axis: | 50 mm up to 305 mm |
| Accuracy: | 12 µm |
| Repeatability: | 2 µm |
| Maximum Speed: | 85 mm/s |
| Microstep Size (Default Resolution): | 0.15625 µm |
| Recommended Controller: | X-MCB2 (48 V) |
| Backlash: | < 4 µm |
| Flatness: | 8 µm |
| Minimum Speed: | 0.000095 mm/s |
| Speed Resolution: | 0.000095 mm/s |
| Guide Type: | Crossed roller bearing |
| X Travel Range: | 50 mm |
| Y Travel Range: | 50 mm |
| Weight: | 1.82 kg |
Features
- Travel Range: 50 mm to 305 mm per axis
- Adjustable Limit Switches: Easily adjustable non-contact hall sensor limit switches
- Precision and Speed: Up to 12 µm accuracy, 2 µm repeatability, and 85 mm/s speed
- Software Compatibility: Supported by µManager and MetaMorph® Microscopy Automation & Image Analysis Software
- Application: Designed for use with upright and inverted microscopes or as stand-alone scanning stages
- Mounting Options: Adaptors available for breadboards and most common microscopes; custom adaptors and plates available upon request
- Microstep Size: 0.15625 µm (default resolution)
- Recommended Controller: X-MCB2 (48 V)
- Encoder Type: Motor-mounted rotary quadrature encoder
- Thrust Capacity: 95 N (21.3 lb) peak and continuous thrust
- Guide Type: Crossed roller bearing
- Motor Specifications: Stepper (2 phase), 670 mA/phase, 9.2 ohms/phase resistance
Applications
- Microscopy Automation: Ideal for automated imaging workflows in life science and materials research.
- Scanning and Imaging Systems: Enables precise scanning for fluorescence, confocal, and multiphoton microscopy.
- Inspection and Metrology: Suitable for precise sample positioning in industrial inspection and quality control setups.
- Research and Development: Enhances experimental repeatability and efficiency in laboratory environments.
Frequently Asked Questions
The ASR050B050B-E03T3 stage is designed as a replacement for manual stages on upright and inverted microscopes or for stand-alone operation as scanning stages.
The ASR050B050B-E03T3 stage has a travel range of 50 mm up to 305 mm per axis.
The ASR050B050B-E03T3 stage has up to 12 µm accuracy and 2 µm repeatability.
The ASR050B050B-E03T3 stage has a maximum speed of 85 mm/s.
The ASR050B050B-E03T3 stage is supported by µManager and MetaMorph® Microscopy Automation & Image Analysis Software.
