Description

The Gentec-EO HP280A-30KW-HD-IMP-D0 is a high-power detector designed for laser power measurement up to 30,000 W. With traceable calibration and award-winning technology, this wireless detector ensures accurate and reliable readings.

 Its compact design, coupled with BLU wireless output, allows measurements in enclosures or hard-to-reach areas. The NIST-traceable calibration provides a certificate for valid comparisons, compliance with regulations, and improved confidence in laser systems.

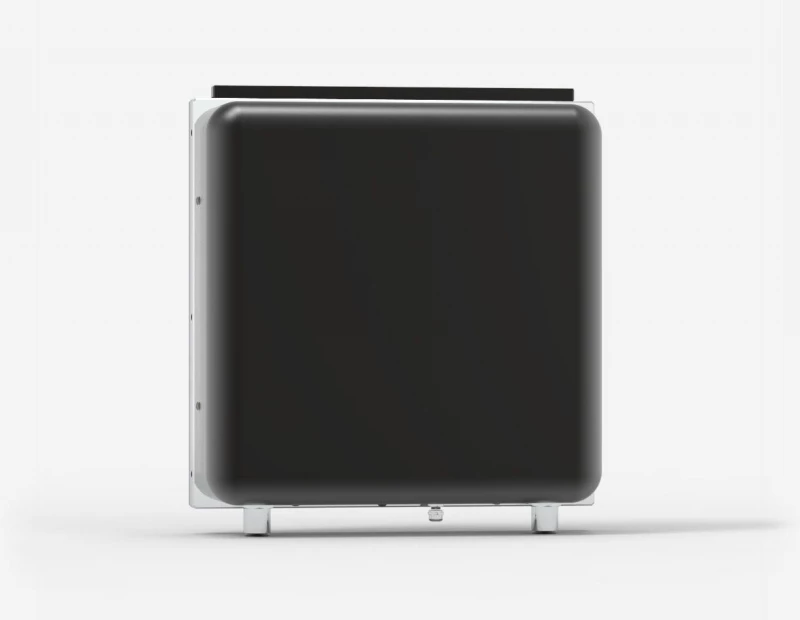

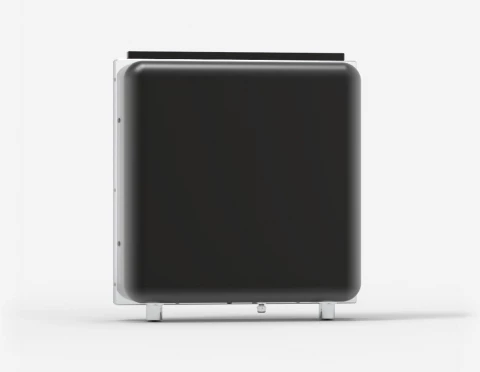

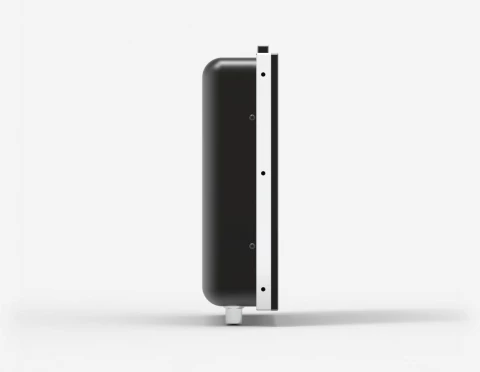

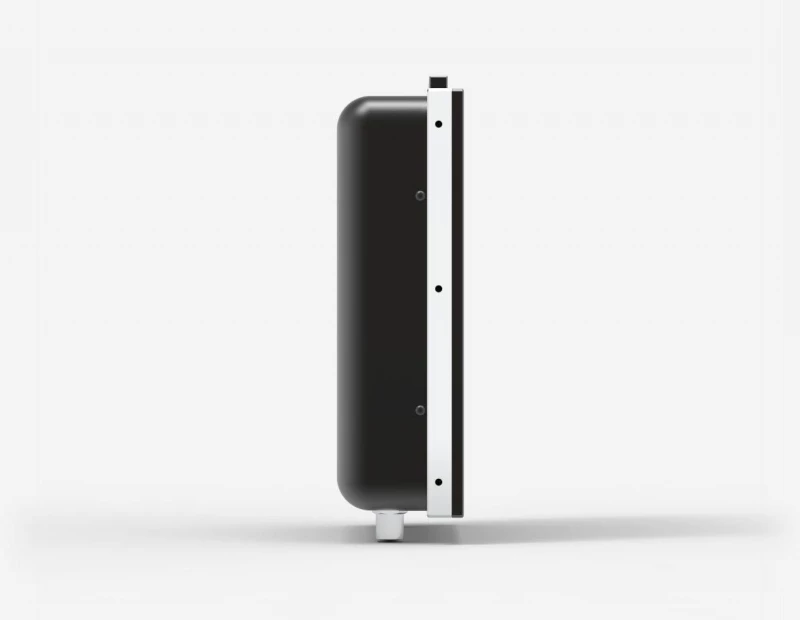

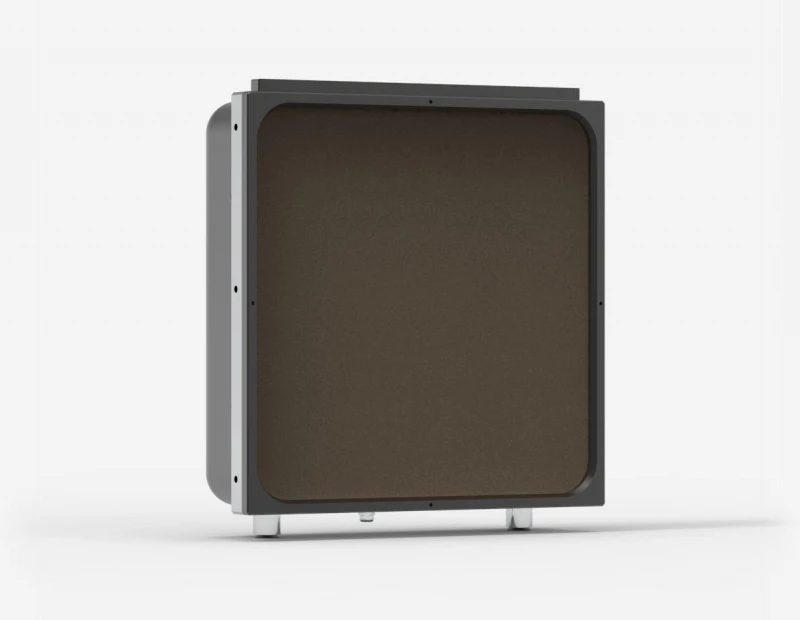

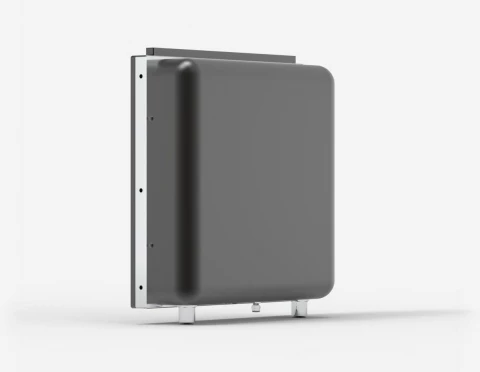

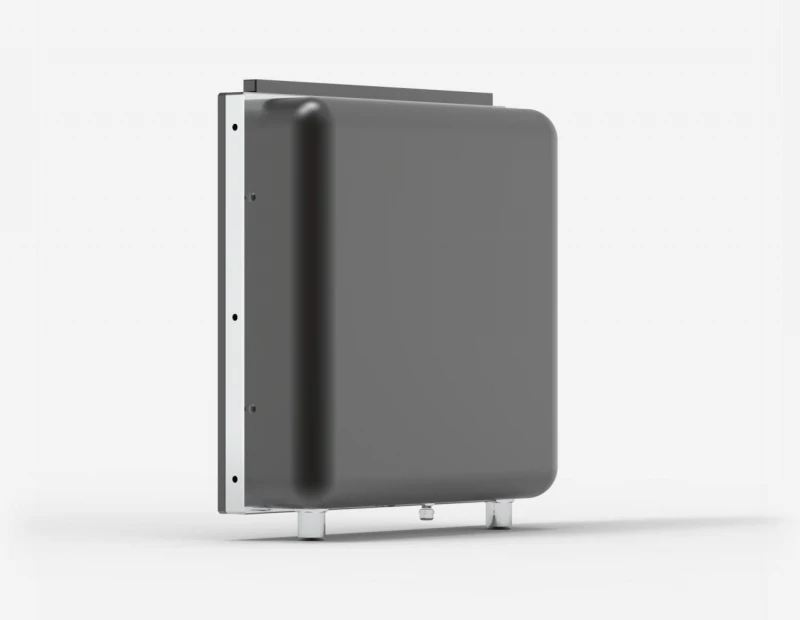

HP280A-30KW-HD-IMP-D0 High Power Laser Detector

Visit the Gentec-EO Store

Specifications

Max Average Power: 30000 W
Effective Aperture: 280 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Water
Minimum Average Power: 1000 W
Noise Equivalent Power: 30 W
Typical Rise Time: 25.4 s
Power Calibration Uncertainty: ±5 %
Repeatability: ±2 %
Back Reflections: ~15 %
Linearity With Power: ±2 %
Required Cooling Flow: 0-30 kW: (15 - 18) LPM < ±1 LPM/min, 0-10 kW: (12 - 15) LPM < ±1 LPM/min
Temperature Range: 15-25 ℃
Rate Of Temperature Change: < ±3°C/min
Maximum Water Pressure: 552 kPa (80 psi)
Maximum Average Power Density: 6.5 kW/cm²
External Power Supply: Through USB or Gentec-EO displays & PC interfaces
Absorber: HD
Dimensions: 314H x 324W x 89D mm
Weight: 16 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Power Measurement: Handles laser power up to 30,000 W
  • Wireless Capability (BLU): Award-winning BLU technology enables wireless data retrieval up to 30 m
  • Traceable Calibration: NIST-traceable calibration for reliable and accurate measurements
  • Award-Winning Technology: Recognized at the 2020 Laser Focus World Innovators Awards
  • Measurement Capabilities: Minimum average power, noise equivalent power, spectral range, rise time, and more
  • Water Requirements: External water filter options available for efficient cooling

Applications

  • High-Power Laser Systems: Ideal for applications requiring accurate measurement of laser power up to 30,000 W
  • Enclosed Spaces: BLU wireless technology allows measurements in enclosures or remote locations

Frequently Asked Questions

What is the Gentec-EO SUPER HP High Power Solutions used for?
It is designed for measuring high-power laser output power in a broad spectral range.
What is the highest power handling of the custom models?
Custom models can handle up to 100,000 W of continuous power.
What is the calibration uncertainty for YAG and CO2 wavelengths?
All HP Models can be calibrated at YAG and CO2 wavelengths with a calibration uncertainty of ±5%.
What is the effective aperture for the HP280A-30KW-HD model?
The effective aperture for the HP280A-30KW-HD model is 280 x 280 mm.
What is the damage threshold for the HP280A-30KW-HD model?
The maximum average power density for the HP280A-30KW-HD model is 0.2 kW/cm2.
