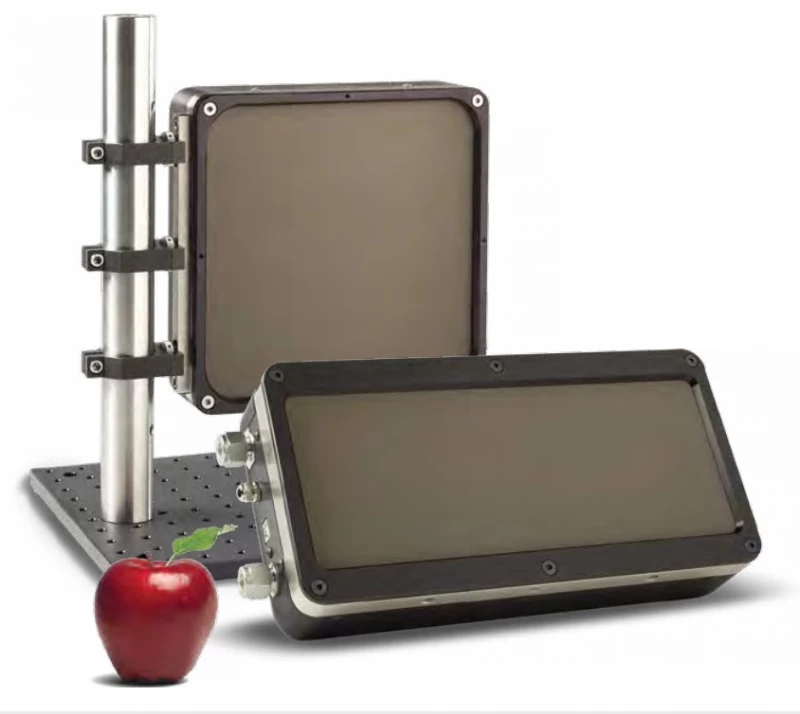

Thumbnail of HP Laser Power Detector HP210A-25KW-HD photo 1

Description

The Gentec-EO Super HP Laser Power Detector is a high-power solution for accurate laser power measurement. With customizable models handling up to 100,000 W of continuous power, it offers stability in readings, especially in water cooling variations. Its compact and lightweight design, unique to the market, comes with infinite customization possibilities, allowing you to choose size, maximum power, and more.

The detector is available with YAG and CO2 calibrations, providing reliable measurements with a calibration uncertainty of ±5%. Equipped with a direct USB connection to a PC, it offers user-friendly software features such as live mode, histogram, and FFT display for temporal diagnostics.

HP Laser Power Detector HP210A-25KW-HD

Visit the Gentec-EO Store

Specifications

Max Average Power: 25000 W
Effective Aperture: 210 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Water
Noise Equivalent Power: ±20 W
Minimum Average Power: 500 W
Rise Time (nominal): 25 sec
Sensitivity (typ Into 100 KΩ Load: 0.08 mV/W
Absorber (High Damage Threshold): HD
Temperature Of Cooling Wate: (15 - 25) °C < ±1°C/min
Output Connectors: DB-15 cable & USB port
Dimensions: 229H x 229W x 80D mm
Weight (head Only: 16.3 kg
PCB Electrical Supply: Through USB or Gentec-EO monitors

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Highest Power Handling: Custom models handle up to 100,000 W of continuous power
  • Stable Reading: Less sensitive to variations in water cooling temperature than competitors
  • Infinite Customization: Choose your size, maximum power, and customize according to your needs
  • Compact and Lightweight: Unique design for a lighter and more compact high-power detector
  • YAG and CO2 Calibrations: Calibrated at YAG and CO2 wavelengths with ±5% uncertainty
  • Direct USB Connection: Connect directly to a PC for efficient data transfer.\
  • User-Friendly Software: Live mode, histogram, FFT display, and life test mode for laser testing

Applications

  • Precision Laser Power Measurement: Handles up to 100,000 W of continuous power
  • Temporal Diagnostics: Live mode, strip chart, histogram, and FFT display for detailed analysis
  • Automated Laser Testing: Life test mode for assessing laser performance

Frequently Asked Questions

What is the Gentec-EO SUPER HP High Power Solutions used for?
It is designed for measuring high-power laser output power in a broad spectral range.
What is the highest power handling of the custom models?
Custom models handle up to 100 000 W of continuous power.
Is the Gentec-EO SUPER HP High Power Solutions sensitive to variations in water cooling temperature?
It is less sensitive to variations in water cooling temperature than any other high power water-cooled meter on the market.
What is the calibration uncertainty of the HP Models at YAG and CO2 wavelengths?
All HP Models can be calibrated at YAG and CO2 wavelengths with a calibration uncertainty of ±5%.
What physical characteristics does the Gentec-EO SUPER HP High Power Solutions have?
It has effective apertures of 280 x 100 mm, 210 x 210 mm, and 280 x 280 mm, with square apertures up to 400 x 400 mm and rectangular and round apertures also available. It requires a cooling flow of (6 - 10) LPM or f(12 - 15) LPM, depending on the model.

Got more questions? Use the inquiry form to ask the supplier directly.
