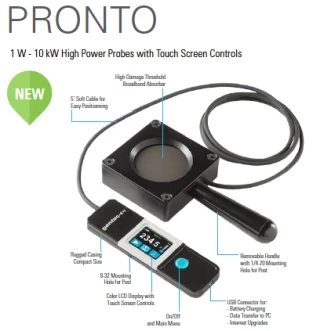

PRONTO-6K High Power Probes With Touch Screen Controls

Name: PRONTO-6K High Power Probes With Touch Screen Controls
Brand: Gentec-EO

Description

About Gentec-EO: Gentec Electro-Optics is specialized in laser beam and terahertz source measurement and analysis. Gentec-EO is an expert in the design and manufacture of light detection and measurement technologies and solutions with a 50-year history in the market. Gentec\'s offerings include laser beam profilers, detectors, power and energy meters, power and energy measurement displays, and more.

Product Description: Gentec-EO 1 W - 10 kW High Power Probes with Touch Screen Controls are user-friendly making your laser energy and power measurement smooth and easy.

Specifications

Max Average Power:	6000 W
Effective Aperture:	55 mm
Spectral Range:	0.19 – 20 um
Cooling Method:	Convection

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

1. WIDE POWER RANGE
Very low noise level = wide power range with just one device

2. CONTINUOUS READINGS AT LOW POWERS
The Pronto-500 includes a continuous power mode (CWP) for measurements up to 40 W.

3. NO-WAIT MEASUREMENTS
5 seconds measurements allow for very short cooling time (all models except PRONTO-3K)

4. EASY-TO-USE
The touch screen color LCD allows for a friendly user interface. You can make a measurement with just the
touch of a button!

5. DATA LOGGING
Save your data to the internal memory and then transfer it to your PC over the USB connection.

6. LARGE APERTURE
55 mm Ø aperture to accommodate large beams

7. RUGGED

Applications

Laser energy and power meter with built-in controls used in laser optics, metrology, inspection, academic, spectroscopy, biomedical, and other applications.

Request Quote

To: Gentec-EO
Re: PRONTO-6K High Power Probes With Touch Screen Controls

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: Canada
Sold by:: Gentec-EO ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the Pronto-6K High Power Probe?

The Pronto-6K High Power Probe is a laser energy and power meter with built-in controls used in laser optics, metrology, inspection, academic, spectroscopy, biomedical, and other applications.

What are the features of the Pronto-6K High Power Probe?

The Pronto-6K High Power Probe features a wide power range, continuous readings at low powers, no-wait measurements, easy-to-use touch screen controls, data logging, large aperture, and rugged all-metal body with high damage thresholds.

What is the effective aperture of the Pronto-6K High Power Probe?

The effective aperture of the Pronto-6K High Power Probe is 55 mm Ø.

What is the maximum average power of the Pronto-6K High Power Probe?

The maximum average power of the Pronto-6K High Power Probe is 6,000 W in SSP mode (measures power in 5 sec) and N/A in CWP mode (measures power continuously).

What is the measurement capability of the Pronto-6K High Power Probe?

The measurement capability of the Pronto-6K High Power Probe includes a spectral range of 0.19 – 20 μm, calibrated spectral range of 0.248 - 2.5 μm and typical 10.6 μm, noise equivalent power of 20 W, response time of 5 sec, and calibration uncertainty of ±5 %.
