Description
The Gentec-EO PRONTO-500 is a versatile and portable laser power meter designed for precise and convenient laser power measurements in a wide range of applications.
This compact laser power meter is capable of measuring laser powers up to 500 W, making it an essential tool for professionals in research, industry, and laser-based fields.
With its user-friendly features and high-performance capabilities, the PRONTO-500 ensures accurate and reliable power measurements on the go.

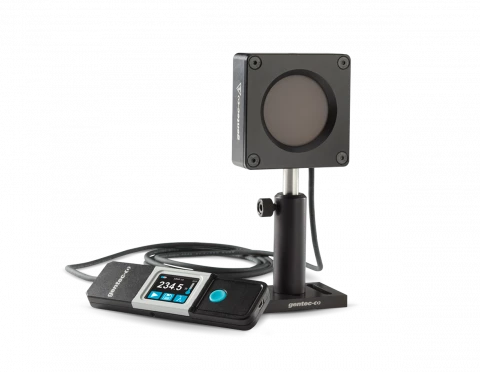

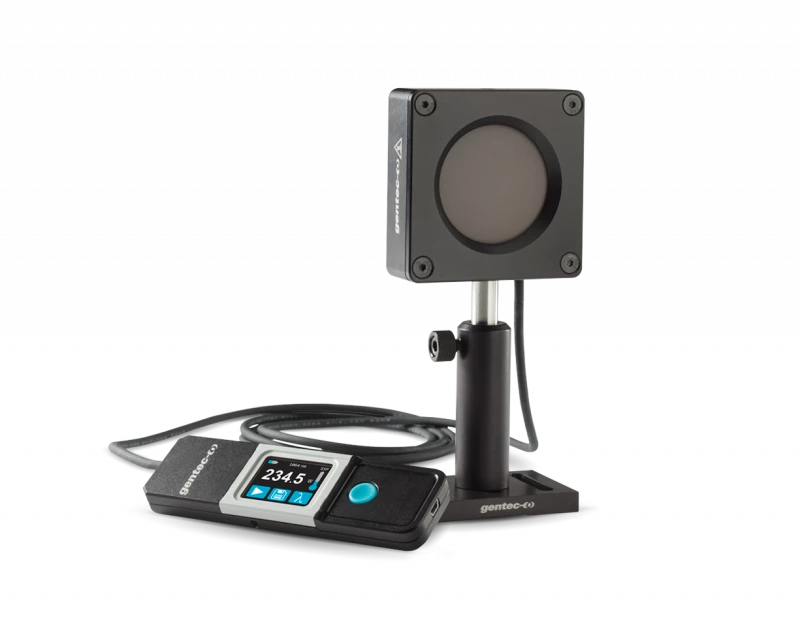

Gentec-EO PRONTO-500 Portable Laser Power Meter
Specifications
Max Average Power: | 500 W |
---|---|
Effective Aperture: | 55 mm |
Spectral Range: | 0.19 – 20 um |
Cooling Method: | Convection |
Minimum Average Power: | 1 W |
Noise Equivalent Power: | 0.12 W |
Power Calibration Uncertainty: | ±3 % |
Exposure Time: | 5 s |
Maximum Average Power (continuous): | 40 W |
Response Time: | 2 s |
Maximum Average Power Density: | 25 kW/cm² |
Maximum Allowable Casing Temperature: | 65 °C |
Battery Type: | Rechargeable Li-ion |
Battery Life: | 17 hours or 4,200 measurements (with brightness set at 25%) |
Display Resolution: | 4 digits |
Display Size: | 28.0 x 35.0 mm (128 x 160 pixels) |
Display Type: | Touch Screen Color LCD |
Backlight: | Adjustable |
Internet Upgrades Via: | USB |
Data Storage: | 50,000 pts |
Battery Recharge Via: | USB |
Absorber: | H |
Dimensions: | 88W x 88L x 32D |
Weight: | 0.93 kg |
Mounting Holes: | 1 x 8-32, 2 x 1/4-20 |
Features
- Wide Power Range: Measures laser power from 1 W to 500 W, accommodating a broad spectrum of laser systems
- High Precision: Offers a low noise equivalent power of just 0.1 W, ensuring accurate measurements even at low power levels
- Versatile Spectral Range: Covers the spectral range from 0.193 to 20 μm for compatibility with various laser sources
- Calibration Certainty: Features a power calibration uncertainty of only ±3% for reliable and traceable measurements
- Continuous Power Mode: Supports continuous power measurements with an exposure time of 5 seconds
- Portable Design: Compact and lightweight, the PRONTO-500 is ideal for fieldwork and on-site laser power measurements
Applications
- Industrial Laser Systems: Used for monitoring and optimizing laser processes in industrial settings
- Research and Development: Essential for laser characterization and experimentation.
- Laser Manufacturing: Ensures laser systems operate at the desired power levels during production
- Fieldwork and On-Site Testing: Portable design allows for convenient power measurements in the field
- Quality Control: Ensures the quality and performance of laser systems in manufacturing and research
Frequently Asked Questions
What is the power range of the PRONTO-500 High Power Probes?
The PRONTO-500 High Power Probes have a wide power range from 1 W to 10 kW.
Does the PRONTO-500 High Power laser power meter have a continuous power mode?
Yes, the PRONTO-500 High Power Probes include a continuous power mode (CWP) for measurements up to 40 W.
Is the PRONTO-500 laser power meter easy to use?
Yes, the PRONTO-500 High Power Probes have touch screen color LCD that allows for a friendly user interface. You can make a measurement with just the touch of a button!
Can I save my data with the PRONTO-500 High Power Probes?
Yes, you can save your data to the internal memory and then transfer it to your PC over the USB connection.
What is the effective aperture of the PRONTO-500 High Power Probes?
The PRONTO-500 High Power Probes have an effective aperture of 55 mm Ø to accommodate large beams.
