Description

The PRONTO-10K is a highly versatile and portable laser power meter designed for measuring laser power with exceptional precision. With the capability to measure power levels of up to 10,000 W, this device is an essential tool for laser professionals.

It features advanced electronics, data logging capabilities, and a USB connection for data transfer and battery charging. The PRONTO-10K replaces the discontinued FLASH series, offering improved performance, more calibration points, and quick 5-second measurements (except PRONTO-3K model), allowing for minimal cooling time.

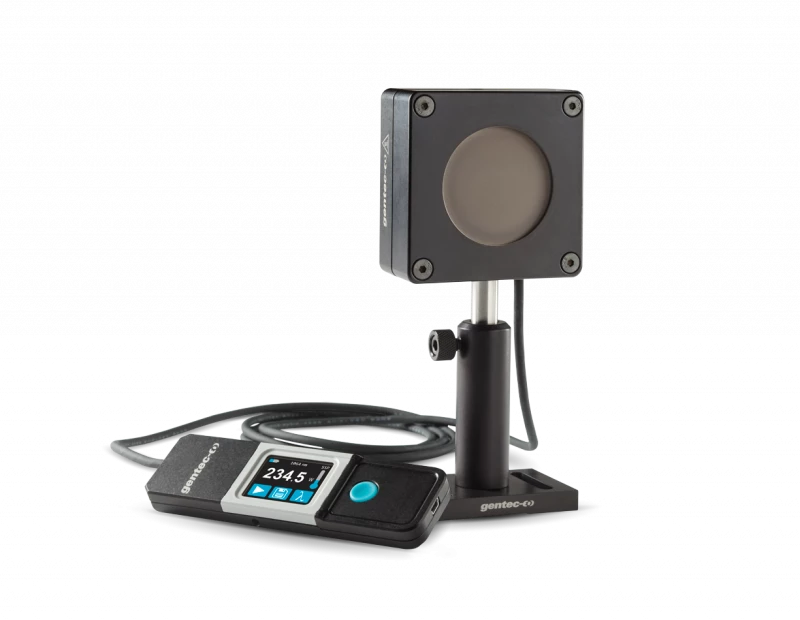

PRONTO-10K Portable Laser Power Meter

Visit the Gentec-EO Store

Specifications

Max Average Power: 10000 W
Effective Aperture: 55 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Convection
Minimum Average Power: 30 W
Noise Equivalent Power: 30 W
Power Calibration Uncertainty: ±5 %
Exposure Time: 5.0 s
Response Time: 5 s
Maximum Average Power Density: 7 kW/cm²
Maximum Allowable Casing Temperature: 75 °C
Battery Type: Rechargeable Li-ion
Battery Life: 17 hours or 4,200 measurements (with brightness set at 25%)
Display Resolution: 4 digits
Display Size: 28.0 x 35.0 mm (128 x 160 pixels)
Backlight: Adjustable
Internet Upgrades Via: USB
Data Storage: 50,000 pts
Battery Recharge Via: USB
Absorber: H
Dimensions: 88W x 88L x 46D mm
Weight: 2.15 kg
Mounting Holes: 1 x 8-32, 2 x 1/4-20

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wide Power Range: Measures power levels up to 10,000 W
  • Quick Measurements: Provides fast 5-second measurements (except PRONTO-3K model)
  • Low Noise Level: Ensures accurate readings even in high-power applications
  • User-Friendly Interface: Features a color touch screen display for easy operation
  • Large Aperture: Equipped with a 55 mm aperture to accommodate large beams
  • Rugged Design: Built with an all-metal body and high damage thresholds
  • Data Logging: Allows data logging and data transfer to a PC
  • Compatibility: Compatible with various stands and accessories

Applications

  • Ideal for professionals working with lasers up to 10,000 W
  • Suitable for a wide range of laser power measurement applications
  • Quick measurements with short cooling times make it suitable for time-sensitive task

Frequently Asked Questions

What is the power range of the PRONTO-10K High Power Probes?
The PRONTO-10K High Power Probes have a power range of 1 W - 10 kW.
Does the PRONTO-500 laser power meter include a continuous power mode?
Yes, the PRONTO-500 includes a continuous power mode (CWP) for measurements up to 40 W.
What is the response time of the PRONTO-6K laser power meter?
The response time of the PRONTO-6K is 5 seconds.
Can data be saved to the internal memory of the PRONTO-10K High Power Probes?
Yes, data can be saved to the internal memory of the PRONTO-10K High Power Probes and then transferred to a PC over the USB connection.
What is the maximum allowable absorber temperature for the PRONTO-3K power meter?
The maximum allowable absorber temperature for the PRONTO-3K is 65 °C.

Got more questions? Use the inquiry form to ask the supplier directly.
