Photo Detector PRONTO-Si

Name: Photo Detector PRONTO-Si
Brand: Gentec-EO

Description

About Gentec-EO: Gentec Electro-Optics is specialized in laser beam and terahertz source measurement and analysis. Gentec-EO is an expert in the design and manufacture of light detection and measurement technologies and solutions with a 50-year history in the market. Gentec\'s offerings include laser beam profilers, detectors, power and energy meters, power and energy measurement displays, and more.

Product Description: Pronto-Si is a Si detector used for 0.3 nW - 800 mW laser power detection. It has a power probe and a touch screen with controls making it the most user friendly product on the market for your demanding requirements for laser beam detection and characterization.

Specifications

Max Average Power:	0.8 W
Effective Aperture:	10 mm
Spectral Range:	0.32 – 1.1 um
Cooling Method:	No cooling

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

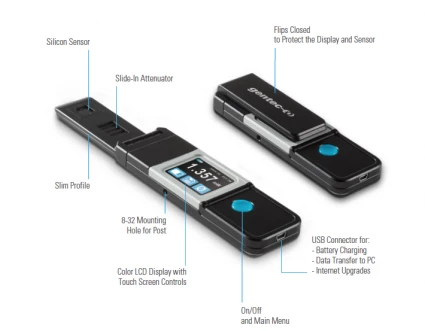

Features

1. POCKET-SIZE
This low power laser probe is so compact it fi ts in your pocket!

2. SLIM PROFILE
The sensor part is only 6 mm thick, allowing it to fit into tight spaces

3. EASY-TO-USE
The touch screen color LCD allows for a friendly user interface. You can make a measurement with just the
touch of a button!

4. VERY LOW POWER MEASUREMENTS
Thanks to its very low noise level of only 10 pW, the Pronto-Si measures powers as low as 0.3 nW

5. SLIDE-IN ATTENUATOR
Just slide the OD1 integrated fi lter to the ON position and you can measure up to 800 mW of continuous power at 1064 nm (maximum power varies with wavelength)

6. USER SETABLE
You can set the wavelength, brightness and screen orientation to adapt to your application

7. DATA LOGGING
Save your data to the internal memory and then transfer it to your PC over the USB connection

8. OPTIONAL FIBER OPTICS ADAPTOR
The fi ber optics adaptor included in the Pronto-Si-FC model is held securely in place with a set screw and is compatible with OD attenuators

Applications

Pocket-size detector for applications in laser optics, spectroscopy, semiconductors, inspection, and more.

Request Quote

To: Gentec-EO
Re: Photo Detector PRONTO-Si

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: Canada
Sold by:: Gentec-EO ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the Pronto-Si used for?

The Pronto-Si is a Si detector used for 0.3 nW - 800 mW laser power detection.

What are the features of the Pronto-Si?

The Pronto-Si is pocket-sized, has a slim profile, is easy-to-use with a touch screen color LCD, has very low power measurements, a slide-in attenuator, is user settable, has data logging capabilities, and an optional fiber optics adaptor.

What is the maximum power that can be measured with the Pronto-Si?

The Pronto-Si can measure up to 800 mW of continuous power at 1064 nm (maximum power varies with wavelength) with the slide-in attenuator.

What applications is the Pronto-Si suitable for?

The Pronto-Si is suitable for applications in laser optics, spectroscopy, semiconductors, inspection, and more.

Can data be saved and transferred with the Pronto-Si?

Yes, data can be saved to the internal memory and then transferred to a PC over the USB connection.
