Description
Gentec-EO PH Silicon Photo Detector for laser output power measurement in the VIS to NIR spectral range and for below 0.1W power range.
The PH Series Detectors are a sophisticated line of photo detectors designed to meet the diverse needs of scientific and industrial applications. These detectors are engineered with precision and versatility in mind, offering a range of models that cater to different spectral ranges and power levels. With large apertures and high accuracy, the PH Series Detectors provide reliable and precise measurements, making them an essential tool for professionals in the field.
Each model in the PH Series is tailored to specific requirements, featuring different sensor materials such as Silicon, UV-Silicon, and Germanium. These materials allow the detectors to cover a broad spectral range, from 210 nm to 1650 nm, ensuring compatibility with various light sources and applications. The detectors are equipped with a smart interface that contains all calibration data, facilitating easy integration and operation.
The PH Series Detectors also offer a choice of optical density (OD) attenuators, allowing users to adjust the transmission levels according to their measurement needs. This flexibility, combined with precise calibration capabilities and a low calibration uncertainty, ensures that users can achieve accurate and consistent results.
The robust design and high damage thresholds of these detectors make them suitable for high-power applications, providing durability and reliability in demanding environments.

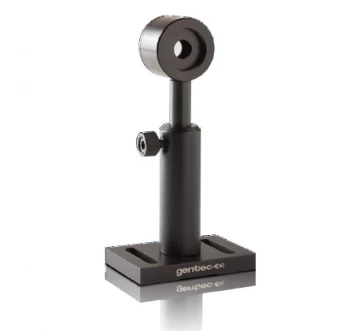

Photo Detector PH100-Si-HA
Specifications
| Max Average Power: | 0.04 W |
|---|---|
| Effective Aperture: | 10 mm |
| Spectral Range: | 0.35 – 1.08 um |
| Cooling Method: | No cooling |
| Max Average Power (PH100-Si-HA): | 36 mW / 750 mW |
| Max Average Power (PH100-Si UV): | 4 mW / 38 mW |
| Max Average Power (PH20-Ge): | 30 mW / 500 mW |
| Effective Aperture (PH100-Si-HA): | 10 mm Ø |
| Effective Aperture (PH100-Si UV): | 10 mm Ø |
| Effective Aperture (PH20-Ge): | 5 mm Ø |
| Spectral Range (PH100-Si-HA): | 350 – 1080 nm |
| Spectral Range (PH100-Si UV): | 210 – 1080 nm |
| Spectral Range (PH20-Ge): | 800 – 1650 nm |
| Noise Equivalent Power (PH100-Si-HA): | 10 pW @ 980 nm |
| Noise Equivalent Power (PH100-Si UV): | 10 pW @ 850 nm |
| Noise Equivalent Power (PH20-Ge): | 60 pW @ 1550 nm |
| Rise Time (nominal): | 0.2 sec (0.45 sec INTEGRA) |
| Peak Sensitivity (PH100-Si-HA): | 0.5 A/W @ 980 nm |
| Peak Sensitivity (PH100-Si UV): | 0.45 A/W @ 850 nm |
| Peak Sensitivity (PH20-Ge): | 0.98 A/W @ 1550 nm |
| Calibration Uncertainty (PH100-Si-HA): | ±6.0 % (350 - 399 nm) |
| Calibration Uncertainty (PH100-Si UV): | ±8 % (200 - 219 nm) |
| Calibration Uncertainty (PH20-Ge): | ±3.5 % (800 - 1650 nm) |
| Maximum Average Power Density: | 100 W/cm² |
| Distance To Sensor Face (PH100-Si-HA): | 13.7 mm |
| Distance To Sensor Face (PH100-Si UV): | 13.7 mm |
| Distance To Sensor Face (PH20-Ge): | 10.5 mm |
| Dimensions: | 38.1Ø x 27.4D mm |
| Weight (head Only): | 130 g |
Download Data Sheet
Features
- LARGE APERTURES
- 3 VERSIONS
- CHOICE OF ATTENUATORS
- HIGH ACCURACY
- PRECISE CALIBRATION
- SMART INTERFACE
Applications
- Laser Beam Diagnostics
- Special Products
- OEM Detectors
- THz Detectors
- High Power Solutions
- Power Detectors
- Energy Detectors
Frequently Asked Questions
What is the Gentec-EO PH Silicon Photo Detector used for?
What are the features of the Gentec-EO PH Silicon Photo Detector?
What are the available models for the Gentec-EO PH Silicon Photo Detector?
What is the maximum measurable power for the Gentec-EO PH Silicon Photo Detector?
What is the calibration uncertainty for the Gentec-EO PH Silicon Photo Detector?
