Description
Gentec-EO offers a power detector for measuring laser powers in the range from 600W - 2500W. UP-HD series power meters can be used in a wide range of applications for detecting light from deep ultraviolet (DUV) to far infrared (FIR).

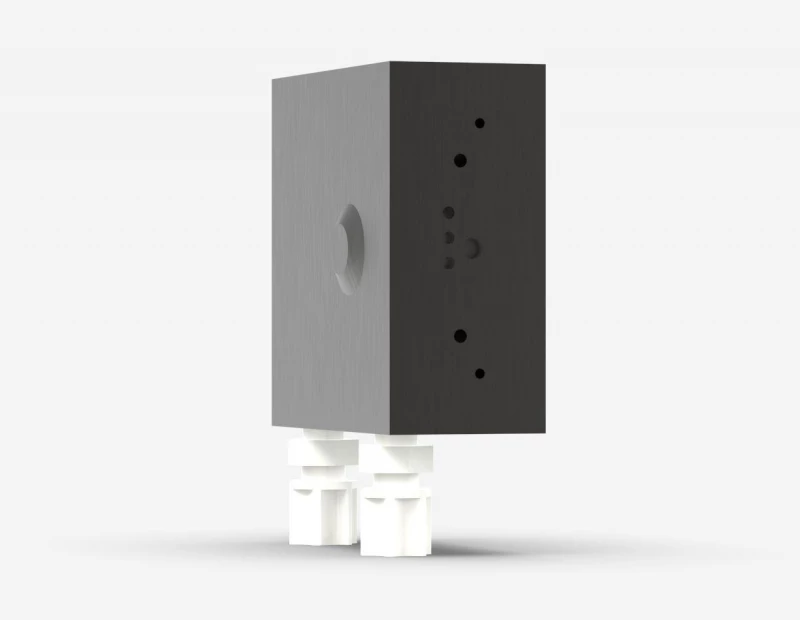

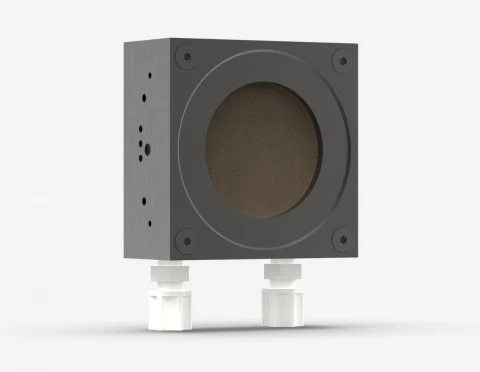

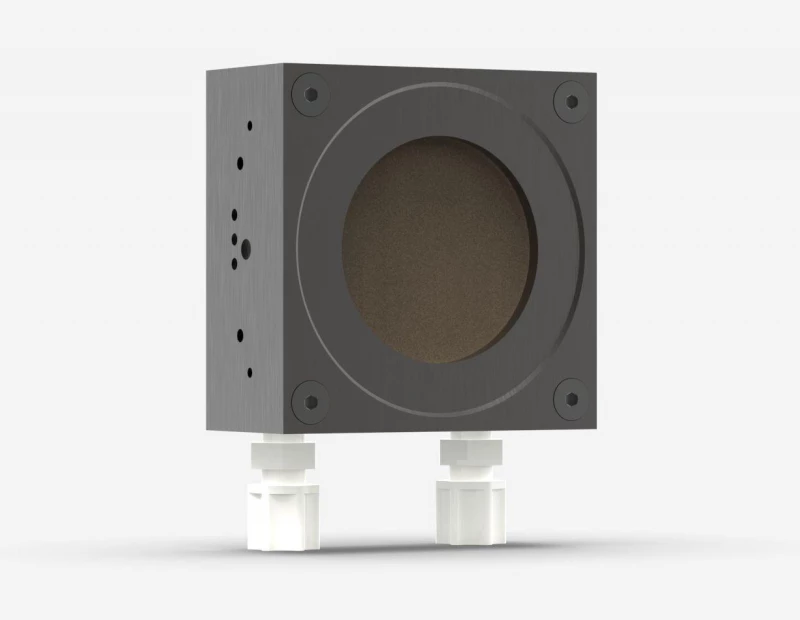

UP55M-700W-HD-D0 Thermal Detector for Laser Power Measurement
Specifications
Max Average Power: | 700 W |
---|---|

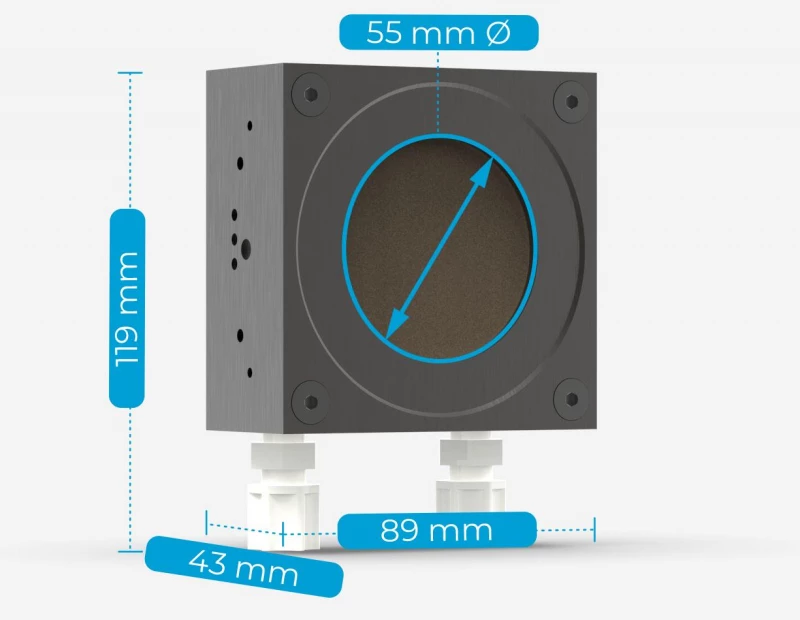

Effective Aperture: | 55 mm |
Spectral Range: | 0.19 – 20 um |
Cooling Method: | Water |
Noise Equivalent Power: | 45 mW |
Typical Rise Time: | 2.8 s |
Typical Power Sensitivity: | 0.03 mV/W |
Typical Energy Sensitivity: | 0.008 mV/J |
Minimum Repetition Period: | 12 s |
Maximum Pulse Width: | 430 ms |
Max Average Power Density: | 45 kW/cm² |
Features
- HIGH DENSITY ABSORBER: The HD absorber is the strongest on the market for use at high powers, presenting both high average power handling and high power density capabilities.
- FAST AND COMPACT: A very compact detector that measures up to 700 W of continuous power.
- SMART INTERFACE: Containing all the calibration data
Applications
- Laser output power measurements in 600W-2.5kW range
- Laboratory and industrial applications in a wide spectral range from deep ultraviolet (DUV) to far-infrared (FIR).
Frequently Asked Questions
What is the measurement range of the UP55M-700W-HD-D0 Thermal Detector?
The UP55M-700W-HD-D0 Thermal Detector measures laser powers in the range from 600W - 2500W.
What is the HD absorber in the UP55M-700W-HD-D0 Thermal Detector?
The HD absorber is the strongest on the market for use at high powers, presenting both high average power handling and high power density capabilities.
What is the maximum average power that the UP55M-700W-HD-D0 laser power meter can measure?
The UP55M-700W-HD-D0 Thermal Detector can measure up to 700 W of continuous power.
What kind of applications can the UP55M-700W-HD-D0 laser power detector be used for?
The UP55M-700W-HD-D0 Thermal Detector can be used in a wide range of applications for detecting light from deep ultraviolet (DUV) to far infrared (FIR).
What is the typical rise time of the UP55M-700W-HD-D0 laser power meter?
The typical rise time of the UP55M-700W-HD-D0 Thermal Detector is 2.8 s.
