Description
The UP19K-30H-H5-D0 is a high-performance thermal detector designed for accurate laser power measurement. With a maximum capacity of 30 W, it provides precise and reliable measurements in a compact form factor. This laser power detector is ideal for a wide range of laser applications and offers exceptional sensitivity.

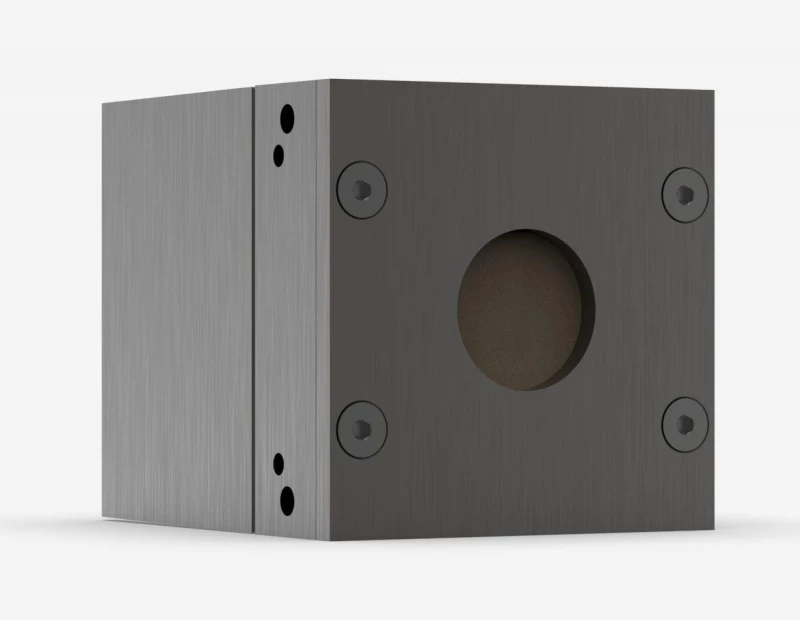

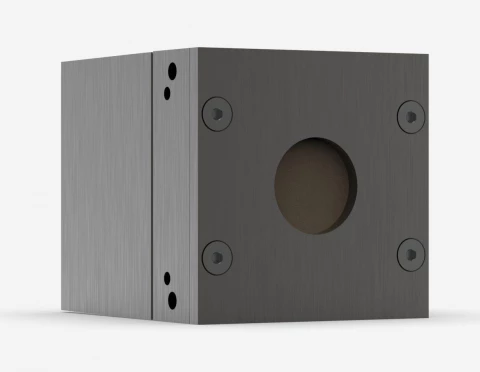

UP19K-30H-H5-D0 - Thermal Detector for Laser Power Measurement
Specifications
Max Average Power: | 60 W |
---|---|
Effective Aperture: | 19 mm |
Spectral Range: | 0.19 – 20 um |
Cooling Method: | Water, Heatsink, Fan-cooled |
Maximum Average Power (continuous): | 30 W |
Noise Equivalent Power: | 1 mW |
Typical Rise Time: | 0.6 s |
Typical Power Sensitivity: | 0.65 mV/W |
Power Calibration Uncertainty: | ±2.5 % |
Repeatability: | ±0.5 % |
Typical Energy Sensitivity: | 0.65 mV/J |
Maximum Measurable Energy: | 15 J |
Noise Equivalent Energy: | 0.02 J |
Minimum Repetition Period: | 4 s |
Maximum Pulse Width: | 88 ms |
Energy Calibration Uncertainty: | ±5 % |
Maximum Average Power Density: | 36 kW/cm² |
Maximum Energy Density: | 1 J/cm² |
Cooling: | Convection (heatsink) |
Convection (heatsink): | H5 |
Dimensions: | 50H x 50W x 56.3D mm |
Weight: | 0.21 kg |
Features
- High Measurement Capacity: Capable of measuring laser power up to 30 W
- Versatile Spectral Range: Covers a wide spectral range from 0.193 to 20 μm
- Fast Response: Typical rise time of 0.6 seconds ensures real-time data acquisition
- High Sensitivity: Typical power sensitivity of 0.65 mV/W for precise measurements
- Calibration Precision: Power calibration uncertainty of ±2.5%
- Repeatable Results: Repeatability of ±0.5% ensures consistent measurements
Applications
- Laser power measurement in research and industrial settings
- Quality control and monitoring of laser systems
- Research and development of laser-based applications
- Precision laser power measurements for various laser sources
Frequently Asked Questions
What are the applications of the UP laser power detectors?
The UP detectors are used for laser power measurements, laser optics, spectroscopy, and metrology.
What are the features of the UP laser power meters?
The UP detectors are supplied with a flexible cable with output connection options, and may also be supplied with a stand. They also come with a "Personal wavelength correction TM Certificate" to adjust the power you read to a power corrected for a particular wavelength.
What are the key features of the UP19K-30H-H5-D0 power detector?
The key features of the UP19K-30H-H5-D0 detector include a modular concept with 5 different cooling modules, fast rise time, high damage threshold, compact design, energy mode, smart interface, and compatibility with various stands, displays, and PC interfaces.
What is the Gentec-EO UP series of laser power detectors?
The Gentec-EO UP series of laser power detectors include seven families of opto-thermal sensors with different cooling options, with or without amplification.
What is the UP19K-30H-H5-D0 detector?
The UP19K-30H-H5-D0 detector is a thermal detector for laser power measurement up to 30 W.
