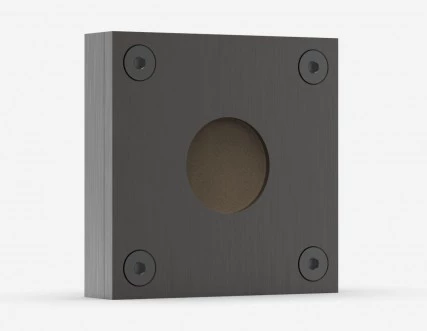

Thumbnail of UP17P-6S-H5-D0 Thermal Detector for Laser Power Measurement photo 1

Description

The UP17P-6S-H5-D0 is a thermal detector designed for laser power measurement up to 6 W. With its ultra-thin casing and high "power to size" ratio, this detector offers compact and accurate power measurement capabilities. It features a choice between two absorbers: H5 with a power density of 36 kW/cm2 and W5 with an unmatched power density of 100 kW/cm2.

The UP17P-6S-H5-D0 also includes an energy mode for measuring single-shot energy up to 200 J (with the W5 version). The smart interface of this detector contains all the calibration data for convenient and reliable measurements.

UP17P-6S-H5-D0 Thermal Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 6 W
Effective Aperture: 17 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Convection
Absorber Choices: H5 (36 kW/cm2), W5 (100 kW/cm2)
Power Calibration Uncertainty: ±2.5 %
Power-to-Size Ratio: High
Repeatability: ±0.5 %
Typical Energy Sensitivity: 0.7 mV/J
Maximum Measurable Energy: 15 J
Noise Equivalent Energy: 0.02 J
Minimum Repetition Period: 4 s
Maximum Pulse Width: 88 ms
Maximum Pulse Width: ±5 %
Maximum Energy Density: 1 J/cm²
Maximum Average Power Density: 36 kW/cm²
Dimensions: 46H x 46W x 10.7D mm
Weight: 0.1 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Ultra-thin casing, only 10.7 mm thick
  • Choice between two absorbers: H5 (36 kW/cm2) and W5 (100 kW/cm2)
  • High "power to size" ratio, capable of continuous reading at 6 W
  • Energy mode for measuring single-shot energy up to 200 J (W5 version)
  • Smart interface containing all calibration data
  • Compatible with STAND-S-233 stand
  • Compatible with various displays and PC interfaces for power and energy measurement

Applications

  • Laser power measurement up to 6 W
  • Research and development
  • Laser manufacturing
  • Medical laser applications
  • Industrial laser applications
  • Quality control and testing

Frequently Asked Questions

What is the maximum average power density of the Gentec-EO Thermal Detector UP17P-6S-H5-D0?
The maximum average power density of the Gentec-EO Thermal Detector UP17P-6S-H5-D0 is 136 kW/cm².
What is the maximum average power that the Gentec-EO Thermal Detector UP17P-6S-H5-D0 can measure?
The maximum average power that the Gentec-EO Thermal Detector UP17P-6S-H5-D0 can measure is 6 W.
What is the maximum measurable energy of the Gentec-EO Thermal Detector UP17P-6S-H5-D0?
The maximum measurable energy of the Gentec-EO Thermal Detector UP17P-6S-H5-D0 is 115 J.
What is the spectral range of the Gentec-EO Thermal Detector UP17P-6S-H5-D0?
The spectral range of the Gentec-EO Thermal Detector UP17P-6S-H5-D0 is 0.19 - 20 μm.
What is the thickness of the casing of the Gentec-EO Thermal Detector UP17P-6S-H5-D0?
The Gentec-EO Thermal Detector UP17P-6S-H5-D0 has an ultra-thin casing that is only 10.7 mm thick.
