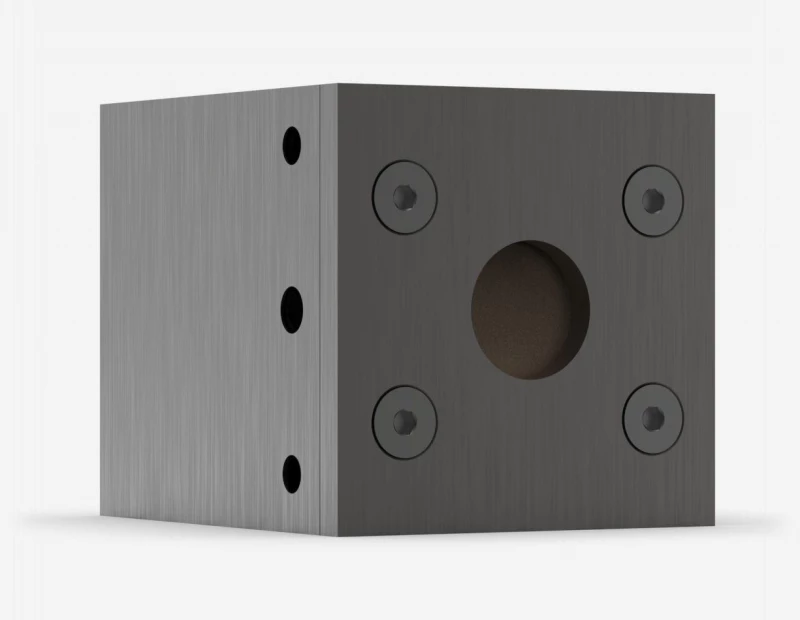

Thumbnail of UP12E-20H-H5-D0 - Thermal Detector for Laser Power Measurement photo 1

Description

The UP12E-20H-H5-D0 is a high-quality thermal detector designed for precise laser power measurement applications. With a maximum continuous power handling capacity of 20 W, this laser power detector provides accurate and reliable results across a broad spectral range. Its exceptional sensitivity and fast response time make it an ideal choice for various laser power measurement needs.

UP12E-20H-H5-D0 - Thermal Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 40 W
Effective Aperture: 12 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Water, Heatsink
Noise Equivalent Power: 1 mW
Typical Rise Time: 0.3 s
Typical Power Sensitivity: 0.53 mV/W
Power Calibration Uncertainty: ±2.5 %
Repeatability: ±0.5
Typical Energy Sensitivity: 0.84 mV/J
Maximum Measurable Energy: 5 J
Noise Equivalent Energy: 0.02 J
Maximum Pulse Width: 50 ms
Energy Calibration Uncertainty: ±5 %
Maximum Average Power Density: 36 kW/cm²
Maximum Energy Density: 1 J/cm²
Absorber: H5
Dimensions: 38H x 38W x 45D mm
Weight: 0.15 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Measurement Capacity: Capable of measuring laser power up to 20 W
  • Versatile Spectral Range: Covers a wide spectral range from 0.193 to 20 μm
  • Fast Response: Typical rise time of 0.3 seconds ensures real-time data acquisition
  • High Sensitivity: Typical power sensitivity of 0.53 mV/W for precise measurements
  • Calibration Precision: Power calibration uncertainty of ±2.5%
  • Repeatable Results: Repeatability of ±0.5% ensures consistent measurements

Applications

  • Laser power measurement in research and industrial settings
  • Quality control and monitoring of laser systems
  • Research and development of laser-based applications
  • Precision laser power measurements for various laser sources

Frequently Asked Questions

What are the features of the UP detectors?
The UP detectors are supplied with a flexible cable with output connection options, and may also be supplied with a stand. They have different cooling options and may or may not have amplification.
What is the damage threshold of the UP12E-20H-H5-D0 power meter?
The damage threshold of the UP12E-20H-H5-D0 is 36 kW/cm2.
What is the UP12E-20H-H5-D0 laser power meter used for?
The Gentec-EO Thermal Detector UP12E-20H-H5-D0 is used for laser power measurements, laser optics, spectroscopy, and metrology.
What is the maximum average power that the UP12E-20H-H5-D0 power meter can measure?
The maximum average power that the UP12E-20H-H5-D0 can measure is 20 W.
What is the typical rise time of the UP12E-20H-H5-D0 laser power detector?
The typical rise time of the UP12E-20H-H5-D0 is 0.3 sec.

Got more questions? Use the inquiry form to ask the supplier directly.
