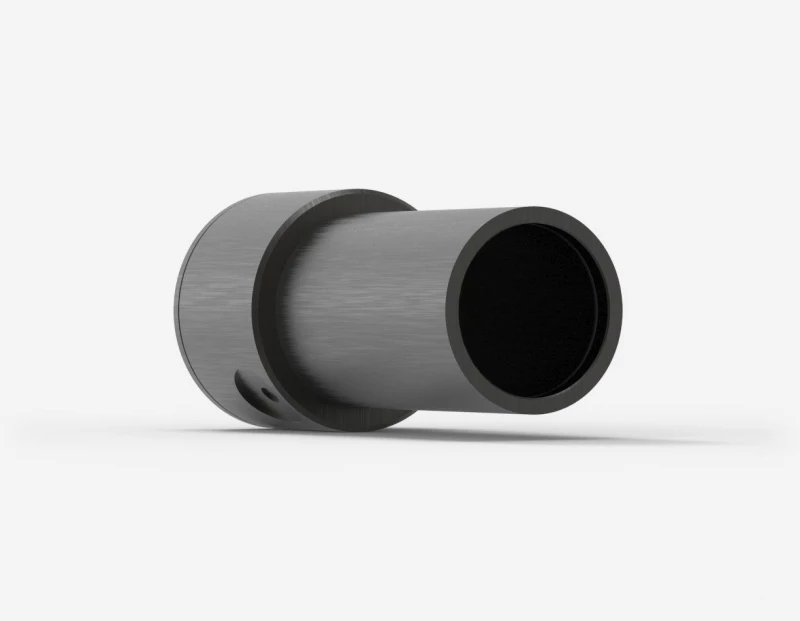

Thumbnail of UM9B-BL-D0 Pyroelectric Detector for Laser Power Measurement photo 1
Thumbnail of UM9B-BL-D0 Pyroelectric Detector for Laser Power Measurement photo 2

Description

Gentec-EO offers a power detector for measuring laser power in the ultra-low range from 5nW-25mW. This detector is compatible with different types of power monitors: analog power module (APM) and Gentec's power monitors.

UM9B-BL-D0 series detectors can be used in a wide range of applications for detecting light from deep ultraviolet (DUV) to far infrared (FIR) and come with the standard Gentec power monitors.

UM9B-BL-D0 Pyroelectric Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 0.025 W
Effective Aperture: 9 mm
Spectral Range: 0.1 – 20 um
Cooling Method: Convection
Noise Equivalent Power: 300 nW
Typical Rise Time: 0.2 s
Typical Power Sensitivity: 120 mV/W
Max Average Power Density: 50 mW/cm²
Power Calibration Uncertainty: ±4 %
Chopper Frequency: 10 ± 1 Hz
Absorber: BL

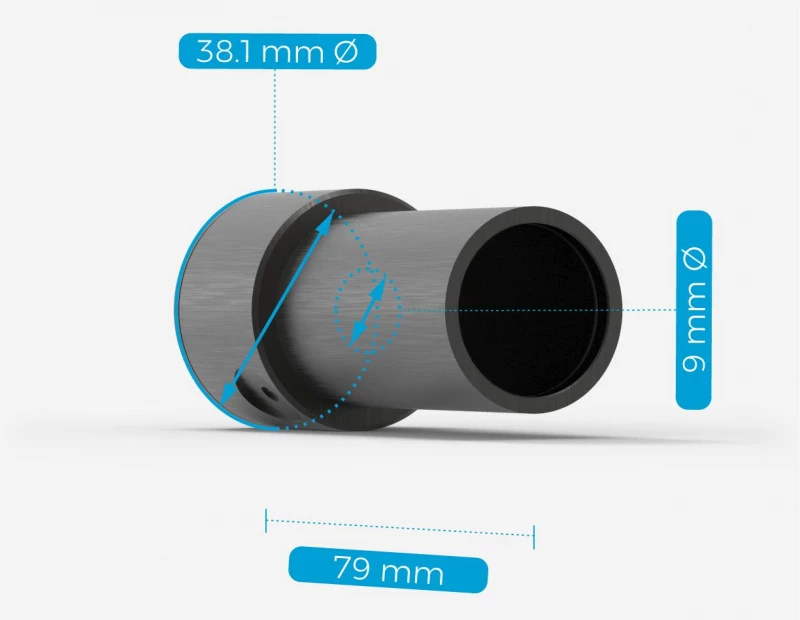

Dimensions: 38.1Ø X 79D mm
Weight: 0.09 kg
Model | SKU: UM9B-BL-D0 | 202024

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • VERY LOW NOISE LEVEL: Noise levels of a photodetector, but with the large bandwidth of a pyroelectric
  • VERY LARGE BANDWIDTH: From DUV to FIR thanks to pyroelectric technology
  • SMART INTERFACE: Containing all the calibration data

Applications

  • Laser power measurements from deep ultraviolet (DUV) to far infrared (FIR)
  • Laboratory and industrial ultra-low level light measurements

Frequently Asked Questions

What is the UM9B-BL-D0 Pyroelectric Detector used for?
The UM9B-BL-D0 Pyroelectric Detector is used for measuring laser power in the ultra-low range from 5nW-25mW.
What is the noise level of the UM9B-BL-D0 Pyroelectric Detector?
The UM9B-BL-D0 Pyroelectric Detector has very low noise levels of a photodetector, but with the large bandwidth of a pyroelectric.
What is the bandwidth of the UM9B-BL-D0 Pyroelectric Detector?
The UM9B-BL-D0 Pyroelectric Detector has a very large bandwidth from DUV to FIR thanks to pyroelectric technology.
What is the maximum average power that the UM9B-BL-D0 Pyroelectric Detector can measure?
The UM9B-BL-D0 Pyroelectric Detector can measure a maximum average power of 25 mW.
What is the weight of the UM9B-BL-D0 Pyroelectric Detector?
The weight of the UM9B-BL-D0 Pyroelectric Detector is 0.09 kg.

Got more questions? Use the inquiry form to ask the supplier directly.
