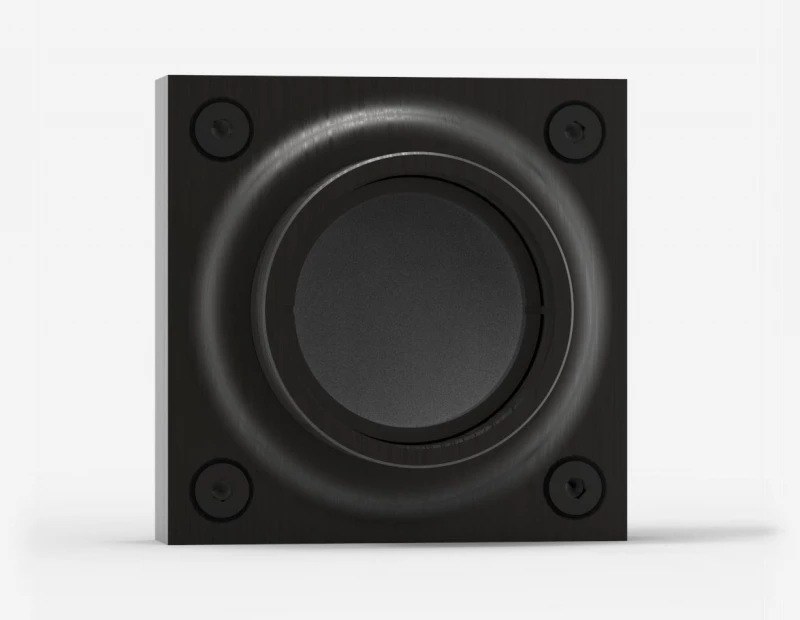

Thumbnail of UPF10P-2S-H5-L-D0 Thermal Detector for Laser Power Measurement photo 1

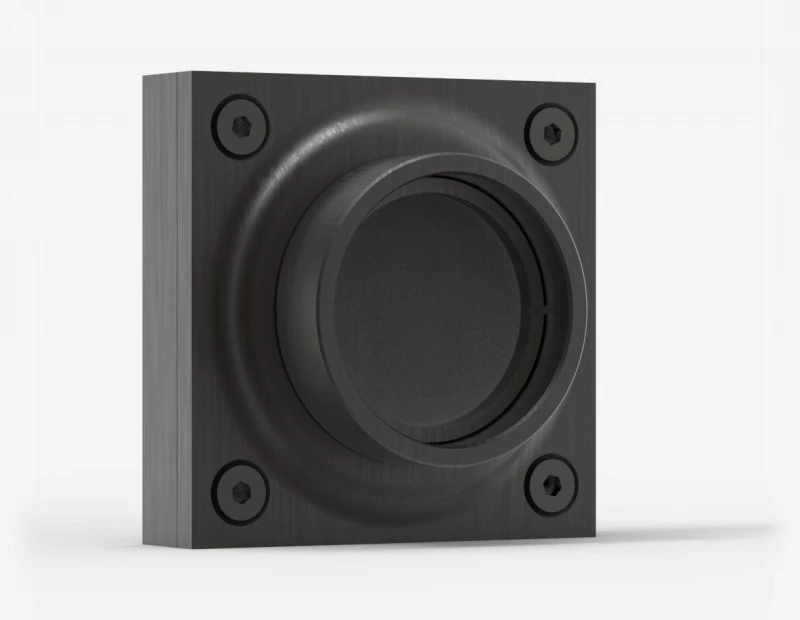

Thumbnail of UPF10P-2S-H5-L-D0 Thermal Detector for Laser Power Measurement photo 2

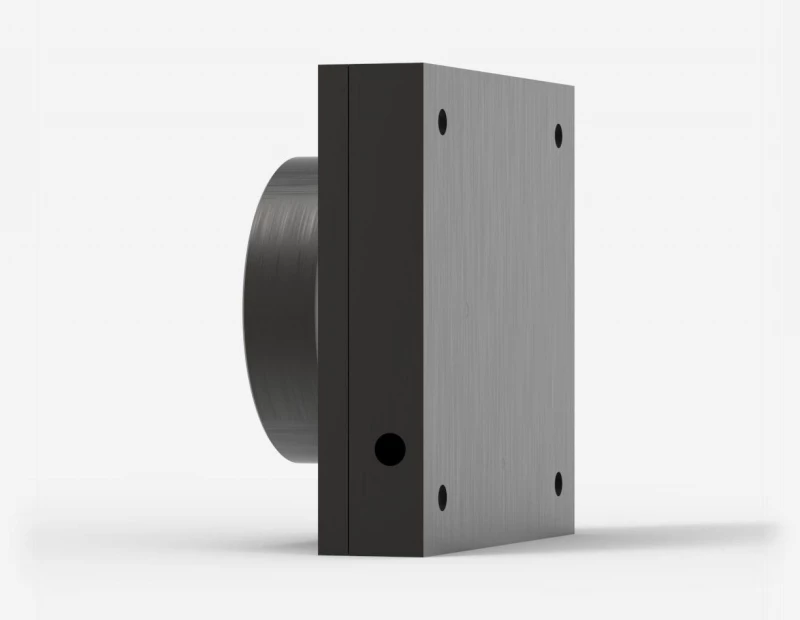

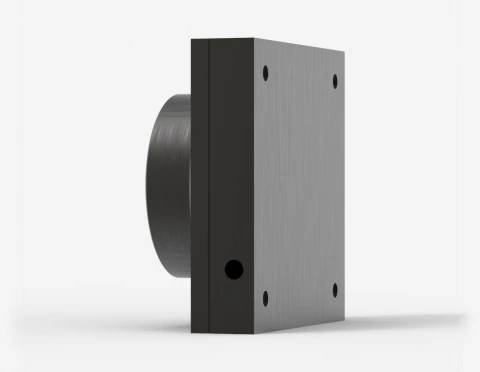

Thumbnail of UPF10P-2S-H5-L-D0 Thermal Detector for Laser Power Measurement photo 3

Description

The UPF10P-2S-H5-L-D0 is a high-performance thermal detector designed for accurate laser power measurement up to 2 W. It combines the low power thermopile technology with the large bandwidth and high-power capacity of a thermal device. With its compact design and smart interface containing calibration data, it offers convenience and reliability in power measurements.

The detector comes with an integrated IR filter to remove unwanted IR interference and provides fast rise time and high damage threshold for robust performance. It also features an energy mode for measuring single-shot energy up to 3 J. Compatible with various displays and PC interfaces, this detector offers flexibility in data output and analysis. The UPF10P-2S-H5-L-D0 is an ideal solution for laser power measurements in research, industrial, and scientific applications.

UPF10P-2S-H5-L-D0 Thermal Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 2 W
Effective Aperture: 10 mm
Spectral Range: 0.28 – 21 um
Cooling Method: No cooling
Rise Time: 1.4 sec
Damage Threshold: 36 kW/cm2
Thickness: 13 mm (UP10P model)
Energy: Single-shot up to 3 J
Typical Energy Sensitivity: 2.4 mV/J
Maximum Measurable Energy: 3 J
Noise Equivalent Energy: 5 mJ
Minimum Repetition Period: 2 sec
Maximum Pulse Width: 63 ms
Energy Calibration Uncertainty: ±5 %
Maximum Energy Density: 1 J/cm²
Interface: Smart interface containing calibration data

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low power thermopile technology with the large bandwidth and high power capacity
  • Integrated IR filter for removing unwanted IR interference
  • Fast rise time of 1.4 sec for quick power measurements
  • High damage threshold of 36 kW/cm2 for durability
  • Compact design with a thickness of only 13 mm (UP10P model)
  • Energy mode for measuring single-shot energy up to 3 J
  • Smart interface containing calibration data for convenience
  • Compatible with various displays and PC interfaces for flexible data output

Applications

  • Laser power measurement in research laboratories
  • Laser power monitoring in industrial settings
  • Laser power characterization in scientific experiments
  • Laser power testing and quality control
  • Laser power calibration and verification

Frequently Asked Questions

What are the applications of the UP detectors?
The UP detectors are used for laser power measurements, laser optics, spectroscopy, and metrology.
What are the features of the UP detectors?
The UP detectors are supplied with a flexible cable with output connection options, and may also be supplied with a stand. They also have a "Personal wavelength correction TM Certificate" to adjust the power you read to a power corrected for a particular wavelength.
What are the measurement capabilities of the UPF10P-2S-H5-L-D0 detector?
The UPF10P-2S-H5-L-D0 detector has a maximum average power of 2 W, noise equivalent power of 30 μW, spectral range of 0.28 - 2.1 μm, typical rise time of 1.4 sec, and typical power sensitivity of 2 mV/W. It also has a maximum measurable energy of 13 J, noise equivalent energy of 5 mJ, and maximum average power density of 136 kW/cm².
What is the Gentec-EO UP series of laser power detectors?
The Gentec-EO UP series of laser power detectors include seven families of opto-thermal sensors with different cooling options, with or without amplification.
What is the UPF10P-2S-H5-L-D0 detector?
The UPF10P-2S-H5-L-D0 is a thermal detector for laser power measurement up to 2 W, with a low power thermopile, IR filter, fast rise time, high damage threshold, and compact design.
