Description

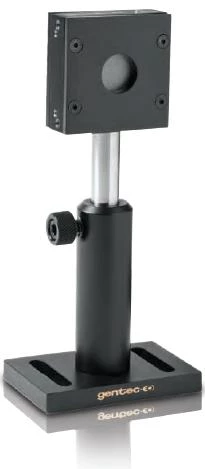

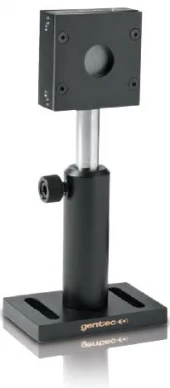

Gentec-EO offers UP19-W series laser power detectors for laboratory and industrial applications.
Gentec-EO - Laser Power Detectors - UP19K-50F-W5
Specifications |
|
|---|---|
| Max Average Power: | 50 W |
| Effective Aperture: | 17 mm |
| Spectral Range: | 0.19 – 10 um |
| Cooling Method: | Fan-cooled |
| Max Average Power (1 Minute): | 85 W |
Features
1. MODULAR CONCEPT
Increase the power capability of your detector: 5 different cooling modules
2. VERY HIGH DAMAGE THRESHOLD
100 kW/cm2 in average power density
3. COMPACT DESIGN
Only 21 mm thick (15S model)
4. ENERGY MODE
Measure single shot energy up to 200 J
5. SMART INTERFACE
Containing all the calibration data
Applications
- Power output measurements of high power lasers in a wide spectral range from deep ultraviolet to mid-infrared.
Frequently Asked Questions
The UP19K-50F-W5 has a very high damage threshold of 100 kW/cm2 in average power density.
The UP19K-50F-W5 has a compact design and is only 21 mm thick (15S model).
Yes, the UP19K-50F-W5 can measure single shot energy up to 200 J in energy mode.
The UP19K-50F-W5 is suitable for power output measurements of high power lasers in a wide spectral range from deep ultraviolet to mid-infrared, spectroscopy, field service, laboratory and industrial applications.
Yes, the UP19K-50F-W5 has a modular concept that allows you to increase the power capability of your detector with 5 different cooling modules.
