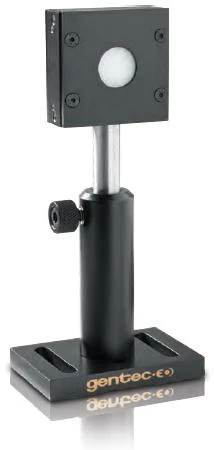

Thumbnail of Gentec-EO - Laser Power Detectors - UP19K-30H-VR photo 1

Description

Gentec-EO offers UP19-VR series laser power detectors for laboratory and industrial applications.

Gentec-EO - Laser Power Detectors - UP19K-30H-VR

Visit the Gentec-EO Store

Specifications

Max Average Power: 30 W
Effective Aperture: 18 mm
Spectral Range: 0.3 – 2.5 um
Cooling Method: Heatsink
Max Average Power (1 Minute): 35 W

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  1. MODULAR CONCEPT
    - Increase the power capability of your detector: 2 different cooling modules
  2. HIGH PEAK POWER VOLUME ABSORBER
    - Perfect for high density beams
    - Average power density of 700 W/cm2 prevents degradation caused by repetitive  pulses
  3. COMPACT DESIGN
    - Only 21 mm thick (15S model)
  4. ENERGY MODE
    - Measure single shot energy up to 40 J
  5. SMART INTERFACE
    - Containing all the calibration data

Applications

  • Power output measurements of high power lasers in a wide spectral range from deep ultraviolet to mid-infrared.
  • Spectroscopy
  • Field service
  • Laboratory and industrial applications

Frequently Asked Questions

What is the UP19K-30H-VR laser power detector used for?
The UP19K-30H-VR laser power detector is used for power output measurements of high power lasers in a wide spectral range from deep ultraviolet to mid-infrared, spectroscopy, field service, laboratory and industrial applications.
What are the features of the UP19K-30H-VR laser power detector?
The features of the UP19K-30H-VR laser power detector include a modular concept that increases the power capability of your detector with 2 different cooling modules, a high peak power volume absorber that is perfect for high density beams and has an average power density of 700 W/cm2 that prevents degradation caused by repetitive pulses, a compact design that is only 21 mm thick (15S model), an energy mode that measures single shot energy up to 40 J, and a smart interface that contains all the calibration data.
What is the average power density of the UP19K-30H-VR laser power detector?
The average power density of the UP19K-30H-VR laser power detector is 700 W/cm2.
What is the thickness of the UP19K-30H-VR laser power detector?
The thickness of the UP19K-30H-VR laser power detector is only 21 mm thick (15S model).
What applications is the UP19K-30H-VR laser power detector suitable for?
The UP19K-30H-VR laser power detector is suitable for power output measurements of high power lasers in a wide spectral range from deep ultraviolet to mid-infrared, spectroscopy, field service, laboratory and industrial applications.

Got more questions? Use the inquiry form to ask the supplier directly.
