Description
Gentec-EO offers UP55 series high power detectors for industrial and laboratory applications.

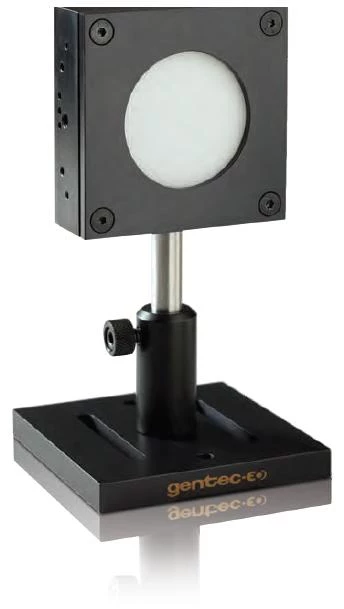

Gentec-EO - High Power Detectors - UP55N-50S-VR
Specifications
| Max Average Power: | 50 W |
|---|---|
| Effective Aperture: | 55 mm |
| Spectral Range: | 0.3 – 2.5 um |
| Cooling Method: | Convection |
Download Data Sheet
Features
- MODULAR CONCEPT: Increase the power capability of your detector: 4 different cooling modules
- HIGH PEAK POWER VOLUME ABSORBER: Perfect for high density beams. Average power density of 700 W/cm2 prevents degradation caused by repetitive pulses.
- LARGE APERTURE: 55 mm Ø aperture accommodates the largest beams
- HIGH AVERAGE POWER: Up to 500 W of continuous power with the water-cooled unit
- ENERGY MODE: Measure single shot energy up to 200 J
- SMART INTERFACE: Containing all the calibration data
Applications
- Power output measurements of high power lasers in a wide spectral range
- Metrology
- Spectroscopy
Frequently Asked Questions
What is the maximum power capability of the UP55 series high power detectors?
The power capability of the detector can be increased with 4 different cooling modules.
What is the average power density of the high peak power volume absorber?
The average power density of the high peak power volume absorber is 700 W/cm2, which prevents degradation caused by repetitive pulses.
What is the maximum continuous power that the water-cooled unit can handle?
The water-cooled unit can handle up to 500 W of continuous power.
What is the maximum single shot energy that can be measured with the UP55 series high power detectors?
The energy mode can measure single shot energy up to 200 J.
What kind of applications is the UP55 series high power detectors suitable for?
The UP55 series high power detectors are suitable for power output measurements of high power lasers in a wide spectral range for both industrial and laboratory applications.
