Description

Gentec-EO offers UP55 series high power detectors for industrial and laboratory applications.

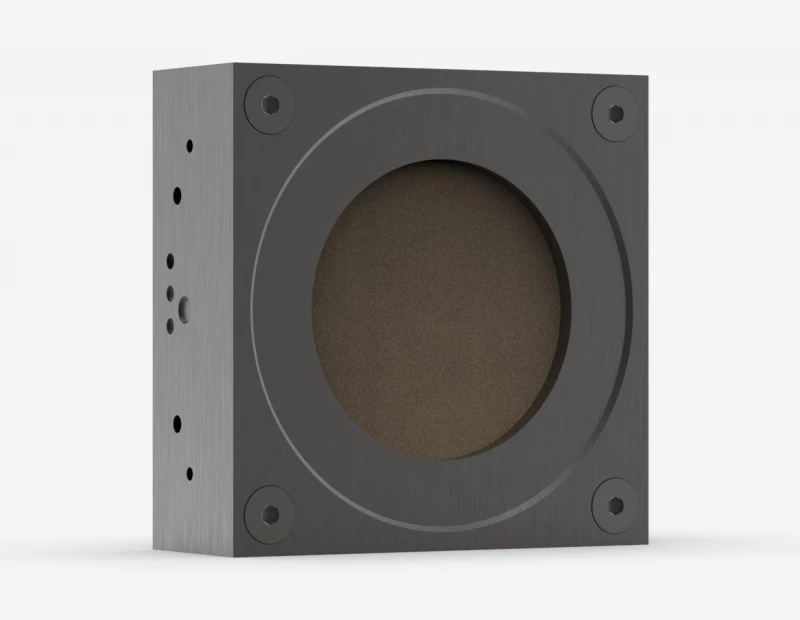

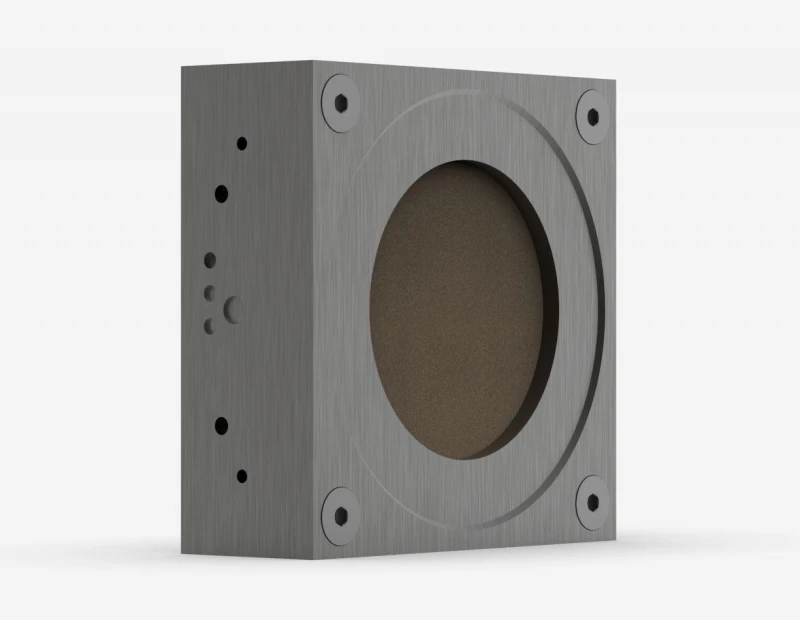

UP55N-40S-H9-D0 Thermal Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 40 W
Effective Aperture: 55 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Convection
Max Average Power (1 Minute): 80 W
Noise Equivalent Power: 5 mW
Typical Energy Sensitivity: 0.028 mV/J
Maximum Measurable Energy1: 200 J
Minimum Repetition Period: 11.1 s
Maximum Pulse Width: 433 ms
Maximum Average Power Density: 45 kW/cm²
Maximum Energy Density: 1 J/cm²

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • MODULAR CONCEPT: Increase the power capability of your detector with 4 different cooling modules
  • HIGH PERFORMANCE: Fast Rise Time (2 sec) | High Damage Threshold (45 kW/cm2)
  • COMPACT DESIGN: Only 32 mm thick (40S model)
  • ENERGY MODE: Measure single shot energy up to 200 J
  • SMART INTERFACE: Containing all the calibration data

Applications

Power output measurements of high-power lasers in a wide spectral range

Frequently Asked Questions

What is the UP55N-40S-H9-D0 Thermal Detector used for?
The UP55N-40S-H9-D0 Thermal Detector is used for laser power measurement up to 40 W.
What is the rise time of the detector?
The rise time of the detector is 2 seconds.
What is the maximum measurable energy of the detector?
The maximum measurable energy of the detector is 200 J.
What is the physical size of the detector?

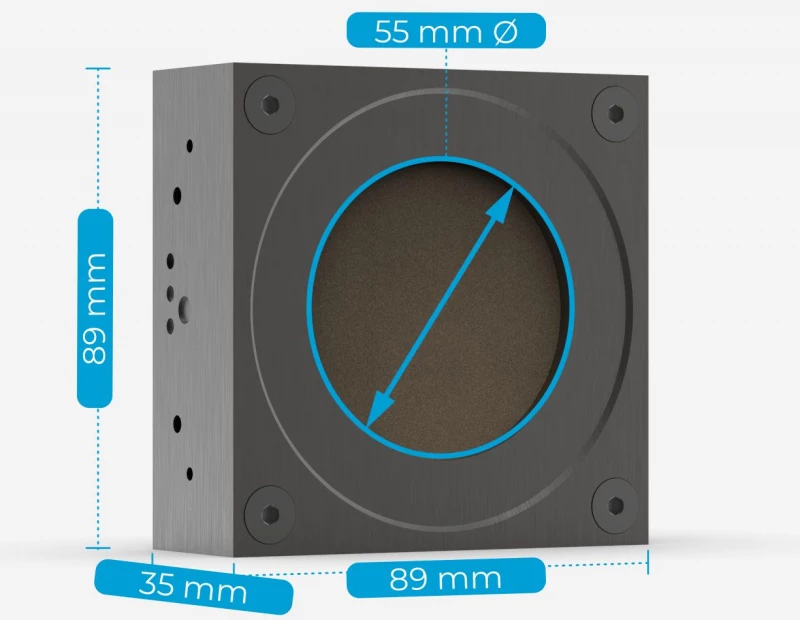

The detector is only 32 mm thick (40S model) and has dimensions of 89H x 89W x 35D mm.
Is the detector compatible with any stand?
The detector is compatible with the STAND-S-443 stand.

Got more questions? Use the inquiry form to ask the supplier directly.
