Description
Gentec-EO offers UP55 series high power detectors for industrial and laboratory applications.

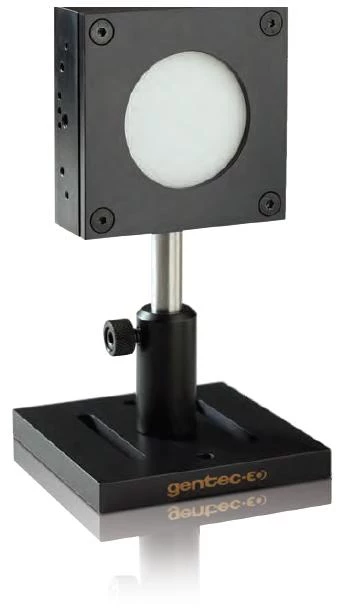

Gentec-EO - High Power Detectors - UP55N-150F-VR
Specifications
| Max Average Power: | 150 W |
|---|---|
| Effective Aperture: | 55 mm |
| Spectral Range: | 0.3 – 2.5 um |
| Cooling Method: | Fan-cooled |
Download Data Sheet
Features
- MODULAR CONCEPT: Increase the power capability of your detector: 4 different cooling modules
- HIGH PEAK POWER VOLUME ABSORBER: Perfect for high density beams. Average power density of 700 W/cm2 prevents degradation caused by repetitive pulses.
- LARGE APERTURE: 55 mm Ø aperture accommodates the largest beams
- HIGH AVERAGE POWER: Up to 500 W of continuous power with the water-cooled unit
- ENERGY MODE: Measure single shot energy up to 200 J
- SMART INTERFACE: Containing all the calibration data
Applications
- Power output measurements of high power lasers in a wide spectral range
- Spectroscopy
- Metrology
Frequently Asked Questions
What is the UP55N-150F-VR detector used for?
The UP55N-150F-VR detector is used for power output measurements of high power lasers in a wide spectral range.
Can the power capability of the laser power detector be increased?
Yes, the power capability of the detector can be increased with 4 different cooling modules.
What is the average power density of the high peak power volume absorber?
The average power density of the high peak power volume absorber is 700 W/cm2 which prevents degradation caused by repetitive pulses.
What is the maximum continuous power that can be measured with the water-cooled unit?
The water-cooled unit can measure up to 500 W of continuous power.
What kind of interface does this laser power meter have?
The detector has a smart interface containing all the calibration data.
Got more questions? Use the RFQ form to ask the supplier directly.
