Description
Gentec-EO offers UP50 series high power detectors for industrial and laboratory applications.

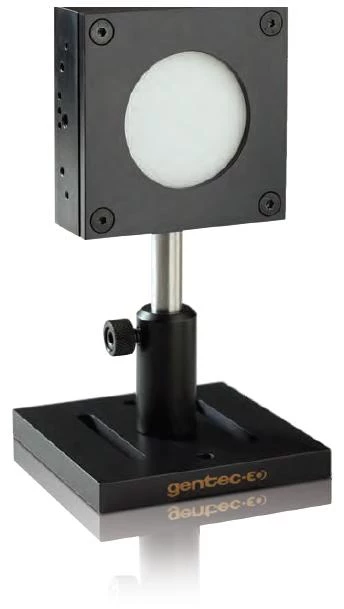

Gentec-EO - High Power Detectors - UP55N-100H-VR
Specifications
| Max Average Power: | 100 W |
|---|---|
| Effective Aperture: | 55 mm |
| Spectral Range: | 0.3 – 2.5 um |
| Cooling Method: | Heatsink |
Download Data Sheet
Features
- MODULAR CONCEPT: Increase the power capability of your detector: 4 different cooling modules
- HIGH PEAK POWER VOLUME ABSORBER: Perfect for high density beams. Average power density of 700 W/cm2 prevents degradation caused by repetitive pulses.
- LARGE APERTURE: 55 mm Ø aperture accommodates the largest beams
- HIGH AVERAGE POWER: Up to 500 W of continuous power with the water-cooled unit
- ENERGY MODE: Measure single shot energy up to 200 J
- SMART INTERFACE: Containing all the calibration data
Applications
- Power output measurements of high power lasers in a wide spectral range
- Metrology
Frequently Asked Questions
What is the maximum power capability of the UP55N-100H-VR laser power detector?
The UP55N-100H-VR detector can handle up to 500 W of continuous power with the water-cooled unit.
What is the aperture size of the UP55N-100H-VR power detector?
The UP55N-100H-VR detector has a large 55 mm Ø aperture that can accommodate the largest beams.
What type of beams is the UP55N-100H-VR laser power meter suitable for?
The UP55N-100H-VR detector is perfect for high density beams and has an average power density of 700 W/cm2 that prevents degradation caused by repetitive pulses.
Can the UP55N-100H-VR detector measure single shot energy?
Yes, the UP55N-100H-VR detector can measure single shot energy up to 200 J in energy mode.
What is the modular concept of the UP55N-100H-VR power meter?
The modular concept of the UP55N-100H-VR detector allows you to increase the power capability of your detector with 4 different cooling modules.
