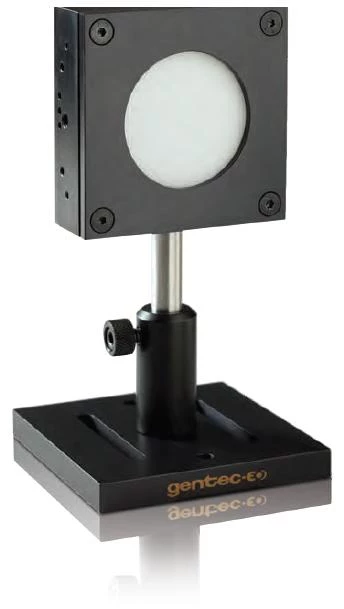

Thumbnail of Gentec-EO - High Power Detectors - UP55M-200W-VR photo 1

Description

Gentec-EO offers UP55H series high power detectors.

Gentec-EO - High Power Detectors - UP55M-200W-VR

Visit the Gentec-EO Store

Specifications

Max Average Power: 200 W
Effective Aperture: 55 mm
Spectral Range: 0.3 – 2.5 um
Cooling Method: Water

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • MODULAR CONCEPT: Increase the power capability of your detector: 4 different cooling modules
  • HIGH PEAK POWER VOLUME ABSORBER: Perfect for high density beams. Average power density of 700 W/cm2 prevents degradation caused by repetitive pulses
  • LARGE APERTURE: 55 mm Ø aperture accommodates the largest beams
  • HIGH AVERAGE POWER: Up to 500 W of continuous power with the water-cooled unit
  • ENERGY MODE: Measure single shot energy up to 200 J
  • SMART INTERFACE: Containing all the calibration data


Applications

  • Power output measurements of high power lasers in a wide spectral range
  • Scientific and industrial applications

Frequently Asked Questions

What is the UP55M-200W-VR laser power detector used for?
The UP55M-200W-VR detector is used for power output measurements of high power lasers in a wide spectral range.
Can the power capability of this laser power detector detector be increased?
Yes, the detector has a modular concept that allows for the power capability to be increased with 4 different cooling modules.
What is the average power density of the high peak power volume absorber?
The average power density of the high peak power volume absorber is 700 W/cm2, which prevents degradation caused by repetitive pulses.
What is the maximum continuous power that this laser power meter can measure?
The water-cooled unit of the detector can measure up to 500 W of continuous power.
What kind of interface does the laser power meter have?
The detector has a smart interface that contains all the calibration data.

Got more questions? Use the inquiry form to ask the supplier directly.
