Description

UP55G-600F-HD-D0 is a Thermal Detector for Laser Power Measurement. It can measure powers as high as 600W. It can be used with Gentec's STAND-S-443-C custom stand. Please inquire for details. Compatible displays and interfaces include:

  • MIRO ALTITUDE: Touchscreen display device for power & energy measurement. Single-channel.
  • MAESTRO: Touchscreen display device for power & energy measurement. Single-channel, multiple outputs (USB, Ethernet, analog).
  • U-LINK (USB): PC interface for power & energy measurement. Single-channel, USB output.
  • U-LINK (RS-232): PC interface for power & energy measurement. Single-channel, USB & RS-232 output.
  • INTEGRA: Embedded PC interface for power & energy measurement. Can only be purchased as a detector output option.
  • BLU:  Embedded wireless interface for power measurement. Can only be purchased as a detector output option.
  • TUNER: Display device with tuning needle for power measurement. Single-channel.
  • UNO: Economical display device for power measurement. Single-channel.
  • P-LINK (USB): PC interface for power measurement. Single-channel, USB output.
  • P-LINK (RS-232): PC interface for power measurement. Single-channel, RS-232 output.
  • S-LINK-1 (Ethernet): PC interface for power & energy measurement. Single-channel, USB & Ethernet output.
  • S-LINK-2 (Ethernet): PC interface for power & energy measurement. Dual-channel, USB & Ethernet output.
  • For the complete list of compatible devices please contact supplier.

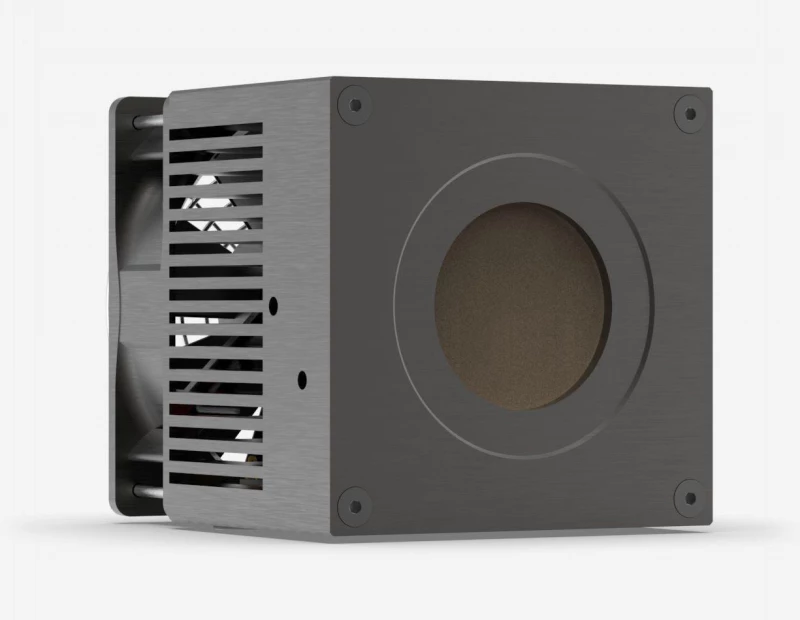

UP55G-600F-HD-D0 Thermal Detector for Laser Power Measurement

Specifications

Max Average Power: 600 W
Effective Aperture: 55 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Fan-cooled
Maximum Measurable Energy: 200 J
Absorber: HD
Maximum Pulse Width: 430 ms
Minimum Repetition Period: 12 s
Noise Equivalent Power: 45 mW
Typical Rise Time: 5 s
Typical Power Sensitivity: 0.03 mV/W
Power Calibration Uncertainty: ±2.5 %
Repeatability: ±0.5 %
Maximum Average Power Density: 45 kW/cm²
Maximum Energy Density: 1 J/cm²

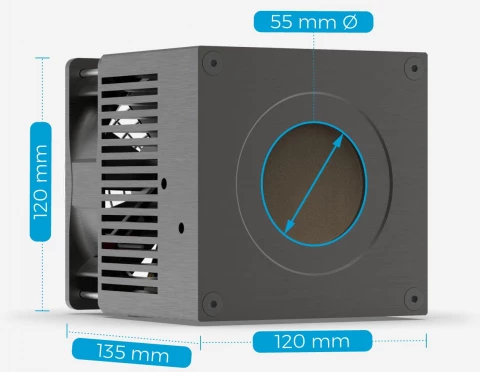

Dimensions: 120H x 120W x 135D mm
Weight: 2.75 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • HIGH DENSITY ABSORBER: The HD absorber is the strongest on the market for use at high powers, presenting both high average power handling and high-power density capabilities

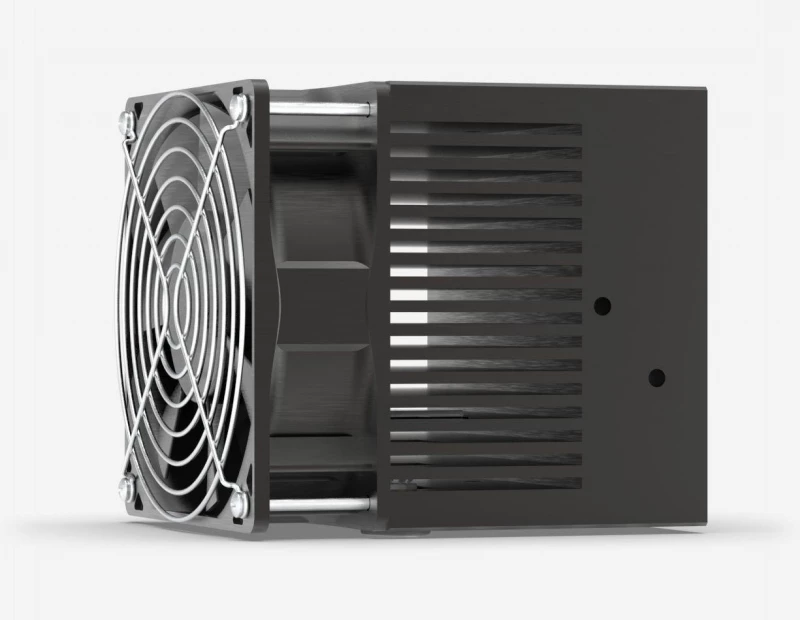

  • NO NEED FOR WATER-COOLING: Unique on the market, measure 600 W of continuous power without the need for water-cooling. Just plug the fan and you are ready to go!
  • SMART INTERFACE: Containing all the calibration data

Applications

Power output measurements of high-power lasers in a wide spectral range

Frequently Asked Questions

What is the UP55G-600F-HD-D0 Thermal Detector used for?
The UP55G-600F-HD-D0 is a Thermal Detector used for Laser Power Measurement.
What is the maximum power that the UP55G-600F-HD-D0 laser power meter can measure?
The UP55G-600F-HD-D0 can measure powers as high as 600W.
Does the UP55G-600F-HD-D0 laser power detector require water-cooling?
No, the UP55G-600F-HD-D0 is unique on the market and can measure 600W of continuous power without the need for water-cooling.
What are some compatible displays and interfaces for the UP55G-600F-HD-D0 laser power meter?
Some compatible displays and interfaces for the UP55G-600F-HD-D0 include MIRO ALTITUDE, MAESTRO, U-LINK (USB), U-LINK (RS-232), INTEGRA, BLU, TUNER, UNO, P-LINK (USB), P-LINK (RS-232), S-LINK-1 (Ethernet), and S-LINK-2 (Ethernet).
What are some features of the UP55G-600F-HD-D0 power meter?
Some features of the UP55G-600F-HD-D0 include a high density absorber, no need for water-cooling, and a smart interface containing all the calibration data.
