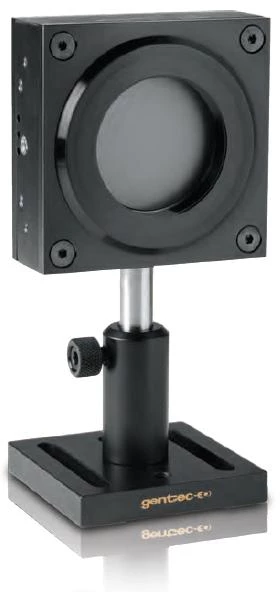

Thumbnail of Gentec-EO - High Power Detectors - UP50N-50H-W9 photo 1

Description

Gentec-EO offers UP50 series high power detectors for industrial and laboratory applications.

Gentec-EO - High Power Detectors - UP50N-50H-W9

Visit the Gentec-EO Store

Specifications

Max Average Power: 50 W
Effective Aperture: 50 mm
Spectral Range: 0.19 – 10 um
Cooling Method: Heatsink
Max Average Power (1 Minute): 85 W

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • MODULAR CONCEPT: Increase the power capability of your detector: 4 different cooling modules
  • VERY HIGH DAMAGE THRESHOLD: 100 kW/cm2 in average power density
  • VERY LARGE APERTURE: 50 mm Ø effective aperture, perfect for the largest beams
  • HIGHEST ENERGY READINGS IN THE SERIES: Measure single shot energy up to 500 J
  • SMART INTERFACE: Containing all the calibration data

Applications

  • Power output measurements of high power lasers in a wide spectral range
  • Spectroscopy
  • Inspection and metrology

Frequently Asked Questions

What is the UP50N-50H-W9 laser power detector used for?
The UP50N-50H-W9 detector is used for power output measurements of high power lasers in a wide spectral range.
What is the effective aperture of the laser power detector?
The effective aperture of the detector is 50 mm Ø, which is perfect for the largest beams.
Can the power capability of the detector be increased?
Yes, the power capability of the detector can be increased with 4 different cooling modules due to its modular concept.
What is the highest energy reading that can be measured with this laser power meter?
The highest energy reading that can be measured with the detector is up to 500 J for single shot energy.
What is the damage threshold of this laser power detector?
The detector has a very high damage threshold of 100 kW/cm2 in average power density.

Got more questions? Use the inquiry form to ask the supplier directly.
