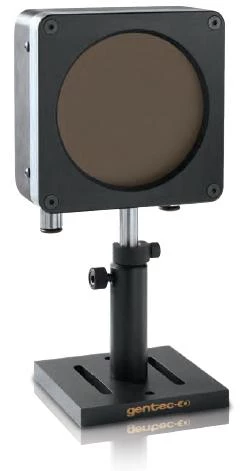

Thumbnail of Gentec-EO - High Power Detector - HP60A-10KW-GD photo 1

Description

Gentec-EO offers a power detector for measuring high or super high laser powers in the range from 100W - 12,000W. HP series power meters can be used in a wide range of applications for detecting light from visible (VIS) to mid infrared (MIR).

Gentec-EO - High Power Detector - HP60A-10KW-GD

Visit the Gentec-EO Store

Specifications

Max Average Power: 10000 W
Effective Aperture: 100 mm
Spectral Range: 0.8 – 12 um
Cooling Method: Water

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

1. HIGH POWER HANDLING
Handles up to 12 kW of continuous power with our standard models. Custom models
available for higher powers (See SUPER HP).

2. STABLE READING
Less sensitive to variations in water cooling temperature than any other high power
water-cooled meter on the market.

3. LARGE APERTURE
Our standard HP models (4KW and 12KW) have a very large effective aperture of
100 mm Ø to accomodate large laser beams. Larger apertures with various shapes are available upon request (See SUPER HP).

4. SPECIAL MODEL FOR SMALL BEAMS
10 kW model with reflective cone available. Perfect for small beams (with Avg Power
Densities up to 10 kW/cm2 @ 10 kW).

5. DIRECT USB CONNECTION TO A PC
Each head comes with both a DB-15 connector (for use with a Gentec-EO monitor)
and a USB2.0 output for direct connection to a PC.

Applications

  • High power laser output measurements in 100W-12kW range
  • Laboratory and industrial applications in a wide spectral range from visible (VIS) to mid-infrared (MIR).

Frequently Asked Questions

What is the power range of Gentec-EO's High Power Detector?
The power range of Gentec-EO's High Power Detector is from 100W to 12,000W.
What is the effective aperture of the standard HP laser power meter models?
The standard HP models have a very large effective aperture of 100 mm Ø to accommodate large laser beams.
Is the Gentec-EO High Power Detector sensitive to variations in water cooling temperature?
No, the Gentec-EO High Power Detector is less sensitive to variations in water cooling temperature than any other high power water-cooled meter on the market.
Does Gentec-EO offer a special laser power meter model for small beams?
Yes, Gentec-EO offers a 10 kW model with reflective cone available, which is perfect for small beams with Avg Power Densities up to 10 kW/cm2 @ 10 kW.
What are the applications of Gentec-EO's High Power Detector?
The applications of Gentec-EO's High Power Detector include high power laser output measurements in 100W-12kW range, laboratory and industrial applications in a wide spectral range from visible (VIS) to mid-infrared (MIR).
