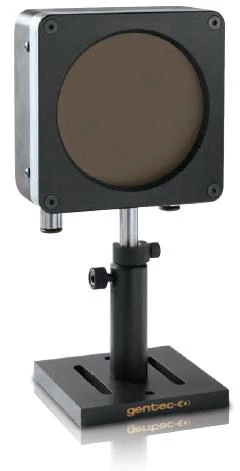

Thumbnail of Gentec-EO - High Power Detector - HP100A-12KW-HD photo 1

Description

Gentec-EO offers a power detector for measuring high or super high laser powers in the range from 100W - 12,000W. HP series power meters can be used in a wide range of applications for detecting light from deep ultraviolet (DUV) to far infrared (FIR).

Gentec-EO - High Power Detector - HP100A-12KW-HD

Visit the Gentec-EO Store

Specifications

Max Average Power: 12000 W
Effective Aperture: 100 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Water

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

1. HIGH POWER HANDLING
Handles up to 12 kW of continuous power with our standard models. Custom models
available for higher powers (See SUPER HP).

2. STABLE READING
Less sensitive to variations in water cooling temperature than any other high power
water-cooled meter on the market.

3. LARGE APERTURE
Our standard HP models (4KW and 12KW) have a very large effective aperture of
100 mm Ø to accomodate large laser beams. Larger apertures with various shapes are available upon request (See SUPER HP).

4. SPECIAL MODEL FOR SMALL BEAMS
10 kW model with reflective cone available. Perfect for small beams (with Avg Power
Densities up to 10 kW/cm2 @ 10 kW).

5. DIRECT USB CONNECTION TO A PC
Each head comes with both a DB-15 connector (for use with a Gentec-EO monitor)
and a USB2.0 output for direct connection to a PC.

Applications

  • High power laser output measurements in 100W-12kW range
  • Laboratory and industrial applications in a wide spectral range from deep ultraviolet (DUV) to far infrared (FIR).

Frequently Asked Questions

What is the power range that the Gentec-EO High Power Detector can measure?
The power detector can measure high or super high laser powers in the range from 100W - 12,000W.
What is the effective aperture of the standard HP laser power meter models?
The standard HP models (4KW and 12KW) have a very large effective aperture of 100 mm Ø to accommodate large laser beams.
Is the Gentec-EO High Power Detector sensitive to variations in water cooling temperature?
No, the power detector is less sensitive to variations in water cooling temperature than any other high power water-cooled meter on the market.
What kind of connection options are available for the Gentec-EO High Power Detector?
Each head comes with both a DB-15 connector (for use with a Gentec-EO monitor) and a USB2.0 output for direct connection to a PC.
Is there a special laser power meter model available for small beams?
Yes, a 10 kW model with reflective cone is available and is perfect for small beams (with Avg Power Densities up to 10 kW/cm2 @ 10 kW).

Got more questions? Use the inquiry form to ask the supplier directly.
