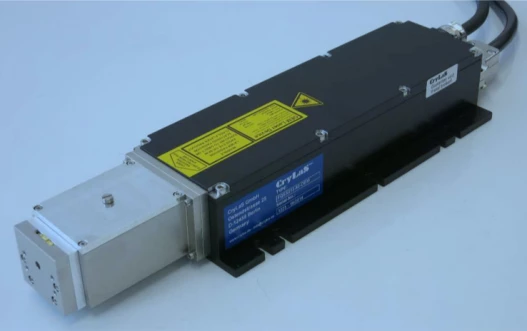

FQSS 213-50 Diode-Pumped Q-Switched Solid-State Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
The FQSS 213-50 is a cutting-edge diode pumped passively Q-switched solid-state laser designed to deliver exceptional performance across a range of scientific and industrial applications. Engineered by CryLaS GmbH, this laser operates at a wavelength of 213 nm, providing precision and reliability that are essential in fields such as biology, biomedicine, chemistry, and analytics. Its compact design and robust construction make it an ideal choice for professionals seeking high-quality laser technology.
This laser system is distinguished by its ability to produce single pulses with a pulse width of less than 1.3 nanoseconds, ensuring high peak power and energy efficiency. The FQSS 213-50 maintains a pulse energy greater than 50 µJ across a pulse repetition rate ranging from 1 to 60 Hz, making it versatile for various research and development settings. Its beam characteristics, including a full angle beam divergence of less than 3.0 mrad and a beam ellipticity of less than 2:1, ensure precise targeting and minimal beam distortion.
With a focus on user convenience, the laser system features a quick warm-up time of under 10 minutes and operates efficiently within a temperature range of 18 to 38 °C. The FQSS 213-50 is equipped with both RS 232 and USB interfaces, allowing seamless integration into existing systems. For enhanced safety and operational flexibility, optional features such as a manual shutter or electrical beam blocker, and an external telescope are available. Designed with user safety in mind, the laser is classified as Class 4 according to IEC 60825-1:2007 standards.
The laser head's compact dimensions of 298 x 65 x 46 mm facilitate easy installation and integration into various setups. Additionally, the system's low electrical power consumption of less than 90 W and compatibility with a wide range of line voltages (90 - 265 V AC or 24 V DC) ensure energy efficiency and adaptability. Whether for standalone operation or integration into complex systems, the FQSS 213-50 offers unparalleled performance and reliability.
FQSS 213-50 Diode-Pumped Q-Switched Solid-State Laser
Specifications |
|
|---|---|
| Avg. Power: | 3 W |
| Wavelength: | 213 nm |
| Repetition Rate: | 11 – 0.06 kHz |
| Spatial Mode (M^2): | 1 |
| Pulse Duration: | 1.3 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Energy / Pulse: | 50 uJ |
Features
- Ultra-Short Pulse Duration: Achieve precision with pulse widths of less than 1.3 ns, ideal for sensitive applications in biology, biomedicine, chemistry, and analytics.
- High Peak Power: Delivers a peak power of 40 kW at frequencies ranging from 1 to 60 Hz, ensuring effective performance for demanding tasks.
- Versatile Pulse Repetition Rate: Operates at a flexible pulse repetition rate of 1 to 60 Hz with external trigger capability, adapting to various application needs.
- Exceptional Beam Quality: Features a beam divergence of less than 3.0 mrad and beam ellipticity of less than 2:1, providing high-quality, focused laser output.
- Consistent Performance: Maintains long-term pulse energy stability within ±5% over 6 hours and pulse-to-pulse stability of less than 2% rms.
- High Energy Output: Provides pulse energy greater than 50 µJ, ensuring sufficient power for diverse applications.
- Advanced Polarization: Offers a polarization ratio greater than 100:1, horizontal, optimizing the laser for specific scientific and industrial uses.
- Efficient Power Consumption: Consumes less than 90 W of electrical power, compatible with 90 - 265 V AC or 24 V DC power sources.
- Quick Setup: Features a warm-up time of less than 10 minutes, minimizing downtime and enhancing productivity.
- Compact Design: The laser head measures 298 x 65 x 46 mm, allowing for easy integration into various systems.
- Comprehensive Interface Options: Equipped with RS 232 and USB interfaces for seamless connectivity and control.
- Safety and Compliance: Classified as a class 4 laser according to IEC 60825-1:2007, with optional manual shutter or electrical beam blocker for enhanced safety.
- Optional Enhancements: Includes options for an external telescope (e.g., M=5) and a standalone system that is CDRH compliant, featuring a key switch, heat sink, and manual beam shutter.
Applications
- Biomedical Research: Precise UV laser pulses for fluorescence and microscopy
- Biology: Cellular and molecular studies requiring UV excitation
- Analytical Chemistry: Spectroscopy and trace analysis with UV excitation
- Material Science: UV laser processing and micro-machining
- OEM Integration: Suitable for incorporation into custom laser systems
- Quality Control & Inspection: High-resolution UV imaging and diagnostics
Frequently Asked Questions
The CryLaS FQSS213-50 laser system is used in biology, biomedicine, chemistry, analytics, micromachining, and environmental technology.
The CryLaS FQSS213-50 laser system is classified as 4/IV according to IEC 60825-1:2007.
The pulse width of the CryLaS FQSS213-50 laser system is less than 1.3 ns.
The peak power of the CryLaS FQSS213-50 laser system is 40 kW at 1-60 Hz.
The CryLaS FQSS213-50 laser system emits at a wavelength of 213 nm.
