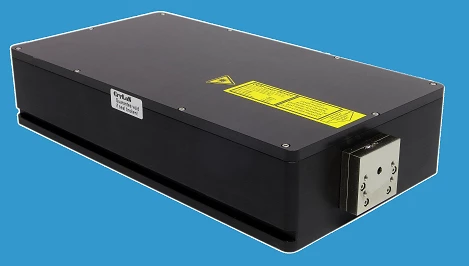

eMOPA 355-100 Diode-Pumped Q-Switched Solid State Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
The eMOPA 355-100 from CryLaS GmbH is an advanced diode-pumped, passively Q-switched solid-state laser designed for precision and reliability. With a wavelength of 355 nm, this laser is engineered to deliver high-performance results in a compact form factor. It operates with a single pulse and offers pulse durations between 0.9 to 1.3 nanoseconds, making it ideal for applications that require precision timing and energy delivery. The laser supports a pulse-on-demand feature, which allows for a repetition rate of up to 1 kHz, ensuring flexibility and control in various operational settings.
This laser system is recognized for its exceptional peak power, exceeding 80 kW at 1000 Hz, and pulse energy greater than 100 µJ at the same frequency. The beam quality is maintained with a divergence of less than 3.5 mrad and a beam ellipticity ratio of less than 2:1, ensuring a focused and consistent output. The laser's spatial mode is TEM00, which is optimal for applications requiring a high-quality beam profile. Additionally, the polarization ratio is greater than 100:1, vertical, which contributes to the laser's precision and efficiency.
Designed for ease of integration and operation, the eMOPA 355-100 features a USB/RS232 interface and BNC connector for external triggering. The system's electrical power consumption is less than 100 W, and it operates within a line voltage range of 90 to 265 V AC, making it adaptable to various power environments. The laser head is compact, with dimensions of 56 x 140 x 265 mm, and the stand-alone controller unit measures 129.5 x 177 x 180 mm, allowing for convenient installation in diverse laboratory or industrial settings.
With a warm-up time of less than 10 minutes and an operating temperature range of 22 to 32 °C, the eMOPA 355-100 is designed for quick deployment and stable performance. This laser system also offers optional features such as multimode fiber coupling, synchronization signal output, and an external telescope for beam expansion, providing users with the flexibility to tailor the system to their specific needs. The eMOPA 355-100 is classified as a Class 3B laser according to IEC 60825-1, ensuring compliance with international safety standards.
eMOPA 355-100 Diode-Pumped Q-Switched Solid State Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.1 W |
| Wavelength: | 355 nm |
| Repetition Rate: | 1 – 1 kHz |
| Spatial Mode (M^2): | 1 |
| Pulse Duration: | 1 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Energy / Pulse: | 100 uJ |
Features
- High Peak Power: Generates >80 kW peak power at 1 kHz for high-intensity applications.
- Short Pulse Duration: Delivers pulses with widths between 0.9 – 1.3 ns for precise material interaction.
- Excellent Beam Quality: TEM₀₀ spatial mode with <3.5 mrad divergence ensures optimal focusability.
- Pulse-on-Demand Operation: Supports single-shot to 1 kHz repetition with external triggering.
- Stable Performance: Pulse energy stability <2% and drift <±3% over six hours of operation.
- Compact Design: Small footprint laser head (56 x 140 x 265 mm) suitable for integration.
- Versatile Interface: USB/RS232 communication and TTL external trigger via BNC connector.
- Optional Accessories: Fiber coupling, beam expanders, attenuators, and fast synchronization outputs.
Applications
- Biology & Biomedicine: Ideal for UV-induced fluorescence and imaging applications.
- Chemistry & Analytics: Suitable for precise spectroscopy, analysis, and detection systems.
- Material Processing: Enables micro-machining, marking, and thin film removal with high accuracy.
- Laser-Induced Breakdown Spectroscopy (LIBS): Provides reliable pulses for elemental analysis.
- Scientific Research: Supports experiments requiring stable, high-peak-power UV pulses.
Frequently Asked Questions
The CryLaS eMOPA 355-100 laser is used for micromachining, marking of ophthalmic glasses and polymers, bio-photonics, and life sciences.
The pulse frequency of the CryLaS eMOPA 355-100 laser is externally or internally triggered from single shot up to 1kHz.
The electrical power consumption of the CryLaS eMOPA 355-100 laser is less than 100 W.
The peak power of the CryLaS eMOPA 355-100 laser is greater than 80 kW at 1000 Hz.
The warm-up time for the CryLaS eMOPA 355-100 laser is less than 10 minutes.
