eMOPA 266-40 Diode Pumped Q-Switched Laser 266 nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description

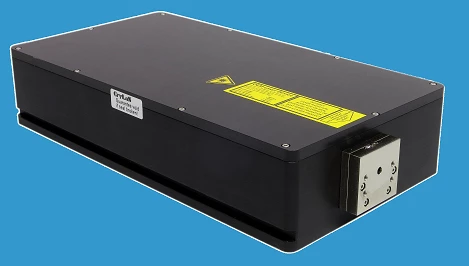

The eMOPA 266-40 from CryLaS GmbH is a cutting-edge diode-pumped, passively Q-switched solid-state laser. Designed for precision and reliability, this laser operates at a wavelength of 266 nm, making it an ideal choice for various high-demand applications. With its capability to deliver single pulses with a duration of less than 1.0 ns, the eMOPA 266-40 ensures exceptional performance in critical environments.
Engineered with advanced technology, the eMOPA 266-40 offers a peak power output exceeding 40 kW at a pulse repetition rate of up to 1 kHz. The laser's beam quality is highlighted by a low beam divergence of less than 1.5 mrad and a beam ellipticity of less than 1.5:1, ensuring precise targeting and minimal distortion. Its robust design and superior optical characteristics make it a preferred choice for professionals in fields such as biology, biomedicine, chemistry, and analytical research.
The eMOPA 266-40 is housed in a compact form factor, with the laser head measuring 56 x 140 x 265 mm. Its efficient power consumption, requiring less than 100 W, and a versatile line voltage range of 90 - 265 V AC, make it adaptable to various operational settings. Additionally, the laser system features user-friendly interfaces, including USB and RS232 connectivity, along with options for external triggering via BNC connectors, enhancing its usability and integration into existing systems.
Safety and stability are paramount in the design of the eMOPA 266-40. Classified as a Class 4 laser according to IEC 60825-1 standards, it comes equipped with necessary safety labels and measures. The laser also boasts impressive pulse-to-pulse energy stability and minimal energy drift over extended periods, ensuring consistent performance. With a quick warm-up time of less than 10 minutes and an operating temperature range of 22 - 32 °C, the eMOPA 266-40 is ready to meet the demands of rigorous scientific and industrial applications.
eMOPA 266-40 Diode Pumped Q-Switched Laser 266 nm
Specifications |
|
|---|---|
| Avg. Power: | 0.04 W |
| Wavelength: | 266 nm |
| Repetition Rate: | 1 – 1 kHz |
| Spatial Mode (M^2): | 1 |
| Pulse Duration: | 1 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Energy / Pulse: | 40 uJ |
Features
- High Peak Power Output: Delivers peak power exceeding 40 kW for demanding UV applications.
- Short Pulse Width: Provides < 1.0 ns pulse width for high-precision tasks.
- Excellent Beam Quality: TEM00 mode with low divergence (< 1.5 mrad) and ellipticity (< 1.5:1).
- Flexible Triggering: Supports both external and internal trigger modes for versatile operation.
- Stable Energy Output: Ensures < ±3% energy drift over 6 hours and < 2% pulse-to-pulse stability.
- Compact and Efficient Design: Low electrical consumption (< 100 W) with minimal footprint.
- Optional Configurations: Available with fiber coupling, wavelength switching, beam expansion, or electrical beam blocker.
Applications
- Biological Research: Suitable for advanced UV-induced fluorescence and microscopy applications.
- Biomedical Instrumentation: Ideal for precise tissue analysis, photochemistry, and diagnostic tools.
- Chemical Analysis: Enables accurate spectroscopic and material characterization experiments.
- Analytical Instrumentation: Integrated into OEM or laboratory systems requiring nanosecond UV pulses.
Frequently Asked Questions
The CryLaS eMOPA 266-40 laser is used for micromachining, marking of ophthalmic glasses and polymers, bio-photonics, and life sciences.
The pulse frequency of the CryLaS eMOPA 266-40 laser is externally or internally triggered from single shot up to 1kHz.
The polarization ratio of the CryLaS eMOPA 266-40 laser is greater than 100:1, vertical.
The peak power of the CryLaS eMOPA 266-40 laser is greater than 40 kW at 1000 Hz.
The size of the CryLaS eMOPA 266-40 laser head is 56 x 140 x 265 mm (H x W x L).
