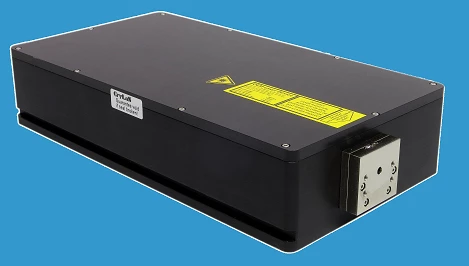

eMOPA 213-20 Diode Pumped Q-Switched Solid State Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
The eMOPA 213-20 is a cutting-edge diode-pumped, passively Q-switched solid-state laser designed to deliver high precision and performance. Operating at a wavelength of 213 nm, this laser system offers exceptional single-pulse capabilities with pulse durations of less than 1.0 ns. Its innovative design supports both external and internal triggering, providing flexibility and control for a variety of demanding applications.
Engineered with precision, the eMOPA 213-20 boasts a peak power output of over 20 kW at a repetition rate of 1000 Hz. Its pulse energy exceeds 20 µJ, ensuring robust performance for intensive tasks. The laser's beam characteristics include a divergence of less than 3 mrad and an ellipticity ratio of less than 3:1, contributing to its exceptional beam quality and stability.
Designed for reliability, the eMOPA 213-20 features a compact laser head measuring 56 x 140 x 265 mm and a stand-alone unit size of 129.5 x 177 x 180 mm. With an electrical power consumption of under 100 W and compatibility with a wide range of line voltages, it integrates seamlessly into various environments. Its quick warm-up time of less than 10 minutes and operating temperature range of 22 - 32 °C ensure consistent performance across different conditions.
Safety is paramount, and the eMOPA 213-20 is classified as a class 4 laser according to IEC 60825-1 standards. This high level of safety classification ensures that the laser is equipped to handle the rigorous demands of professional environments while maintaining the highest safety standards.
eMOPA 213-20 Diode Pumped Q-Switched Solid State Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.02 W |
| Wavelength: | 213 nm |
| Repetition Rate: | 1 – 1 kHz |
| Spatial Mode (M^2): | 1 |
| Pulse Duration: | 1 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Energy / Pulse: | 20 uJ |
Features
- 213 nm UV Output: Delivers deep ultraviolet wavelength ideal for spectroscopy and analytics.
- High Peak Power: Generates >20 kW peak power with pulse energies >20 µJ at 1 kHz.
- Ultra-Short Pulses: Provides <1.0 ns pulse width for high temporal resolution.
- Single Shot to 1 kHz: Operates in pulse-on-demand mode up to 1 kHz repetition rate.
- Excellent Beam Quality: TEM00 mode with low divergence (<3 mrad) and ellipticity <3:1.
- Stable Performance: Pulse-to-pulse energy stability <2% with drift <±5% over 6 hours.
- Flexible Triggering: Supports external/internal triggering with fast synchronization.
- Compact and Efficient: Small footprint and <100 W power consumption for OEM integration.
- Easy Integration: USB, RS232, BNC, and SMB interfaces for versatile system control.
Applications
- Biological Analysis: Ideal for UV-induced fluorescence and cell analysis techniques.
- Biomedical Research: Enables precise ablation and microprocessing in life sciences.
- Chemical Analytics: Suitable for spectroscopic studies and material characterization.
- Ultraviolet Spectroscopy: Delivers reliable UV pulses for high-resolution measurements.
- Micromachining and Surface Structuring: Facilitates precise material modification at the microscale.
Frequently Asked Questions
The E-MOPA laser series is based on a diode-pumped passively Q-switched Nd: YAG laser (master oscillator) which is combined by a diode-pumped optical amplifier (power amplifier).
Typical areas of application for E-MOPA lasers are micromachining, marking of ophthalmic glasses and polymers, bio-photonics and life sciences.
Various models with pulse energies up to 200µJ and average powers up to 200mW are available.
The peak power of the laser at 1000 Hz is greater than 20 kW.
The warm-up time for the laser is less than 10 minutes.
