Description

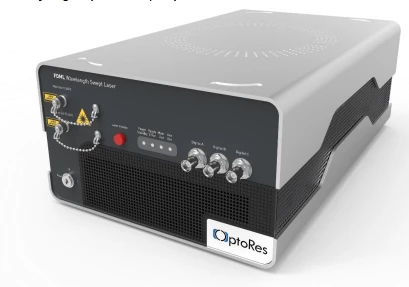

The NG-FDML Multi-MHz Swept Laser by Optores is a groundbreaking innovation in the field of optical coherence tomography (OCT). As the world’s only swept laser capable of achieving sweep rates exceeding one million sweeps per second, it sets a new standard for multi-megahertz optical coherence tomography (MHz-OCT). This laser is meticulously engineered for record sweep speeds, offering a long coherence length, broad sweep range, and exceptionally high optical output power.
At the core of the NG-FDML laser is the all-fiber Fourier-domain mode-locking (FDML) technology. This advanced technology allows for user-adjustable sweep ranges and output power, providing flexibility and precision in various applications. The laser also includes a variety of programmable synchronization and control signals, ensuring seamless integration into complex systems. With less than 3 dB signal drop up to the full usable image range, it maintains signal integrity across its operational spectrum.
The NG-FDML laser is available at three central wavelengths—1060 nm, 1310 nm, and 1550 nm—catering to diverse application needs. Its network-based remote control, supported by LabVIEW, offers ease of use and adaptability. The laser's massive output power, typically exceeding 100 mW, ensures it meets the demands of the most challenging applications. With its world-record sweep speeds of up to 3 MHz, the NG-FDML laser is a powerful tool for researchers and professionals seeking cutting-edge performance in optical coherence tomography.
NG-FDML Multi-MHz Swept Laser 1550 nm
Specifications |
|
|---|---|
| Center Wavelength: | 1550 nm |
| Sweep Rate: | 3520 kHz |
| Tuning Range: | 120 nm |
| Avg. Output Power: | 200 mW |
| Coherence Length: | 10 mm |
| Linewidth: | <10 pm |
| Wavelength Stability: | Other (not specified) |
| Side Mode Suppression Ratio (SMSR): | Other (not specified) |
| Fiber Connector Type: | Other (not specified) |
Features
- World-Record Sweep Speeds: Achieve sweep rates of up to 3 MHz, enabling multi-megahertz optical coherence tomography (MHz-OCT).
- Multiple Central Wavelengths: Available at 1060 nm, 1310 nm, and 1550 nm to suit various applications.
- Long Coherence Length: Ensures less than 3 dB signal drop up to the full usable image range (1.5 GHz fringe frequency).
- Large Wavelength Sweep Range: Provides high-resolution OCT with a broad sweep range.
- Massive Output Power: Delivers sufficient power for demanding applications, typically greater than 100 mW.
- Advanced Synchronization: Features built-in sweep trigger output, user-programmable IO (TTL) channels, and PLL extension for ADC sample clock generation and X/Y beam scanner control.
- Fully Adjustable: User-adjustable sweep range and output power, with programmable synchronization signal outputs.
- Remote Control: Network-based remote control with LabVIEW support via USB and Ethernet.
- Optical Connectivity: User-configurable synchronization I/O with TTL signal levels, BNC, and SMA connectors.
Applications
- Optical Coherence Tomography (OCT): Enables MHz-OCT for ultra-fast imaging.
- Biomedical Imaging: High-resolution visualization of tissue structures in real time.
- Industrial Inspection: Rapid non-destructive testing with superior imaging depth.
- Ophthalmology: Advanced retinal and anterior segment imaging.
- Research & Development: Supports next-generation optical imaging experiments.
- 3D Imaging & Microscopy: Delivers real-time volumetric imaging capabilities.
Frequently Asked Questions
The Optores NG-FDML Multi-MHz Swept Laser 1550 nm has a long coherence length.
The Optores NG-FDML Multi-MHz Swept Laser 1550 nm has very high optical output power, typically greater than 100 mW.
The Optores NG-FDML Multi-MHz Swept Laser 1550 nm has a sweep rate of more than 1 million sweeps per second.
The Optores NG-FDML Multi-MHz Swept Laser 1550 nm has a large wavelength sweep range for high-resolution OCT.
The Optores NG-FDML Multi-MHz Swept Laser 1550 nm has a variety of programmable synchronization and control signals, including a built-in sweep trigger output and user programmable IO (TTL) channels.
