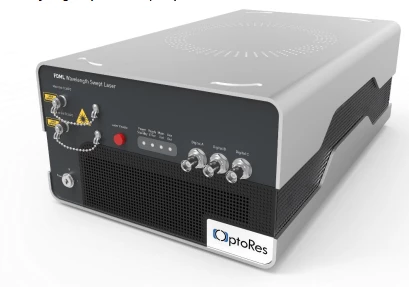

NG-FDML Multi-MHz Swept Laser 1060 nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2020
Description
The Optores NG-FDML Multi-MHz Swept Laser is the world’s only laser system capable of sweep rates exceeding 1 million sweeps per second, enabling cutting-edge multi-megahertz optical coherence tomography (MHz-OCT). Engineered with Fourier-Domain Mode-Locking (FDML) technology, this advanced laser provides record-breaking sweep speeds of up to 3 MHz, ensuring unmatched imaging performance for research and industrial applications.
The NG-FDML offers a long coherence length, maintaining less than 3 dB signal drop across its full usable imaging range (1.5 GHz fringe frequency). With a broad wavelength sweep range and high optical output power (typically >100 mW), it delivers the precision and reliability required for demanding OCT systems.
Users benefit from fully adjustable sweep range and output power, along with programmable synchronization signal outputs, ensuring flexibility for a wide variety of applications. Advanced synchronization capabilities, including built-in sweep trigger outputs and PLL extension for ADC sample clock generation, further enhance system integration.
Available at 1060 nm, 1310 nm, or 1550 nm, the NG-FDML is designed for versatility, while remote control via USB and Ethernet with LabVIEW support ensures streamlined operation.
NG-FDML Multi-MHz Swept Laser 1060 nm
Specifications |
|
|---|---|
| Center Wavelength: | 1060 nm |
| Sweep Rate: | 2800 kHz |
| Tuning Range: | 100 nm |
| Avg. Output Power: | 60 mW |
| Coherence Length: | 10 mm |
| Linewidth: | <10 pm |
| Wavelength Stability: | Other (not specified) |
| Side Mode Suppression Ratio (SMSR): | Other (not specified) |
| Fiber Connector Type: | Other (not specified) |
Features
- World's Only Multi-MHz Swept Laser: The Optores NG-FDML is the only swept laser capable of achieving sweep rates of over 1 million sweeps per second, ideal for multi-megahertz optical coherence tomography (MHz-OCT).
- High Sweep Speed: Designed for record sweep speeds, reaching up to 3 MHz, ensuring rapid data acquisition.
- Long Coherence Length: Maintains signal integrity with less than 3 dB signal drop up to the full usable image range (1.5 GHz fringe frequency).
- Large Wavelength Sweep Range: Offers a broad sweep range for high-resolution OCT, enhancing imaging capabilities.
- Advanced Synchronization: Features built-in sweep trigger output, user-programmable IO (TTL) channels, and PLL extension for ADC sample clock generation and X/Y beam scanner control.
- Fully Adjustable: User-adjustable sweep range and output power, with programmable synchronization signal outputs for tailored performance.
- Multiple Central Wavelengths: Available at 1060 nm, 1310 nm, and 1550 nm to suit various applications.
- Massive Output Power: Provides sufficient power for demanding applications, typically exceeding 100 mW.
- Remote Control Capabilities: Network-based remote control with LabVIEW support, accessible via USB and Ethernet.
- Compact Design: Mechanical dimensions of 40.3 x 24.7 x 14.7 cm, excluding connectors, for easy integration into various setups.
Applications
- Optical Coherence Tomography (OCT): Enables multi-megahertz B-scan imaging for medical and industrial diagnostics.
- Biomedical Imaging: Ideal for high-speed in vivo imaging with exceptional resolution and depth.
- Industrial Inspection: Supports precision imaging in materials analysis and defect detection.
- Optical Metrology: Enhances measurement accuracy with high-speed sweep capability.
- Research and Development: Provides versatile functionality for experimental optical systems.
Frequently Asked Questions
Yes, the Optores NG-FDML Multi-MHz Swept Laser has user-adjustable sweep range and output power.
The Optores NG-FDML Multi-MHz Swept Laser has a long coherence length.
The Optores NG-FDML Multi-MHz Swept Laser has a sweep rate of more than 1 million sweeps per second.
The Optores NG-FDML Multi-MHz Swept Laser has a large wavelength sweep range for high-resolution OCT.
The Optores NG-FDML Multi-MHz Swept Laser has a variety of programmable synchronization and control signals.
