Laser Diode Controller with TEC for Butterfly LD 14 pin Pinout Type 1 or Type 2 Model: SF8XXX-ZIF14
Description

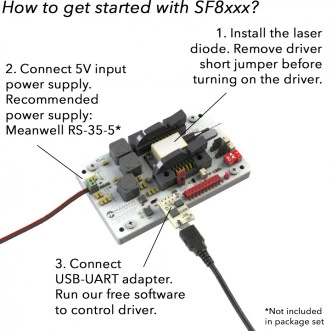

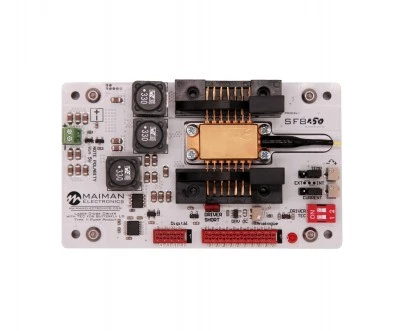

SF8XXX-ZIF14 series laser diode controller is specially designed for laser diodes in butterfly packaging with 14 pin configuration. This driver includes high stability current source (+/-0.01mА) for laser diodes and TEC for precision temperature control through a Peltier element (TEM) (+/-0.01 °C). The driver has an integrated mounting Azimuth socket for butterfly packaged devices and a large heat sink for stable heat dissipation.
Laser Diode Controller with TEC for Butterfly LD 14 pin Pinout Type 1 or Type 2 Model: SF8XXX-ZIF14
Specifications |
|
|---|---|
| Maximum Current LD (I): | 250; 750; 1500 mA |
| Output Voltage LD (V): | 0.5-3 V |
| Current Stability: | 0.1 % |
| Current Set Accuracy: | +/- 1 % |
| Output Current Noise: | 10-15 µA |
| ТЕС Output Power: | ±4 A |
| TEC Output Voltage: | ±4 V |
| TEC Output Current Ripple: | 2 ~ 4 mА |
| TEC Feedback Sensor: | 10 kOhm NTC |
| Temperature Control Range: | +15 to +40 °C |
| Dimensions: | 101.6 x 61 x 28.3 mm |
| Weight: | 142 g |
| User Interface : | RS-232 / UART/ USB/Analog/Trim Potentiometers for Driver Current and TEC Power |
| Laser Diode Protection: | Soft-Start Current Ramp/ Current limit/ Temperature limit/ Reverse current protection/ ESD and transient protection |
| Input Voltage Supply (Vin): | 5 V |
| Warranty Period: | 1-year manufacturer's warranty |
Features
- All-in-One Current Source, Temperature Controller and Mount with Azimuth ZIF Socket for Butterfly
- Compatible with Type 1 and Type 2 Butterfly 14-pin Laser Diode (depending on the model
- LD Low current ripple: ≤ 10uA
- Current stability < 0.1%
- Integrated PID controller, doesn't require setup
- Soft-Start Current Ramp, Current Limit, Temperature Limit for Laser Diode Protection
- Free software
Applications
- Driving/controlling Butterfly Laser Diodes with 14 pin Pinout Type 1 or Type 2 (depending on the model).
- The main fields of application is laser pumping, laser spectroscopy, laboratory test set-ups.
- These devices are an excellent choice for laser diode from II-VI Laser Enterprise, Eblana Photonics, 3SP Technologies, Furukawa and others.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Russia
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
Yes, the SF8XXX-ZIF14 series laser diode controller comes with free software.
The SF8XXX-ZIF14 series laser diode controller features an all-in-one current source, temperature controller and mount with azimuth ZIF socket for butterfly, low current ripple, current stability of less than 0.1%, integrated PID controller, soft-start current ramp, current limit, and temperature limit for laser diode protection.
The main fields of application are laser pumping, laser spectroscopy, and laboratory test set-ups.
The SF8XXX-ZIF14 series laser diode controller is specially designed for laser diodes in butterfly packaging with 14 pin configuration.
The SF8XXX-ZIF14 series laser diode controller is compatible with Type 1 and Type 2 Butterfly 14-pin Laser Diode (depending on the model).
