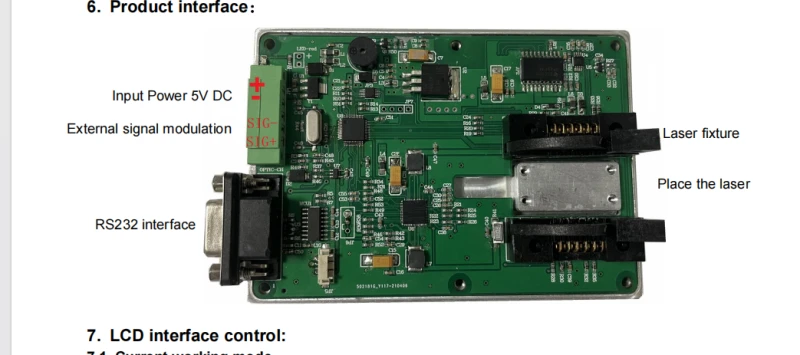

The Butterfly Laser Driver Module from BOX OptronicsTech is a multifunctional device designed to integrate temperature control and semiconductor driving capabilities.

This module incorporates internationally advanced semiconductor laser power supply technology, utilizing high-quality components to ensure superior performance. It features excellent constant current characteristics, stable current output, and robust anti-interference capabilities. The module also includes a stable voltage and constant current dual protection circuit to prevent overvoltage and surges, ensuring the stable operation and extended service life of the laser.

The driver module offers adaptive output voltage up to 2.5V and adjustable output currents ranging from 100mA to 1000mA, with current stability better than 0.1%. It supports software control modes for precise current management and includes a TEC output voltage adjustable from 1V to 5V with a current capacity of 3A. The module is equipped with comprehensive protection features, including overcurrent, overvoltage, overheating, and slow current rise/decrease functions, ensuring high stability and low noise performance.

Suitable for a wide range of applications, the Butterfly Laser Driver Module is ideal for driving semiconductor-pumped lasers and DFB seed sources. It is also well-suited for experimental and research temperature control applications. The module is fully configured, with stable performance and high cost-effectiveness, making it an excellent choice for manufacturers, companies, universities, and research institutions.
