Description

MBL1500A series benchtop laser diode controller is specially designed for laser diodes in Butterfly packaging in both Type 1 and Type 2 14-pin Laser Diode configurations. This controller includes high stability current source (0.01mА) for laser diodes, TEC for precise temperature control through a Peltier element (TEM) (0.01 °C) and mounting with an Azimuth ZIF Socket for Butterfly LD.

Benchtop Laser Diode 1.5A/TEC Controller for Butterfly LD 14 pin Pinout Type 1/ Type 2 Model: MBL1500A v0.0

Visit the Maiman Electronics SL Store

Specifications

Drive Regime: CW, Pulsed
Output Current (max): 1.5 A
Output Voltage (max): 3 V
Output Current LD (I):: 1500 mA
Output Voltage LD (V):: 0.5-3 V
Setpoint Resolution:: 0,1 mA
Rise Time:: <4000 μs
Fall Time:: <8000 μs
Current Stability:: 0.1 %
Current Set Accuracy:: < +/- 1 %
Output Current Noise:: 10-15 µA
ТЕС Output Current:: ±4 А
TEC Output Voltage:: ±4 V
TEC Output Current Ripple:: 2 ~ 4 mА
TEC Feedback Sensor NTC:: 10 kOhm
Temperature Control Range:: +15 to +40 °C
Type Of Cooling:: Air Cooling
Pinout:: Type 1: Pump Laser Diode/Type 2: Telecom Laser Diode

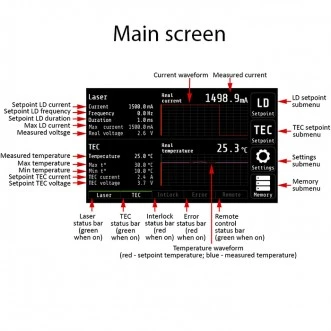

User Interface:: Front Panel (Touch Screen or Buttons)/USB
Laser Diode Protection: Soft-Start Current Ramp/ Current Protection/ Temperature Protection/ Reverse current protection/ ESD and transient protection
Dimensions:: 257 x 271 x 116 mm
Weight:: 3.4 kg
Input Power:: Single Phase 220 VAC, 50Hz
Warranty Period: 1-year manufacturer's warranty

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

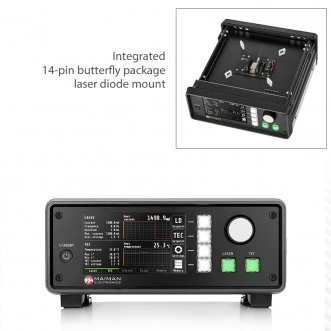

  • All-in-One Current Source, Temperature Controller and Mount with Azimuth ZIF Socket for Butterfly LD
  • Compatible with Type 1 and Type 2 Butterfly 14-pin Laser Diode
  • Controlled locally with Touch Screen or Buttons
  • Controlled remote over USB (Software and Communication Protocol included)
  • Integrated PID controller, doesn\'t require setup
  • Soft-Start Current Ramp, Current Protection, Temperature Protection for Laser Diode
  • Option to save 9 presetting
  • Current stability < 0.1%
  • Ability to set Limits
  • Free software

Applications



  • Driving/controlling Butterfly Laser Diodes 14 pin Pinout Type 1/ Type 2.
  • These controllers are an excellent choice for laboratory test set-ups and have all the necessary protections for laser diodes\' safe operation.
  • These devices are an excellent choice for laser diodes from II-VI Laser Enterprise, Eblana Photonics, 3SP Technologies, Furukawa, Lumentum inc and others.



Frequently Asked Questions

How can I get started with the MBL1500A series benchtop laser diode controller?
To get started with the MBL1500A series benchtop laser diode controller, read the manual thoroughly before powering on the driver. If you have any doubt or suggestion, please do not hesitate to contact the manufacturer.
What are the electrical characteristics of the MBL1500A series benchtop laser diode controller?
The electrical characteristics of the MBL1500A series benchtop laser diode controller include low current ripple ≤ 10 μA, current stability 0.1%, no need to adjust voltage, soft-start, reverse current protection, low current ripple ≤ 2μA, adjustable TEC output voltage limit, and working with sensor NTC 10 kOhm.
What are the features of the MBL1500A series benchtop laser diode controller?
The features of the MBL1500A series benchtop laser diode controller include an all-in-one current source, temperature controller and mount with Azimuth ZIF Socket for Butterfly LD, compatibility with Type 1 and Type 2 Butterfly 14-pin Laser Diode, controlled locally with Touch Screen or Buttons, controlled remote over USB (Software and Communication Protocol included), integrated PID controller, doesn't require setup, soft-start current ramp, current protection, temperature protection for Laser Diode, option to save 9 presetting, current stability < 0.1%, and ability to set limits.
What is the application of the MBL1500A series benchtop laser diode controller?
The MBL1500A series benchtop laser diode controller is used for driving/controlling Butterfly Laser Diodes 14 pin Pinout Type 1/ Type 2. These controllers are an excellent choice for laboratory test set-ups and have all the necessary protections for laser diodes' safe operation.
What is the MBL1500A series benchtop laser diode controller designed for?
The MBL1500A series benchtop laser diode controller is specially designed for laser diodes in Butterfly packaging in both Type 1 and Type 2 14-pin Laser Diode configurations.

Got more questions? Use the inquiry form to ask the supplier directly.
