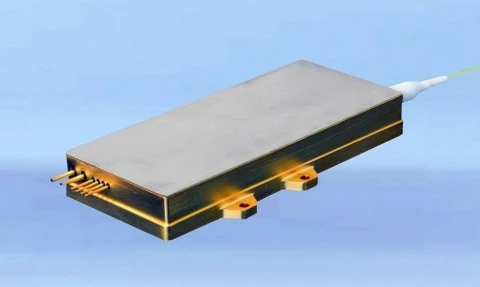

915nm 210W High Brightness Fiber-Coupled Diode Laser
Description
The Fiber-Coupled Diode Laser System by PhotonTec Berlin GmbH offers reliable and efficient laser output coupled into a fiber optic cable. With its compact design and high performance, it is suitable for various applications in research, medical, and industrial fields.
915nm 210W High Brightness Fiber-Coupled Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 210000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | N/A um |
| Additional Wavelength: | 976 nm |
| Wavelength Tolerance: | ± 10 nm |
| Spectral Width (90% Power): | <3.0 nm |
| Wavelength Temp. Coefficient: | 0.3 nm/°C |
| Numerical Aperture: | 0.22 |
| Bare Fiber Length: | 1/2 m |
| Threshold Current (typical): | 1.0 A |
| Operating Current (typical): | 15 A |
| Operating Voltage (typical): | 30 V |
| Slope Efficiency: | 15.0 W/A |
| Power Conversion Efficiency (typical): | 47 % |
| Attenuation: | >40 dB |
| Operating Temperature: | 10-40 °C |
| Storage Temperature: | -20 to +80 °C |
| Operating Humidity: | <75 % |
| Soldering Temperature (10s): | 250 °C |
Features
- Compact and robust design
- High-quality fiber coupling
- Wide range of wavelengths available
- Stable output power
- Easy integration into existing systems
Applications
- Fiber laser pumping
- Material processing
- Medical treatment
- Spectroscopy
- Scientific research
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
External Vendor
Claim PhotonTech Berlin Page to edit and add data
Frequently Asked Questions
The High Brightness Fiber-Coupled Diode Laser has a CW output power of 210W.
The laser uses a 200µm fiber core.
The High Brightness Fiber-Coupled Diode Laser can be used for laser pumping, material processing, and medical treatment.
The wavelength tolerance of the laser is ±10nm.
The laser is an OEM version of a laser diode and is intended only for integration into other equipment. It does not comply with IEC and CDRH requirements, and the customer is responsible for IEC and CDRH certifications of the system that incorporates this industrial laser.
