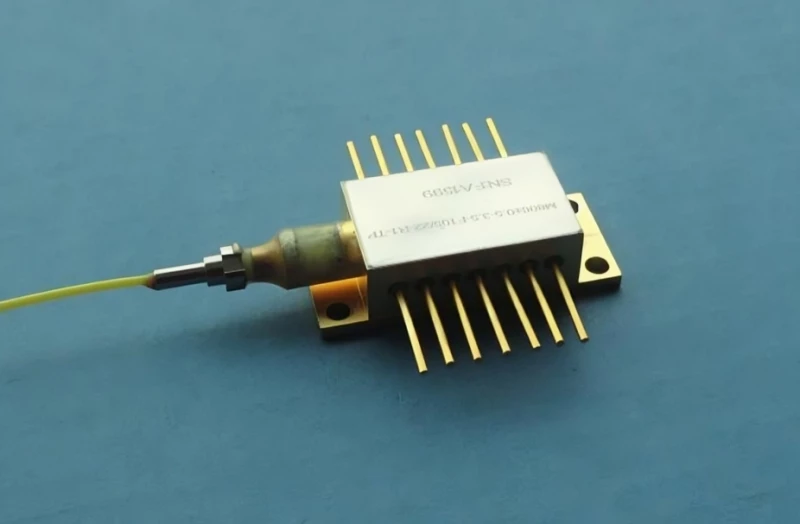

808nm Wavelength Stabilized Diode Laser
Description
The 808nm Wavelength Stabilized Laser Diode by PhotonTec Berlin GmbH provides a reliable solution for solid-state laser pumping applications. With a compact design and integrated TEC, photodiode, and thermistor, it offers stable performance and ease of integration into various systems.
808nm Wavelength Stabilized Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 808 nm |
| Output Power: | 3050 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | N/A um |
| Spectral Width (FWHM): | 0.6 nm |
| Numerical Aperture: | 0.22 |
| Length: | 50 cm |
| Connector: | SMA905 |
| Threshold Current: | 1.0 A |
| Operating Current: | 5.0 A |
| Operating Voltage: | 1.95 A |
| Slope Efficiency: | 1.0 W/A |
| TEC (A/V): | 2.2/8.7 |
| Thermistor (Ω): | 10k@25°C |
| Operating (thermistor) Temperature: | 30-40 °C |
| Operating Humidity: | <75 % |
| Storage Temperature: | -20 to +80 °C |
Features
- Output power: 3.5W
- Fiber core: 105µm
- Integrated TEC, photodiode, and thermistor
- Central wavelength range: 807.0nm to 809.0nm
- Spectral width (FWHM): 0.4nm to 0.6nm
Applications
- Solid-state laser pumping
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
External Vendor
Claim PhotonTech Berlin Page to edit and add data
Frequently Asked Questions
The output power of the 808nm Wavelength Stabilized Diode Laser is 3W.
The applications of the 808nm Wavelength Stabilized Diode Laser are solid state laser pumping and scientific research.
The fiber core diameter of the optical fiber used in the diode laser modules is 105µm.
Yes, the wavelength of the diode laser is stabilized.
The dimensions of the package of the diode laser modules are not provided in the given description.
