Page 16 - CW Semiconductor Lasers

The SCW 1397-CWDM * R laser diode series is a sophisticated 1300 nm high-speed single mode edge-emitting multi-quantum well CWDM laser diode. This advanced laser diode is expertly packaged in a 3-pin TO56 package with a window cap, ensuring robust performance and reliability. Designed specifically for uncooled CWDM applications, the ...

Specifications

Center Wavelength: 1.45 um
Output Power: 8 mW
Center Wavelength: nm
Operating Temp. Range: oC
Threshold Current: 11 mA

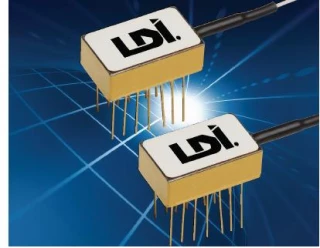

OSI Laser Diode, Inc. presents its High Power SMF coupled laser modules, meticulously engineered to cater to the stringent performance demands of the optical test equipment industry. The SCW Series lasers, known for their high peak optical power, are adept at serving wavelengths ranging from 1310nm to 1650nm. These lasers are housed ...

Specifications

Center Wavelength: 1.665 um
Output Power: 180 mW
Forward Current: 1200 mA
Center Wavelength: nm
Spectral Width: nm
OSI Laser Diode, Inc. presents its high-power SMF coupled laser modules, meticulously engineered to address the rigorous performance requirements of the optical test equipment sector. These advanced laser modules, part of the SCW series, are distinguished by their integration of Fiber Bragg Gratings, which enhance their operational ...

Specifications

Center Wavelength: 1.625 um
Output Power: 30 mW
Spectral Width: 0.5 nm
Forward Current: 600 mA
Threshold Current: 45 mA

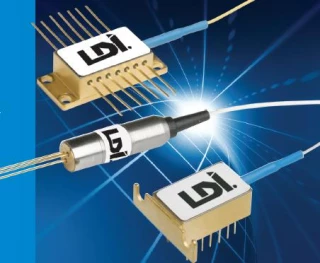

Introducing the TCW TriBiner Series from OSI Laser Diode, Inc. — a pioneering advancement in laser technology designed to cater to the sophisticated demands of the equipment marketplace. These lasers deliver high peak optical power across a spectrum of wavelengths, including 650nm, 850nm, 1310nm, and 1550nm, ensuring versatility and ...

Specifications

Center Wavelength: 1.55 um
Output Power: 225 mW
Output Power: mW
Center Wavelength: nm
Spectral Width (RMS): nm
OSI Laser Diode, Inc.\'s MCW Combiner Series fiber coupled lasers are designed to meet the performance demands of the optical test equipment marketplace. These high peak optical power lasers serve 850nm through 1650nm wavelengths and are available in a compact duplex package.

Specifications

Center Wavelength: 1.625 um
Output Power: 250 mW
Optical Power (Fiber): 50 – 250 mW
Center Wavelength: 850 – 1625 nm
Spectral Width (RMS): 6 – 8 nm

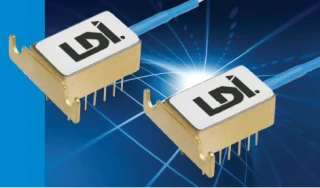

High Power SMF Couple Laser Modules OSI Laser Diode, Inc. presents its High Power SMF couple laser modules, meticulously engineered to fulfill the rigorous performance requirements of the optical test equipment marketplace. These laser modules are available in various wavelengths, ranging from 1310nm to 1650nm, ensuring versatility ...

Specifications

Center Wavelength: 1.665 um
Output Power: 350 mW
Forward Current: 1000 mA
Threshold Current: mA
Spectral Width: nm
**High Power CW Laser Diodes Overview** Discover the power and efficiency of the High Power CW Laser Diodes from OSI Laser Diode Inc., designed to meet the demands of various high-performance applications. These laser diodes are engineered to deliver exceptional output, ranging from 0.5 Watts to 7.0 Watts, making them suitable for a ...

Specifications

Center Wavelength: 0.805 um
Output Power: 7000 mW
Special Width (50% Points): 2.5 nm
Rise/Fall Times: 1 ns
Far Field Beam Divergence: 12 x 40 deg
Discover Unmatched Performance with OSI Laser Diode's Fabry-Perot Lasers OSI Laser Diode, Inc. proudly presents its cutting-edge 1310nm and 1550nm Fabry-Perot lasers, engineered to deliver exceptional output power and wavelength stability. These advanced laser modules are meticulously designed to meet the demands of modern ...

Specifications

Center Wavelength: 1.3 um
Output Power: 2 mW
Module Operating Temperature: C
Maximum Current: 1.2 A
Current For Maximum Capacity: 0.75 A
**OSI Laser Diode, Inc. 1300nm Edge-Emitting LED Overview** Discover the cutting-edge technology of OSI Laser Diode, Inc.'s 1300nm edge-emitting LEDs, designed to deliver exceptional performance in demanding environments. These LEDs stand out for their excellent thermal stability, ensuring consistent power and spectral ...

Specifications

Center Wavelength: 1.3 um
Output Power: 0.08 mW
Spectral Width: 80 nm
Forward Current: 150 mA
Operating Temperature: C

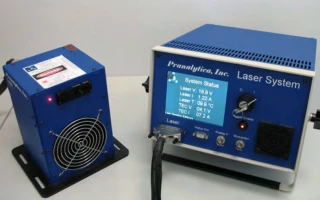

Introducing the Model 1101-XX-CW-YYYY-BF, an OEM version of Pranalytica’s high power, continuous wave, room temperature midwave infrared laser system. This advanced laser system is designed to deliver up to 3.5 W of continuous wave optical power at a wavelength of 4.6 µm, or up to 2.5 W at 4.0 µm, all while operating at room ...

Specifications

Center Wavelength: 4.6 um
Output Power: 3500 mW
Wavelength Range: um
**Continuous Wave Room Temperature High Power QCL System** The Model 1101-XX-CW-YYYY represents a cutting-edge advancement in laser technology, offering a high-power, continuous wave, air-cooled mid-wave or long-wave infrared laser system. This system delivers over 4.0 W of continuous wave optical power, operating seamlessly at room ...

Specifications

Center Wavelength: 9.5 um
Output Power: 2000 mW
Wavelength Range: um
Output Power Range: W
Introducing the Model 1101-XX-CW-YYYY, a cutting-edge continuous wave, room temperature, high power quantum cascade laser (QCL) system. This advanced laser system is designed for optimal performance in both mid-wave and long-wave infrared spectrums, providing exceptional optical power outputs exceeding 4.0 W. With a wavelength range ...

Specifications

Center Wavelength: 7.1 um
Output Power: 1500 mW
Wavelength Range: um
Model 1101-XX-CW-YYYY: Advanced Continuous Wave High Power QCL System Introducing the Model 1101-XX-CW-YYYY, a state-of-the-art continuous wave, air-cooled mid-wave or long-wave infrared laser system. Designed for high performance, this system delivers over 4.0 W of continuous wave, room temperature optical power, covering ...

Specifications

Center Wavelength: 4.6 um
Output Power: 4000 mW
Wavelength Range: um
Output Power Range: W
The MultiLux™-20-40-46-CW-SYST is a cutting-edge laser system designed to deliver high brightness and power across multiple wavelengths, making it an exceptional choice for those seeking advanced infrared laser solutions. This turn-key system offers multiwatt continuous wave power output at room temperature for short wavelength ...

Specifications

Center Wavelength: 2 um
Output Power: 3000 mW
Model: MultiLux™-20-40-46-CW-SYST
MWIR 1 Power Output: Up to 2 W
MWIR 2 Power Output: Up to 3 W
he Model 1101-XX-CW-YYYY represents a pinnacle in laser technology, offering a high power, continuous wave, air-cooled mid-wave or long-wave infrared laser system. Designed to operate seamlessly at room temperature, this advanced system delivers over 4.0 W of continuous wave optical power, depending on the selected wavelength range ...

Specifications

Center Wavelength: 3.7 um
Output Power: 3500 mW
Model: 1101-XX-CW-YYYY
Wavelength Range: 3.7 µm to >12 µm
CW/RT Power Available: 0.5 W to 4.0 W (wavelength dependent)
Model 1101-XX-CW-YYYY represents a significant advancement in continuous wave, room temperature laser technology. This high-power, air-cooled mid-wave or long-wave infrared laser system is designed to deliver exceptional performance without the need for external chillers. With optical power exceeding 4.0 W, this system operates ...

Specifications

Center Wavelength: 4 um
Output Power: 2500 mW
Center Wavelength: 4.0 µm
CW/RT Power Available: 1.0 W
Wavelength Range: 3.7 µm to 12 µm
