OEM QCL Module - CW High Power at Room Temperature
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description

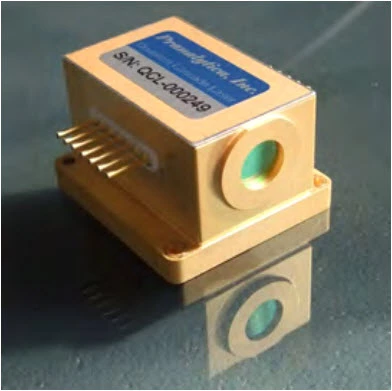

Introducing the Model 1101-XX-CW-YYYY-BF, an OEM version of Pranalytica’s high power, continuous wave, room temperature midwave infrared laser system. This advanced laser system is designed to deliver up to 3.5 W of continuous wave optical power at a wavelength of 4.6 µm, or up to 2.5 W at 4.0 µm, all while operating at room temperature. The laser is housed in a robust butterfly package, which includes a high power quantum cascade laser mounted on a thermoelectric cooler, a thermistor for precise temperature sensing, and optics for optimal collimation of the laser output.
The innovative design of the quantum cascade laser features Pranalytica’s unique patent-pending structures, enabling high power continuous wave operation without the need for external chillers or water cooling systems. Additionally, the laser benefits from Pranalytica’s proprietary high reflectivity facet coating technology, ensuring reliable performance at high power levels. This makes the Model 1101-XX-CW-YYYY-BF an ideal choice for demanding applications that require consistent and powerful laser output.
For optimal performance, the OEM butterfly module requires an effective thermal management system to maintain the package body temperature below 35ºC. The module comes with specific electrical power specifications, and customers must provide a current-regulated power supply for both the QCL and the TEC. The thermistor data is crucial for feedback control of the TEC current, ensuring the QCL operates at a stable temperature. Additionally, this data serves as a safeguard, automatically shutting off power if the QCL device temperature exceeds 45ºC.
It is important to note that when the high power QCLs are used in conjunction with non-Pranalytica electronics drivers, no warranty is provided for the performance or lifespan of the QCL. The OEM version is available in several power output configurations, ranging from 0.5 W to 3.0 W, each designed to operate continuously in ambient conditions with the butterfly package maintained at temperatures below 35ºC. This flexibility allows users to select the power output that best suits their specific needs, ensuring maximum efficiency and effectiveness in their applications.
OEM QCL Module - CW High Power at Room Temperature
Specifications |
|
|---|---|
| Center Wavelength: | 4.6 um |
| Output Power: | 3500 mW |
| Wavelength Range: | um |
Features
- High Power Output: Delivers up to 3.5 W of continuous wave optical power at 4.6 µm or up to 2.5 W at 4.0 µm, making it ideal for demanding applications.
- Room Temperature Operation: Operates efficiently at room temperature, eliminating the need for external chillers or water cooling systems.
- Advanced Design: Features Pranalytica’s unique patent-pending structure designs and proprietary high reflectivity facet coating technology for reliable high power performance.
- Thermal Management: Requires a thermal management system to maintain the butterfly package body at temperatures below 35ºC for optimal performance.
- Integrated Components: Includes a high power quantum cascade laser mounted on a thermoelectric cooler, a thermistor for temperature sensing, and optics for collimating the laser output.
- Feedback Control: The TEC current needs feedback control using thermistor data to maintain a constant QCL operating temperature and prevent overheating.
- OEM Package Options: Available in various power output versions ranging from ≥ 0.5 W to ≥ 3.0 W, allowing for customization based on specific needs.
- Warranty Conditions: No implicit or explicit warranty is provided when operated with electronics drivers other than those supplied by Pranalytica.
- ISO 9001 Certified: Manufactured by Pranalytica, Inc., an ISO 9001 Certified Company, ensuring high quality and reliability.
Applications
- Industrial Gas Sensing: High-sensitivity detection of trace gases.
- Medical Diagnostics: Infrared spectroscopy for non-invasive diagnostics.
- Defense & Security: Mid-IR laser sources for countermeasure systems.
- Scientific Research: Precision spectroscopy and photonics studies.
- Environmental Monitoring: Detection of pollutants and greenhouse gases.
Frequently Asked Questions
The Model 1101-XX-CW-YYYY-BF is an OEM version of Pranalytica’s high power, continuous wave, room temperature midwave infrared laser system.
The power output of the Model 1101-XX-CW-YYYY-BF ranges from ≥ 0.5 W to ≥ 3.5 W, depending on the model.
The Model 1101-XX-CW-YYYY-BF operates at a wavelength of either 4.6 µm or 4.0 µm.
The butterfly package includes the high power quantum cascade laser mounted on a thermoelectric cooler, a thermistor to sense the QCL temperature, and appropriate optics for collimating the output from the QCL.
The Model 1101-XX-CW-YYYY-BF has measured lifetime data for over 3,500 hours with no power degradation at full power.
