LDX-2803-1550: 1550nm 650mW Multimode Laser Diode

Description

These high power laser diodes feature a low threshold current and high slope efficiency resulting in a low operating current enhancing reliability. Available in standard package types and custom packages if needed. Suitable for various opto-electronic applications.

Specifications

Center Wavelength:	1.55 um
Output Power:	650 mW

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Wide Wavelength Range: Available in wavelengths from 900 nm to 1850 nm, catering to diverse applications.
High Output Power: Offers output power options ranging from 800 mW to 9,000 mW, suitable for various power requirements.
Compact Emitter Sizes: Emitter sizes available from 35 µm to 250 µm, ensuring compatibility with different optical systems.
Stable Operating Temperature: Designed to operate efficiently at a standard temperature of 20°C, ensuring consistent performance.
Low Threshold Current: Features low threshold current starting from 200 mA, enhancing energy efficiency.
Efficient Operating Current: Typical operating current ranges from 1,900 mA to 21,500 mA, optimized for performance.
Reliable Operating Voltage: Operating voltage typically ranges from 1.1 V to 1.9 V, ensuring stable operation.
Narrow Beam Divergence: Beam divergence as low as 6° to 8° (FWHM), providing precise beam control.
Consistent Spectral Width: Spectral width (FWHM) maintained at 2 to 9, ensuring high spectral purity.
TE Polarization: All models feature TE polarization, suitable for various optical applications.

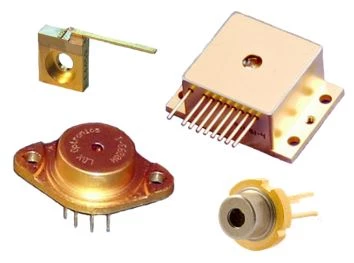

Multiple Package Options: Available in C-mount, B-mount, Q-mount, Chip on Substrate (COS), 9.0mm, TO-3 Package, and HHL Package, offering flexibility in integration.

Applications

Diode laser solutions
Scientific and industrial applications
OEM applications

Request Quote

To: RPMC Lasers, Inc.
Re: LDX-2803-1550: 1550nm 650mW Multimode Laser Diode

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: RPMC Lasers, Inc. ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the wavelength of the LDX-2803-1550 laser diode?

The LDX-2803-1550 laser diode has a wavelength of 1550nm.

What is the output power of the LDX-2803-1550 laser diode?

The LDX-2803-1550 laser diode has an output power of 650mW.

What are the available package types for the LDX-2803-1550 laser diode?

The LDX-2803-1550 laser diode is available in standard package types such as C-mount, B-mount, Q-mount, Chip on Substrate (COS), 9.0mm TO-3 Package, and HHL Package.

What applications is the LDX-2803-1550 fiber-coupled laser diode suitable for?

The LDX-2803-1550 laser diode is suitable for various opto-electronic applications, including diode laser solutions, scientific and industrial applications, and OEM applications.

What is the operating current of the LDX-2803-1550 laser diode?

The operating current of the LDX-2803-1550 laser diode is 800mA.

Got more questions? Use the inquiry form to ask the supplier directly.
