Description
The FVLD-473-1000M is a high-power multimode laser diode designed for various opto-electronic applications. With a continuous wave (CW) output power of 1000mW at 473nm, this laser diode is suitable for a range of uses. It comes in a 9mm TO can with a Zener Diode for convenient installation.

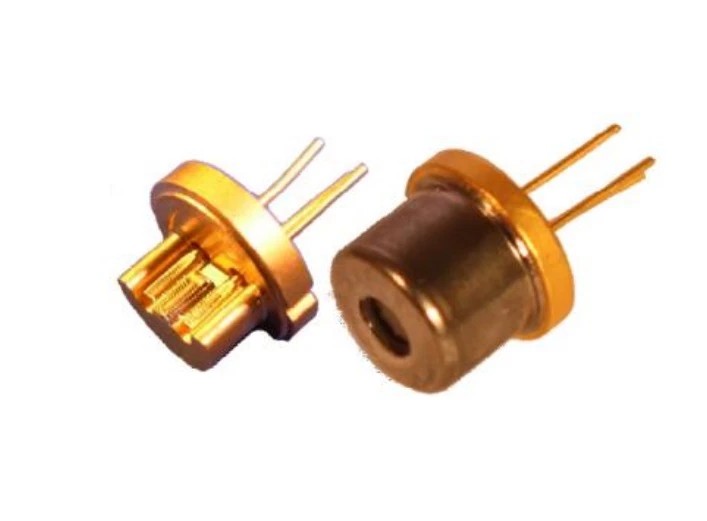

Laser Diode FVLD-473-1000M
Specifications
| Center Wavelength: | 0.478 um |
|---|---|
| Output Power: | 1000 mW |
| Threshold Current: | 60 mA |
| Forward Current: | 700 mA |
| Forward Voltage: | 3.6 V |
| Slope Efficiency: | 0.9 W/A |
| Beam Divergence Parallel: | 12 deg |
| Beam Divergence Perpendicular: | 40 deg |
| Beam Pointing Accuracy: | ±5 deg |
Download Data Sheet
Features
- High-power multimode laser diode
- CW output power of 1000mW at 473nm
- Supplied in a 9mm TO can with Zener Diode
- Suitable for various opto-electronic applications
Applications
- Laser displays
- Laser projection systems
- Biomedical imaging
- Industrial measurements
- Scientific research
Frequently Asked Questions
What applications is the FVLD-473-1000M suitable for?
The FVLD-473-1000M laser diode is suitable for use in various opto-electronic applications.
What is the package size of the FVLD-473-1000M laser diode?
The FVLD-473-1000M laser diode is supplied in a 9mm TO can with Zener Diode.
What is the output power of the FVLD-473-1000M laser diode?
The output power of the FVLD-473-1000M laser diode is 1000mW CW at 473nm.
Does the FVLD-473-1000M laser diode come with any additional components?
Yes, the FVLD-473-1000M laser diode is supplied with a Zener Diode.
What type of laser diode is the FVLD-473-1000M?
The FVLD-473-1000M is a multimode laser diode.
