Description

Experience precision and versatility in industrial marking and micromachining with JenLas® Fiber ns 25 - 105, an advanced nanosecond fiber laser by Jenoptik. This class 4 OEM laser source empowers a wide range of applications, including marking, scribing, laser cleaning, surface structuring, resistor trimming, PCB trace cutting, foil cutting, and thin film ablation. Its robust performance and ease of integration make it a valuable addition to industrial machines.

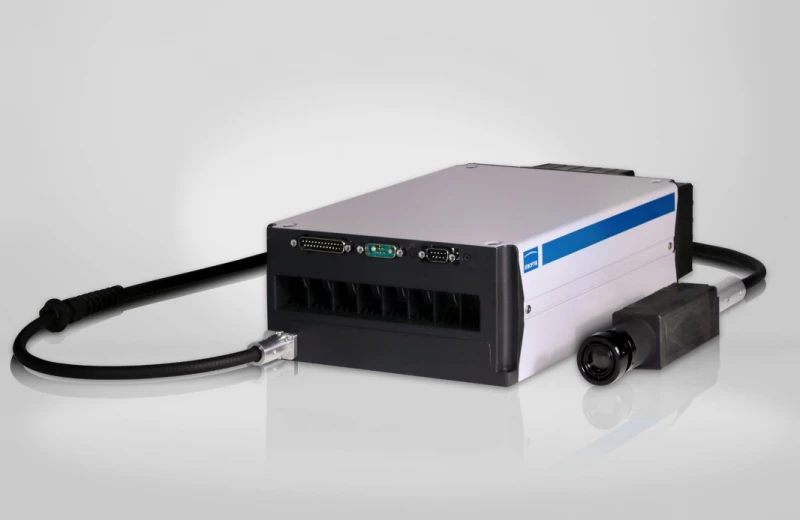

JenLas Fiber ns 35: Nanosecond Fiber Laser

Specifications

Wavelength: 1085 nm
Average Output Power: 30 W
Pulse Duration: 200 – 260 ns
Beam Quality (M^2): 1.6
Max Pulse Repetition Rate: 80 kHz
Pulse Width (FWHM, Typ.): 125 ns
Pulse Energy (max.): 1.0 mJ
Maximum Peak Power: 8.5 kW
Output Power Stability (typ.): ± 2.5 %
Beam Delivery Cable Length: 4 m
Polarization: random
Internal Pilot Laser: 650 nm
Operation Temperature: +15 to +45 °C
Cooling: forced air
Size (L X W X H): 286 x 215 x 95 mm
Weight: 6.5 kg
Laser Head: 24 V / 10.5 A
Laser Controller: 24 V / 1.9 A
Control Interface: RS232, TTL

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Scalable power level from 20W to 100W
  • Rugged industry-proven fiber laser technology
  • Enhanced robustness against backreflection
  • Designed for seamless integration into industrial machines
  • Complete control through software, hardwired, or mixed methods
  • Versatile with add-on parts, from collimation optics to complex optical solutions
  • Includes an on-axis guiding laser for precision applications

Applications

  • Industrial Marking and Scribing of Metals, Plastics, Ceramics
  • Laser Cleaning of Surfaces
  • Generation of Surface Structures
  • Trimming of Resistors and PCB Traces
  • Cutting and Drilling of Thin Foils
  • Thin Film Ablation from Transparent Substrates

Frequently Asked Questions

What is the power range of the JenLas fiber ns series?
The JenLas fiber ns series is available at 25, 35, 55, and 105 watt power levels.
What are the pulse durations of the JenLas fiber ns series?
The pulse durations of the JenLas fiber ns series are 125 – 150 nanoseconds.
How is the JenLas fiber ns powered?
The JenLas fiber ns is powered via a 24V power source.
What are some applications of the JenLas fiber ns?
The JenLas fiber ns can be used for marking, scribing, laser cleaning, generation of surface structures, trimming of resistors and PCB traces, cutting and drilling of thin foils, and thin film ablation from transparent substrates.
Can the JenLas fiber ns be controlled via software?
Yes, the JenLas fiber ns can be controlled via software, a hard-wired connection, or a mixture of both, depending on your integration needs.

Got more questions? Use the inquiry form to ask the supplier directly.
