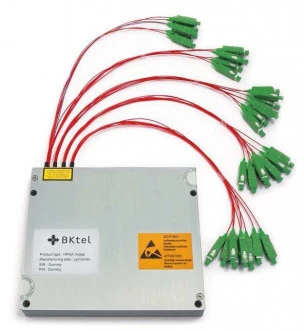

Thumbnail of HPOA-1.5: 1.55 µm High Power Optical Amplifier photo 1

Description

The HPOA-1.5 is a high power fiber optic amplifier from Bktel capable of producing up to 5W of output power between 1540 nm to 1565nm. This series of fiber amplifiers comes available in a standard rack-mount configuration, with input and output ports terminated with your choice of industry standard connectors including SC/APC and FC/APC.

Available either standard single mode or polarization maintaining fiber, the HPOA-1.5 is capable of handling input powers from -10 to 15 dBm and provides 30dB of optical isolation, making sure to protect the seed laser from dangerous back reflections.

In addition to an industry standard RS232 communication interface, this end user fiber amplifier also comes with an optional graphical user interface for more natural control.  With a built-in power supply, this unit runs on standard 100-240 VAC making it the ideal amplifier for high power laboratory applications. All of these features make the HPOA-1.5 series of fiber optic amplifiers a robust tool for applications like LIDAR, free space communications, and many others.

HPOA-1.5: 1.55 µm High Power Optical Amplifier

Visit the RPMC Lasers, Inc. Store

Specifications

Amplifier Type: Not Specified
Wavelength Range: 1540 – 1565 nm
Min Input Power: -10 dBm
Max Output Power: 37 dBm
Nominal Gain: 5 dB
Output Fiber Type: Not Specified
Wavelength: 1540 … 1565 nm
Output Power: Up to 5 W
Input Power Range: -10 … +15 dBm
Noise Figure: <5.5 dB
Polarization: Random / Linear
Stability: <2 %
Optical Isolation: 30 dB
Return Loss: 40 dB
Fiber Termination / Connector: FC/APC, Collimator, others
Power Supply Voltage: +5 / +24 V
Power Consumption: <50 W
Operating Case Temperature: -5 .. 65 °C
Communication Interface: RS-232

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Output Power, up to 5W
  • Compact Package
  • Digital Control System

Applications

  • Telecom
  • Free Space Communication
  • LIDAR

Frequently Asked Questions

What is the HPOA-1.5?
The HPOA-1.5 is a high power fiber optic amplifier capable of producing up to 5W of output power between 1540 nm to 1565nm.
What type of connectors are available for the input and output ports?
The input and output ports are terminated with your choice of industry standard connectors including SC/APC and FC/APC.
What is the optical isolation of the HPOA-1.5?
The HPOA-1.5 provides 30dB of optical isolation, making sure to protect the seed laser from dangerous back reflections.
What are some applications for the HPOA-1.5?
The HPOA-1.5 is a robust tool for applications like LIDAR, free space communications, and many others.
What is the range of input powers that the HPOA-1.5 can handle?
The HPOA-1.5 is capable of handling input powers from -10 to 15 dBm.
