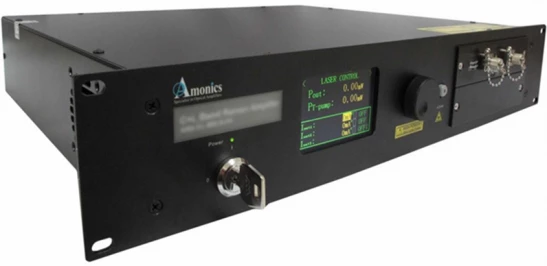

Customized C+L Band Raman Amplifier with Multi-Wavelength Pumping
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
The Customized Raman Amplifier by Amonics is a state-of-the-art high power pump laser source designed for the distributed optical amplification of signals in the C or C+L band. This advanced amplifier is engineered to deliver optimal performance with its multi-wavelength pumping capability, offering either two or four pumping wavelengths to ensure gain-flattened amplification. This feature makes it an ideal choice for various optical applications requiring consistent and reliable signal amplification.
One of the standout aspects of the Amonics Raman Amplifier is its user-friendly design, which comes equipped with a broadband pump and signal combiner. Each channel benefits from individual power monitoring, allowing for precise control and management of the amplification process. Furthermore, the amplifier is available in different configurations to suit specific needs, including benchtop, rackmount casings, and customizable modules, providing flexibility and adaptability for diverse operational environments.
Designed with practicality in mind, the Customized Raman Amplifier operates efficiently within a wide temperature range, making it suitable for various settings. It is also equipped with mechanical safety controls, such as a key-lock switch and BNC interlock key, ensuring safe and secure operation. The amplifier supports remote control via a DB-9 female port with RS232 and optional TCP/IP Ethernet connectivity, enhancing its usability and integration into existing systems. With its robust design and advanced features, the Amonics Raman Amplifier stands out as a reliable and efficient solution for optical signal amplification.
Customized C+L Band Raman Amplifier with Multi-Wavelength Pumping
Specifications |
|
|---|---|
| Amplifier Type: | Raman Amplifier |
| Wavelength Range: | 1400 – 1500 nm |
| Total Pump Power: | 300mW - 1200mW |
Features
- High Power Pump Laser Source: Ideal for distributed optical amplification in the C or C+L band.
- Multi-Wavelength Pumping: Features 2 or 4 pumping wavelengths for gain-flattened amplification.
- Ready-to-Use Design: Equipped with a broadband pump & signal combiner and individual power monitoring for each channel.
- Flexible Casing Options: Available in benchtop, rackmount, and customized modules.
- Wide Operating Wavelength: Ranges from 1400 to 1500nm.
- High Total Pump Power: Typically between 300mW and 1200mW.
- Low Signal Insertion Loss: Typically 0.7dB for efficient performance.
- Advanced Control Mode: Features Automatic Current Control (ACC) for stable operation.
- Temperature Resilient: Operates between 0°C to +40°C and can be stored from -10°C to +70°C.
- Universal Power Supply: Supports 90 – 240VAC, 47 – 63Hz.
- Compact Design: Benchtop dimensions of 260(W) x 330(D) x 120(H) mm, and 2U rackmount dimensions of 485(W) x 515(D) x 90(H) mm.
- Mechanical Safety Features: Includes a key-lock switch and BNC interlock key for secure operation.
- Comprehensive Optical Power Monitoring: Monitors output power and total pump power.
Applications
- Fiber Optic Sensing: Enhances distributed sensing performance in long-haul systems.
- Laboratory Research: Ideal for advanced optical amplification experiments and testing.
- Micro-Machining: Supports high-precision machining processes with stable amplification.
- Marking and Scribing: Enables efficient marking and scribing in photonic manufacturing.
- Optical Network Development: Suitable for gain flattening and distributed amplification in C and C+L band systems.
Frequently Asked Questions
The Amonics Raman Amplifier is a high power pump laser source for distributed optical amplification of optical signals in the C or C+L band.
The Amonics Raman Amplifier features a wide range of wavelength selection, up to 10W output power, turnkey operation, maintenance-free, linear or random polarization, highly reliable and durable, and optional optical feedback protection and back reflection monitoring.
The Amonics Raman Amplifier is used in micro-machining, marking, scribing, fiber optic sensing, and laboratory settings.
The Amonics Raman Amplifier has an operating wavelength of 1400-1500nm, total pump power of 300mW-1200mW, and signal insertion loss of 0.7dB. It operates at a temperature range of 0 to +40°C and has a power supply of VAC 90-240 (47-63Hz).
The ordering information for the Amonics Raman Amplifier includes the product code, which specifies the pump wavelength, pump power, module type (M for module, B for benchtop, R for rackmount), and optical connector (FA for FC/APC, FC for FC/UPC, SA for SC/APC, SC for SC/UPC).
