AEDFA Series Optical Amplifiers for Communication and Laboratory Use
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
Amonics' EDFAs represent a cutting-edge solution in the realm of optical communication, offering unparalleled signal amplification capabilities. Designed with a unique architecture, these devices ensure maximum signal gain and saturated output power while maintaining a low noise figure. This makes them ideal for testing capabilities in both system and component-level manufacturing and characterization processes. Furthermore, they are perfectly suited for highly demanding research and development applications.

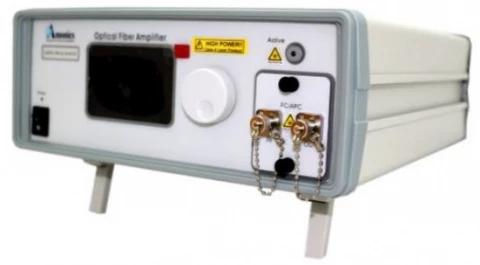

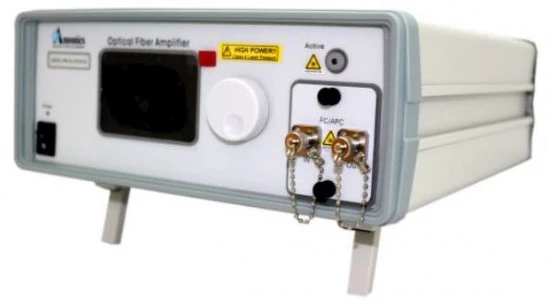

The compact design of Amonics' EDFAs, available in both a benchtop and 19” rackmount unit, ensures ease of integration into any existing setup. The user-friendly front panel is equipped with an LCD monitor display, a key switch, a power control knob, and optical connectors, allowing for straightforward operation and monitoring. The inclusion of an integrated RS232 computer interface facilitates easy control, diagnostic functions, and data acquisition, enhancing the overall user experience.
Manufactured under a HKQAA ISO 9001 certified quality management system, Amonics' EDFAs guarantee reliable performance and long operating life. This certification applies specifically to the production site in Hong Kong, ensuring that each unit meets the highest standards of quality and consistency. With their robust construction and advanced features, these amplifiers are an essential tool for any optical communication system requiring high output power and high gain.
AEDFA Series Optical Amplifiers for Communication and Laboratory Use
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1530 – 1563 nm |
| Nominal Gain: | 30 dB |
| Output Fiber Type: | Other (see Data Sheet) |
Features
- Turnkey Device: Ready-to-use solution for seamless integration.
- RS232/Ethernet Computer Interface: Enables easy control, diagnostic functions, and data acquisition.
- High Output Power: Delivers powerful performance for demanding applications.
- High Gain: Provides significant amplification for input signals.
- Low Noise Figure: Ensures minimal signal distortion and high-quality output.
- Long Operating Life: Built for durability and long-term use.
- Compact Design: Available in benchtop and 19” rackmount units for versatile installation.
- User-Friendly Interface: Features an LCD monitor display, key switch, and power control knob for easy operation.
- Wide Temperature Range: Operates efficiently between 0 to 40°C, with storage capabilities from -10 to 70°C.
- ISO 9001 Certified: Manufactured under a certified quality management system ensuring high standards.
- Safety Controls: Includes a key-lock switch and BNC interlock key for secure operation.
- Remote Control Port: Offers DB-9 female (RS232) and optional RJ-45 (TCPIP/Ethernet) connectivity.
- Protection Features: Includes pump laser (TEC) overheat protection to maintain device integrity.
- Optical Fiber Compatibility: Designed for use with SMF-28 optical fiber.
- Wide Operation Wavelength: Supports 1530nm to 1563nm for various applications.
- Input/Output Isolation: Greater than 30dB to prevent signal interference.
- Polarization Dependent Gain: Typical 0.3dB, maximum 0.5dB for stable performance.
- Polarization Mode Dispersion: Less than 0.3ps to ensure signal integrity.
Applications
- SONET/SDH Systems: Enhances network reach and performance in telecommunications infrastructure.
- Optical Communication: Boosts signal levels for reliable transmission in fiber optic links.
- Pre-Amp, Booster, and In-Line Emulation: Ideal for system testing, prototyping, and component characterization.
- CATV Networks: Amplifies signals in cable television distribution systems.
- Laboratory and R&D: Supports optical experiments requiring precise signal amplification and monitoring.
Frequently Asked Questions
The Amonics EDFA Series is a range of amplifiers that produce maximum signal gain and saturated output power while maintaining low noise figure.
The Amonics EDFA Series is used in optical communications, fiber optic sensing, scientific and industrial applications, and in SONET/SDH systems, CATV, and laboratory settings.
The Amonics EDFA Series is a turnkey device with an RS232/Ethernet computer interface, high output power, high gain, low noise figure, and long operating life.
The general parameters of the AEDFA-PA-30 include an input signal level of -40 to -10dBm, operation temperature of 0 to 40 oC, and storage temperature of -10 to 70 oC.
The polarization dependent gain of the AEDFA-IL-23 is typ. 0.3dB, max. 0.5dB.
