CATV Rack-Mount EDFA Module - AEDFA-CA-13
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
Our CATV Erbium Doped Amplifier (EDFA) is crafted under a HKQAA ISO 9001 certified quality management system, ensuring unparalleled quality and performance. This certification, ISO 9001:2015, specifically applies to our production site in Hong Kong, highlighting our commitment to maintaining high standards in our manufacturing processes. The CATV EDFA is an embodiment of reliability and efficiency, designed to meet the rigorous demands of modern communication networks.

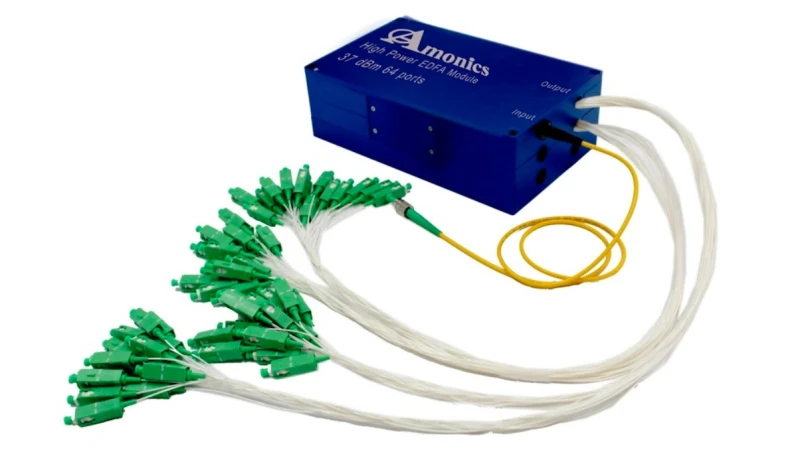

The CATV EDFA inherits the robust design principles of Amonics' optical amplifier technology. It delivers high output power and gain with exceptionally low noise, making it an ideal choice for CATV applications. Available in both rackmount and module formats, our EDFAs offer flexibility to suit various installation environments. The modules are particularly well-suited for OEM system integration, operating on a single +5V power supply and equipped with essential EDFA functions and system integration interfaces.

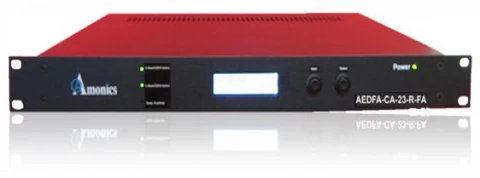

Our rackmount EDFAs are engineered with high-power pump lasers and stability pump combiners, ensuring robust performance in high-power boosting scenarios. These EDFAs feature turnkey microprocessor-controlled systems that manage alarms and status indicators, with integrated RS232 or Ethernet interfaces for straightforward control, diagnostics, and data acquisition. This level of integration and control makes our CATV EDFAs a reliable component in any network infrastructure, offering a small footprint, high output power, and a wide operational range.
CATV Rack-Mount EDFA Module - AEDFA-CA-13
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1535 – 1560 nm |
| Max Output Power: | 13 dBm |
| Output Fiber Type: | SMF-28 |
| Polarization Dependent Gain: | 0.5 dB |
Features
- High Output Power: Delivers up to +36 dBm total output for multi-port configurations.
- Low Noise Figure: Provides typical noise figures as low as 4.5 dB for optimal signal quality.
- Multi-Port Options: Supports up to 64 output ports with consistent high power per port.
- Wide Operating Wavelength Range: Covers 1535 nm to 1565 nm for versatile CATV applications.
- Compact Module Design: Available in small footprint modules ideal for OEM integration.
- Flexible Control Modes: Supports ACC, APC, and optional AGC control for stable output.
- Remote Monitoring Capability: Rackmount units feature RS232 and optional Ethernet interfaces.
- High Reliability: Built with robust pump combiners and high power pump lasers for durability.
Applications
- CATV Networks: Ideal for broadband signal distribution with high stability and low noise.
- SONET/SDH Systems: Enhances optical signal amplification in telecommunications networks.
- LANs and MANs: Supports local and metropolitan area network optical infrastructures.
- Fiber Optic Sensing: Ensures reliable amplification for sensing applications over long distances.
- Laboratory Research: Suitable for advanced photonics testing and educational demonstrations.
Frequently Asked Questions
The Amonics CATV Rack-Mount EDFA Module is a high power pump laser and stability pump combiners that are robust in high power boosting. It is ideal for CATV applications.
The Amonics CATV Rack-Mount EDFA Module has gain flattening filtering, APC or AGC control mode, and output power monitoring.
The Amonics CATV Rack-Mount EDFA Module is ideal for SONET/SDH systems, LANs and MANs, fiber optic sensing, CATV networks, and laboratory use.
The Amonics CATV Rack-Mount EDFA Module is microprocessor controlled and has an integrated RS232 or Ethernet computer interface that enables easy control, diagnostic functions, and data acquisition.
The Amonics CATV Rack-Mount EDFA Module possesses high output power, high gain with very low noise, and is ideal for CATV applications. It also manages alarms and status indicators.
