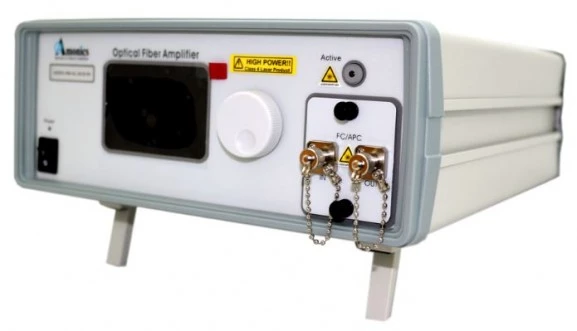

Bench-top Polarization Maintaining EDFA - AEDFAPM- 33
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2014
Description
The Standard Polarization Maintaining EDFA from Amonics is a sophisticated optical amplifier designed to deliver exceptional performance in fiber optic systems. This device is meticulously crafted to maintain a high polarization extinction ratio, ensuring that the signal's polarization is preserved throughout the amplification process. This characteristic makes it an ideal choice for applications that demand high precision and reliability.
Amonics' EDFAs are renowned for their high gain and low noise characteristics, which are critical for enhancing the quality of optical signals. These attributes, combined with the device's ability to maintain signal polarization, make it a valuable asset in fiber optic sensing, high-capacity optical communications, and scientific research in nonlinear fiber optics. The engineering excellence of these amplifiers is backed by a HKQAA ISO 9001 certified quality management system, ensuring consistent performance and reliability.
The product is available in various models, each offering different saturation output powers to cater to diverse operational needs. Amonics continues to invest in intensive product development to maintain its products at the forefront of technical standards. The specifications of the Standard Polarization Maintaining EDFA are designed to meet the evolving demands of the optical communication industry, making it a future-proof solution for advanced optical networks.
Bench-top Polarization Maintaining EDFA - AEDFAPM- 33
Specifications |
|
---|---|
Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
Wavelength Range: | 1540 – 1565 nm |
Max Output Power: | 33 dBm |
Output Fiber Type: | SMF-28 |
Features
- High Polarization Extinction Ratio: Ensures the signal polarization is highly maintained after amplification.
- Turnkey Device: Ready to use with minimal setup required.
- High Output Power: Available in > +18dBm, > +20dBm, and > +23dBm models.
- High Gain: Delivers significant signal amplification.
- Low Noise Figure: Less than 5.5dB, ensuring clear signal quality.
- Long Operating Life: Designed for extended use and reliability.
- Wide Application Range: Ideal for SONET/SDH systems, optical communication, fiber optic sensing, CATV, and laboratory use.
- Flexible Operation Wavelength: Supports wavelengths from 1530nm to 1565nm.
- Robust Construction: Manufactured under HKQAA ISO 9001 certified quality management system.
- Control and Interface: Features keylock switch, optical output power LCD display, RS232 interface, and optional Ethernet connection.
- Comprehensive Protection: Includes pump laser overheat warning.
- Customizable Options: Various optical connectors and output power models available.
Applications
- SONET/SDH Systems: Enhances signal amplification for reliable transmission networks
- Optical Communication: Ideal for high-capacity long-haul and metro optical systems
- Fiber Optic Sensing: Supports precision sensing applications requiring stable
- polarization
- CATV: Suitable for cable TV signal amplification with high reliability
Laboratory: Perfect for advanced optical experiments and R&D setups
Frequently Asked Questions
The Amonics Bench-top Polarization Maintaining EDFA is used for various applications including free space communications, coherent beam combining, and detection system.
The Amonics Bench-top Polarization Maintaining EDFA features input power monitoring, a bench-top or 19” rack-mount housing, and a user-friendly front panel housing with a LCD monitor display, key switch, power adjust control knob and optical connectors. It also has a RS232 or Ethernet computer interface.
The key features of the Standard Polarization Maintaining EDFA include high polarization extinction ratio, turnkey device, high output power, high gain, low noise figure, and long operating life.
The Amonics Bench-top Polarization Maintaining EDFA can be used in SONET/SDH systems, optical communication, fiber optic sensing, CATV, and laboratory settings.
The saturation output power for the AEDFA-PM-18 is > +18dBm, for the AEDFA-PM-20 is > +20dBm, and for the AEDFA-PM-23 is > +23dBm. The input signal level for all three models is -6 to +3dBm, and the operation wavelength is 1530nm to 1565nm. The noise figure for all three models is < 5.5dB, and the input/output isolation is > 30dB. The control mode is ACC, with the option for APC.
